Yamaha Mg10Xu 10-Channel Analog Mixer With Usb Audio Interface

Description

• Description
• Specifications

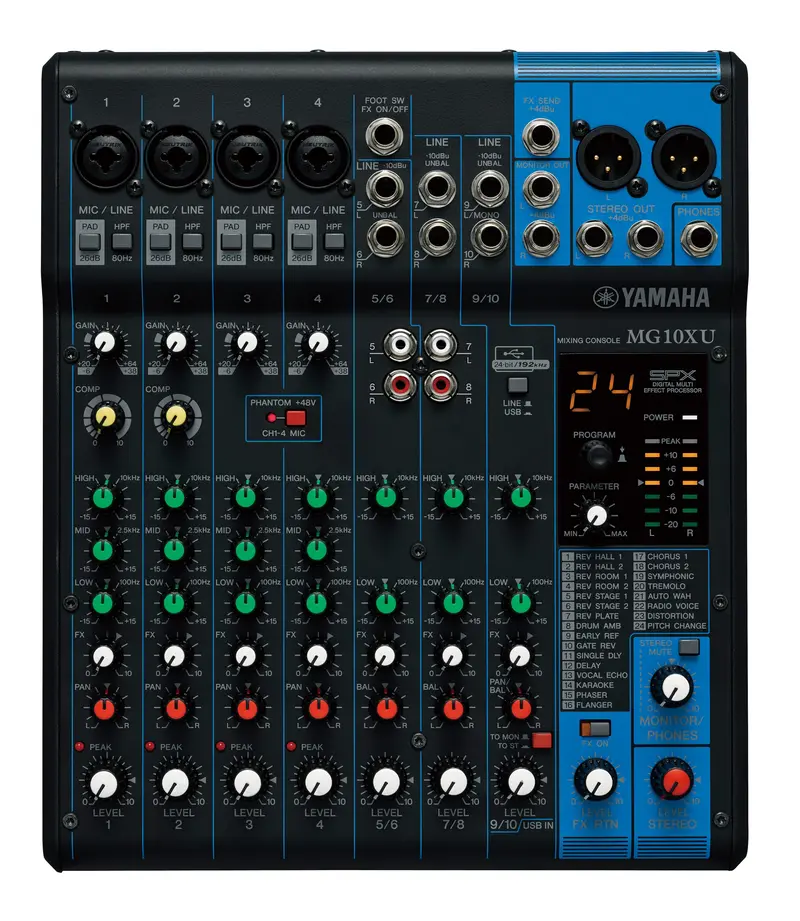

• Yamaha MG10XU | 10-Channel Analog Mixing Console with USB & SPX Effects



  This 10-channel mixing console offers versatile input options, including 4 mic and 10 line inputs (4 mono and 3 stereo), making it ideal for larger audio setups. It features a single stereo bus, 1 AUX (including FX), and high-quality “D-PRE” mic preamps with an inverted Darlington circuit for clear sound capture. The console includes 1-knob compressors for easy dynamic control and SPX effects with 24 programs for creative sound shaping. It also provides 24-bit/192kHz 2in/2out USB audio functions and is compatible with iPad (2 or later) via the Apple iPad Camera Connection Kit or Lightning to USB Camera Adapter. The package includes a download version of Cubase AI DAW software. For professional connectivity, XLR balanced outputs are provided, along with a PAD switch on mono inputs and +48V phantom power. Housed in a durable metal chassis, the console measures 244 mm x 71 mm x 294 mm and weighs 2.1 kg, offering robust build quality and portability.

• Feature	Details
  Channels	10-Channel Mixing Console
  Inputs	4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  Bus	1 Stereo Bus
  AUX	1 AUX (incl. FX)
  Mic Preamps	“D-PRE” mic preamps with inverted Darlington circuit
  Compressors	1-Knob compressors
  Effects	SPX with 24 programs
  USB Audio	24-bit / 192kHz 2in / 2out USB Audio functions
  iPad Compatibility	Works with iPad (2 or later) via Camera Adapter
  Software	Includes Cubase AI DAW software download version
  Mono Input Features	PAD switch on mono inputs
  Phantom Power	+48V phantom power
  Outputs	XLR balanced outputs
  Construction	Metal chassis
  Dimensions (W×H×D)	244 mm x 71 mm x 294 mm (9.6″x 2.8″x 11.6″)
  Weight	2.1 kg (4.63 lbs.)
