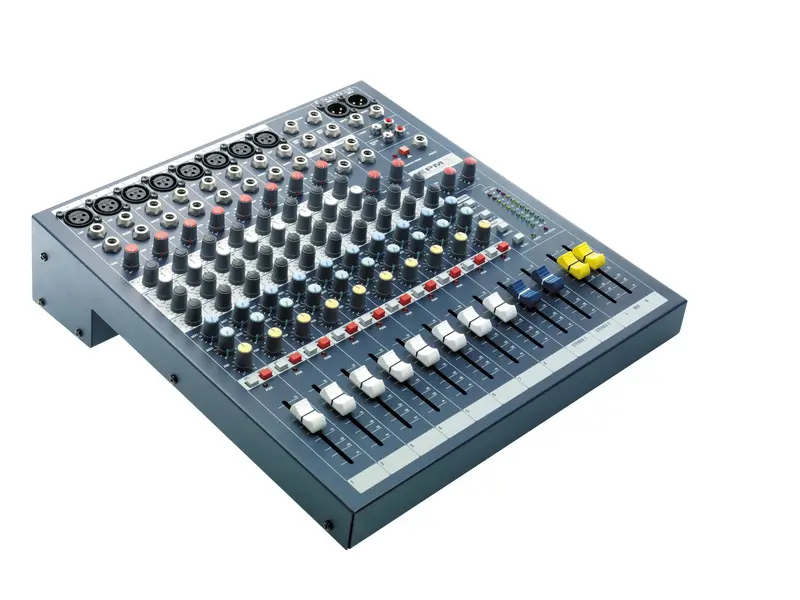

• Soundcraft EPM8 | 8-Channel Analog Mixer with GB30 Mic Preamps & 3-Band EQ

  The emphasis with the Soundcraft EPM is very firmly on quality build and audio performance, with an easy to understand control surface uncluttered by unnecessary facilities, and Soundcraft have brought new technologies and ideas to this very cost-effective range. Surface mount technology is used throughout, using close-tolerance components for high accuracy and repeatable settings for EQ and gain controls. The highly-transparent GB30 Mic amp (designed by Graham Blyth for the company’s 30th anniversary, and also used on the larger LX7ii and GB Series consoles) features high-resolution adjustment over a wide gain range of 55dB, and provides a stunning +22dB headroom through the console. True professional 48-volt phantom power caters for condenser microphones of all types.
  A unique feature of the signal monitoring is the PEAK led. This uses multipoint signal take-offs to watch for overload in several parts of the channel strip, and the led lights more brightly as the signal approaches the peak point. For smooth and accurate channel control, the EPM has 60mm high quality faders as used on other Soundcraft desks. The monitor output and headphone output work in parallel so that performers can still listen on phones while an engineer is listening on studio monitors.
  Features
  2 configurable auxiliary buses
  XLR-type and ¼” metal jack connector sockets
  RCA phono stereo playback inputs and record outputs
  3-band EQ with a swept mid on mono inputs
  2-band EQ on stereo inputs
  TRS insert sockets and inserts on all mono inputs and mix output
  Ten-segment LED output metering
  Intuitive and comprehensive solo system
  Headphone output
  Easily rack mountable
  The Soundcraft EPM will find itself in many applications including live music, recording, houses of worship and multi-speaker installations.

• Feature	Description
  Frequency Response	Mic/Line input to any output: 20Hz to 20kHz ±0.5dB
  THD & Noise	<0.007% (-30dBu Input to Mix, Mic gain 30dB)
  Mic Input EIN	22Hz–22kHz unweighted: -128dBu (150Ω source)
  Bus Noise	Mix at Max, Faders down: <-85dBu
  Crosstalk	Channel Mute: >96dB @1kHz; Fader cut-off: >96dB; Aux Send pot offness: >86dB
  Input Impedances	Mic: 2.4kΩ, Line: 11kΩ, Stereo: 100kΩ
  Output Impedance	75Ω
  Maximum Levels	Mic/Line: +17dBu, Line: +30dBu, Stereo: +30dBu, Mix Out: +20dBu, Headphones (200Ω): 300mW
  EQ (Mono Input)	HF: 12kHz ±15dB (shelving), Mid: 150Hz–3.5kHz ±15dB Q=1.5, LF: 60Hz ±15dB (shelving)
  Metering	12-segment LED bargraphs for Mix L&R outputs
  Operating Temperature	-10ºC to +30ºC
  Operating Humidity	0% to 80%
  Power Supply	Integral lightweight switched-mode PSU, 85V–270V AC, 50/60Hz universal input
  Power Consumption	Less than 20W
  Dimensions	EPM6: 280mm (11”) W × 90.5mm (3.56”) H × 362mm (14.25”) D EPM8: 330mm (13”) W × 90.5mm (3.56”) H × 362mm (14.25”) D EPM12: 432mm (17”) W × 90.5mm (3.56”) H × 362mm (14.25”) D
  Weight	EPM6: 5kg (11.02 lbs) EPM8: 5.6kg (12.34 lbs) EPM12: 6.7kg (14.77 lbs)

• Description	Downloads
  Soundcraft EPM8 Low-Cost High-Performance Mixers | SCR-RW5735UK DataSheet	Download
  Soundcraft EPM8 Low-Cost High-Performance Mixers | SCR-RW5735UK User Manual	Download
