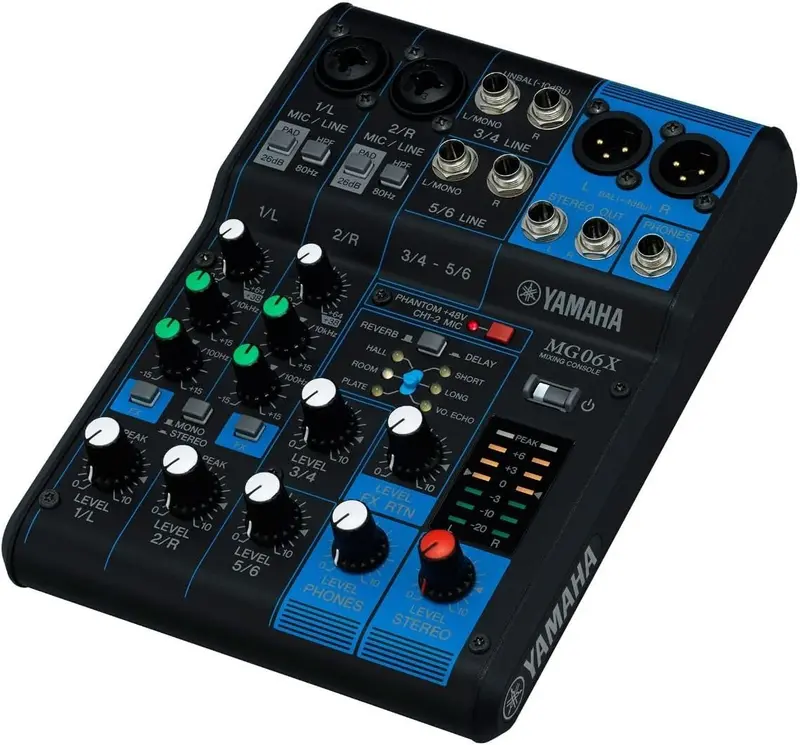

Yamaha Mg06X 6-Channel Compact Analog Mixer For Studio And Live Use

Description

• Description
• Specifications

• Yamaha Audio Mixer 6 Channels Black




  This 6-channel mixing console offers versatile input options, including 2 mic and 6 line inputs (2 mono and 2 stereo), making it ideal for small setups. It features a single stereo bus and high-quality “D-PRE” mic preamps with an inverted Darlington circuit, ensuring clear and detailed sound capture. The console also includes SPX effects with 6 programs for added versatility in sound design. For professional connectivity, XLR balanced outputs are provided. The mono inputs feature a PAD switch, and +48V phantom power is available for condenser microphones. Housed in a durable metal chassis, the console is compact and lightweight, measuring 149 mm x 62 mm x 202 mm and weighing just 0.9 kg, making it portable and easy to integrate into any setup.

• Feature	Details
  Channels	6-Channel Mixing Console
  Inputs	2 Mic / 6 Line Inputs (2 mono + 2 stereo)
  Bus	1 Stereo Bus
  Mic Preamps	“D-PRE” mic preamps with inverted Darlington circuit
  Effects	SPX with 6 programs
  Outputs	XLR balanced outputs
  Mono Input Features	PAD switch on mono inputs
  Phantom Power	+48V phantom power
  Construction	Metal chassis
  Dimensions (W×H×D)	149 mm x 62 mm x 202 mm (5.9″x 2.4″x 7.9″)
  Weight	0.9 kg (1.98 lbs.)
