Roland Vc-1-Sh Sdi To Hdmi Converter With Low-Latency Processing

Description

• Description
• Specifications
• Downloads

• Roland SDI to HDMI Video Converter



  Conversion of video and audio signals from SDI input to HDMI output
  Roland’s new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
  The VC-1 Video Converter series
  The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.




  The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

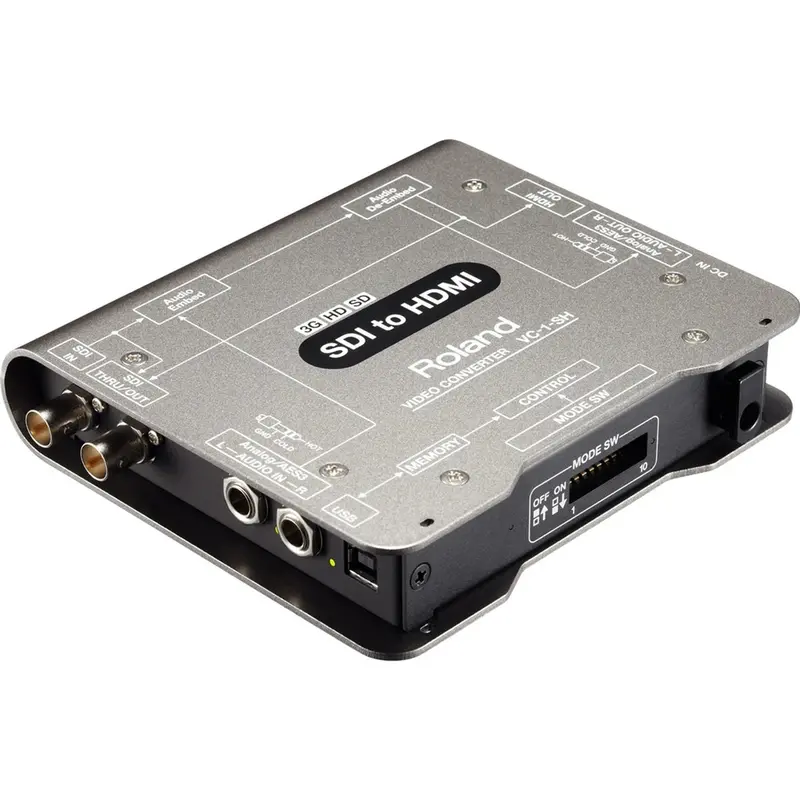

  Roland VC-1-SH
  The cost of SDI monitoring sometimes can be prohibitive for certain applications.  The VC-1-SH converter allows you to convert an SDI signal to HDMI, providing a more cost effective monitoring solution. This converter is also complimentary to the Roland V-40HD multi-format video mixer when you want to use an SDI camera as an input to the mixer.

• Category	Details
  Input SDI Connector	BNC x 1
  Analog Audio Connector	1/4″ TRS (balanced) x 1 pair (L/R)
  Digital Audio Connector	1/4″ TRS (balanced) x 1 (combined with Analog Audio R ch)
  Processing	Audio embedding, Audio de-embedding
  Output SDI Connector	BNC x 1 (Thru/Out)
  HDMI Connector	Type A (19 pins) x 1
  Input/Output Format	SDI/HDMI video and audio formats as specified in SMPTE and CEA standards
  Audio Format	Linear PCM, 24 bits, 48 kHz, 16 ch (SDI), 8 ch (HDMI)
  SDI Output Signal Standards	SMPTE 424M, SMPTE 292M, SMPTE 259M-C
  SDI Output Video Format	1920×1080, 1280×720, 720×487, 720×576 (Conforms to SMPTE and ITU standards)
  HDMI Output Video Format	1920×1080, 1280×720, 720×480, 720×576 (Conforms to CEA standards)
  Audio Input Level	+4dBu
  Analog Audio Maximum Input Level	+24dBu
  Analog Audio Input Impedance	110 ohms
  Analog Audio Output Level	+4dBu
  Analog Audio Output Impedance	600 ohms
  Digital Audio Output Signal Format	AES3, 16/24 bits, 32/48 kHz, 2 ch
  Digital Audio Output Impedance	110 ohms
  USB Connector	USB Type B (Hi-Speed USB) x 1
  Power Supply	DC 9V
  Power Consumption	8W
  Operation Temperature	+0 to +40 degrees Celsius
  Accessories	AC adaptor, Power Cord, Rubber Foot x 4, Owner’s Manual
  Size and Weight	Width: 150 mm, Depth: 130 mm, Height: 30 mm, Weight: 500 g

• Description	Downloads
  Roland SDI to HDMI Video Converter | VC-1-SH Brochure	Downloads
