Roland HDMI to SDI Video Converter
Conversion of video and audio signals from HDMI input to SDI output
Roland’s new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync) and VC-1-SC (Up/Down/Cross Scan converterto/from SDI/HDMI).
The VC-1 Video Converter series
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

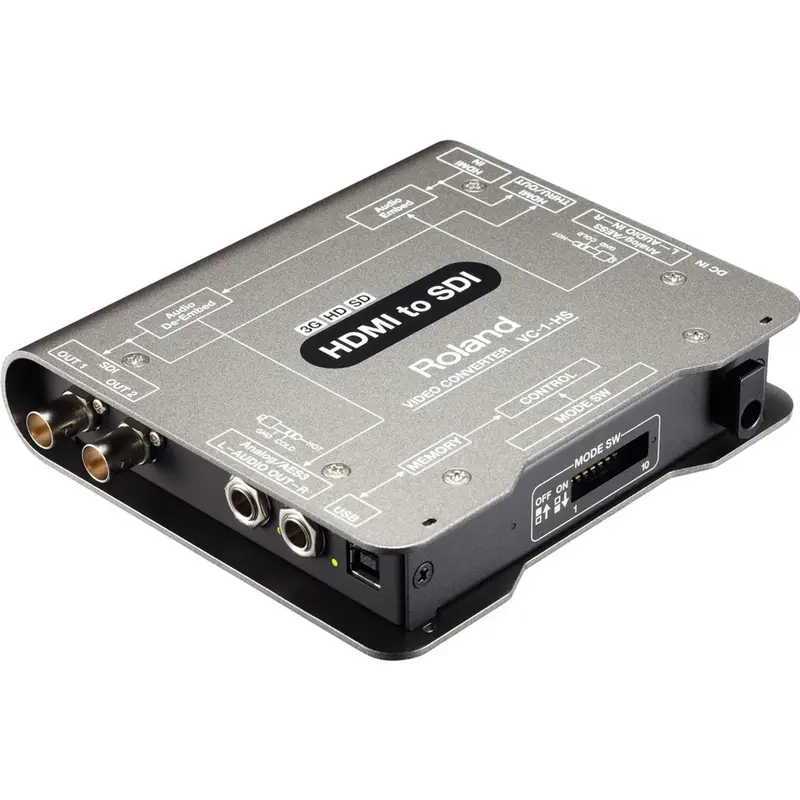

Roland VC-1-HS
Increasingly HDMI video cameras are being used for live production. The VC-1-HS converts, extends and embeds audio from HDMI to SDI. This converter is especially complimentary to the Roland V-1600HD and V-800HD multi-format video mixers when you want to use SDI signals for camera inputs on the mixer. -
Feature Details SDI Connectors BNC type x 2 HDMI Connector Type A (19 pins) x 1 (Thru/Out) Analog Audio Connector 1/4″ TRS (balanced) x 1 pair (L/R) Digital Audio Connector 1/4″ TRS (balanced) x 1 (Combined with Analog Audio R ch Connector) SDI Input Signal Standards SMPTE 424M, SMPTE 292M, SMPTE 259M-C SDI Input Video Format 1920×1080, 1280×720, 720×487, 720×576 (Conforms to SMPTE & ITU standards) Audio Format Linear PCM, 24 bits, 48 kHz, 16 ch (SDI), 8 ch (HDMI) HDMI Input Video Format 1920×1080, 1280×720, 720×480, 720×576 (Conforms to CEA standards) HDMI Input Audio Format Linear PCM, 24 bit, 48 kHz, 8 ch SDI Output Video Format 1920×1080, 1280×720, 720×487, 720×576 (Conforms to SMPTE & ITU standards) HDMI Output Video Format 1920×1080, 1280×720, 720×480, 720×576 (Conforms to CEA standards) Analog Audio Input Level +4dBu Analog Audio Maximum Input Level +24dBu Analog Audio Input Impedance 110 ohms Analog Audio Output Level +4dBu Analog Audio Output Impedance 600 ohms Digital Audio Output Signal Format AES3, 16/24 bits, 32/48 kHz, 2 ch Digital Audio Output Impedance 110 ohms USB Connector USB Type B (Hi-Speed USB) x 1 Power Supply DC 9V Power Consumption 8W Operation Temperature +0 to +40 degrees Celsius Accessories AC adaptor, Power Cord, Rubber Foot x 4, Owner’s Manual Size and Weight Width: 150 mm, Depth: 130 mm, Height: 30 mm, Weight: 500 g (1 lbs. 2 oz.) -
Description Downloads Roland HDMI to SDI Video Converter | VC-1-HS Brochure Downloads
