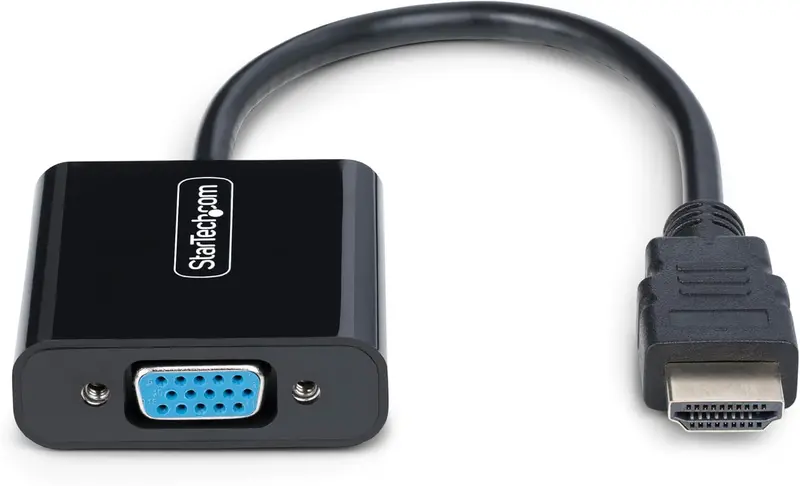

• StarTech HD2VGAE3 Active HDMI to VGA Adapter | 1080p Video Converter for Monitor/Projector

  This active HDMI to VGA adapter converts an HDMI video source to a VGA output, allowing connection to legacy VGA monitors, displays, and projectors.



  No Drivers or Software
  This universal video converter requires no drivers or software and is compatible with any operating system, including Windows, macOS, ChromeOS, and Linux. It works with HDMI-enabled laptops, desktops, tablets, and Chromebooks from all hardware platforms, such as Intel, Nvidia, and AMD. It supports resolutions up to 1920×1200 or 1920×1080 at 60Hz, utilizing the integrated or dedicated GPU for minimal CPU usage.

  No External Power Required
  The adapter reduces clutter and simplifies setup by eliminating the need for an external power adapter or USB power connection. The Adapter has a compact and lightweight design, making it ideal for travel or on-the-go use. This black video adapter features a 5mm cable outer diameter, and a cable length of 5.8 inches (14.7 cm).



  Connect a Primary or Secondary Display
  Connect a primary VGA monitor to the host, or add a secondary extended or mirrored display to a workstation. It supports VGA screw-locking cables to prevent the cable from coming loose or accidentally disconnecting.

  Note: This video adapter is unidirectional, converting only from an HDMI source to a VGA monitor or display.

  Applications
  Connect HDMI-enabled devices such as a laptop, ultrabook, or desktop computer to a VGA projector or display
  Conveniently store in a travel bag to ensure seamless connectivity with VGA devices while on the go

• Category	Attribute	Value
  Warranty	Warranty	3 Years
  Connectors	Input	1 x HDMI
  	Output	1 x VGA (15 pin HD D-Sub)
  Environmental	Operating Temp.	0°C to 70°C (32°F to 158°F)
  	Storage Temp.	-10°C to 80°C (14°F to 176°F)
  	Humidity	0% ~ 75% RH (non-condensing)
  Hardware	Adapter Type	Active
  	AV Input	HDMI
  	AV Output	VGA
  	Audio	No
  	Cable Jacket	PVC
  	Chipset ID	AG6203
  Packaging	Package Size (L×W×H)	5.0 × 5.0 × 1.8 cm (2.0 × 2.0 × 0.7 in)
  	Shipping Weight	53 g (1.9 oz)
  Performance	Max Resolution	1920 x 1200 @ 60Hz
  	Supported Resolutions	Multiple up to 1920×1200 @ 60Hz
  	Widescreen Supported	Yes
  Physical	Product Size (L×W×H)	23.4 × 4.5 × 1.5 cm (9.2 × 1.8 × 0.6 in)
  	Weight	33 g (1.2 oz)
  	Material	Plastic
  	Cable Length	189.5 mm (7.5 in)
  Power	Source	Bus Powered
  Software	OS Compatibility	No drivers or software required
  In the Box	Included	1 x HDMI to VGA Adapter

• Description	Downloads
  StarTech HD2VGAE3 Active HDMI to VGA Adapter | 1080p Video Converter for Monitor/Projector DataSheet	Downloads
