Manhattan Bi-Directional 2-Port Hdmi Switch For 4K@60Hz

Description

• Description
• Specifications
• Downloads

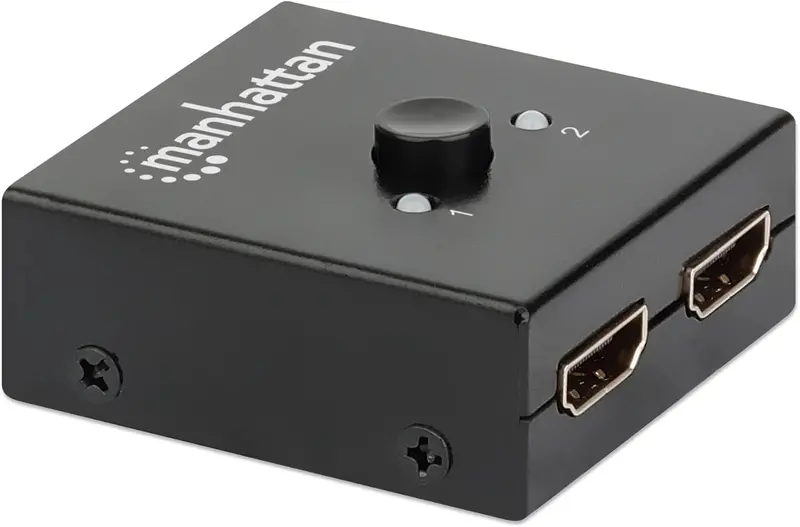

• Manhattan 4K@60Hz Bi-Directional 2-Port HDMI Switch

  Easily share a single Ultra-High-Definition (UHD) signal over two displays or switch between two sources on one display
  The Manhattan 4K Bi-Directional 2-Port HDMI Switch with built-in booster makes it possible to share a 4K HDMI signal from a single UHD source on one of two UHD displays or to connect two UHD sources and switch between them on one UHD display.



  Best Possible Image Quality and Easy Installation
  Full compliance with HDMI and HDCP ensures the Manhattan 4K Bi-Directional 2-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers cinematic 4K resolution and supports 3D video, Deep Color as well as LPCM, DTS and Dolby TrueHD audio. Simply connect the HDMI cables (not included) to the device and create your desired setup. Power is drawn from the HDMI sources to support the signal(s). No software/hardware configuration or complicated settings are required to complete this cost-effective 4K solution.

  Splits an Ultra-High-Definition (UHD) digital audio/video signal to one of two UHD HDMI displays or allows switching between two sources at one display
  4K@60Hz resolution, full 3D video and Deep Color
  Top-mount push-button to switch between sources or displays
  Supports video amplifier bandwidth up to 340 MHz and 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
  Supports 36-bit Deep Color (12-bits per channel) and sYCC Color Space
  Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
  HDCP compliant
  Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers; also works to capture gameplay on screen
  Plug and play
  Gold-plated contacts for corrosion-free connections
  Three-year warranty

• Category	Attribute	Value
  Certifications	Standards	HDCP 2.0, CTS 1.4b, CE, FCC, RoHS
  General	Range	Up to 5 m (16 ft.)
  	Toggle Positions	Up (Port 1), Down (Port 2)
  	Power Consumption	5V
  Connections	HDMI Ports	1x HDMI in/out, 2x HDMI out/in
  Signal I/O	Input Video Signal	0.5 – 1.0 V p-p
  	Input DDC Signal	5V p-p (TTL)
  	Max Resolution	3840×2160@30Hz, 4096×2160@24Hz
  	Output Video	HDMI 2.0
  Video Resolutions	Supported	480i/p, 576i/p, 720p, 1080i/p, 4K@60Hz
  Physical	Indicators	Power, Port Connection
  	Controls	Toggle Button
  	Dimensions	49×52×20 mm (1.9×2.1×0.8 in.)
  	Weight	0.1 kg (0.7 lb.)
  	Housing	Metal
  Environment	Operating Temp	0 – 40°C (32 – 104°F)
  	Storage Temp	-20 – 60°C (-4 – 140°F)
  	Humidity	0 – 96% (noncondensing)
  Package Contents	Included	HDMI Switch, Quick Guide
  Product Variants	4K Model	#207850
  	8K Model	#207997

• Description	Downloads
  Manhattan 4K@60Hz Bi-Directional 2-Port HDMI Switch | 207850 DataSheet	Downloads
  Manhattan 4K@60Hz Bi-Directional 2-Port HDMI Switch | 207850 Quick Instruction Guide	Downloads
  Manhattan 4K@60Hz Bi-Directional 2-Port HDMI Switch | 207850 Quick Installation Guide	Downloads
