Kramer Fc-22Eth Serial-To-Ethernet Control Gateway – 2-Port Rs-232 Interface

Description

• Description
• Specifications
• Downloads

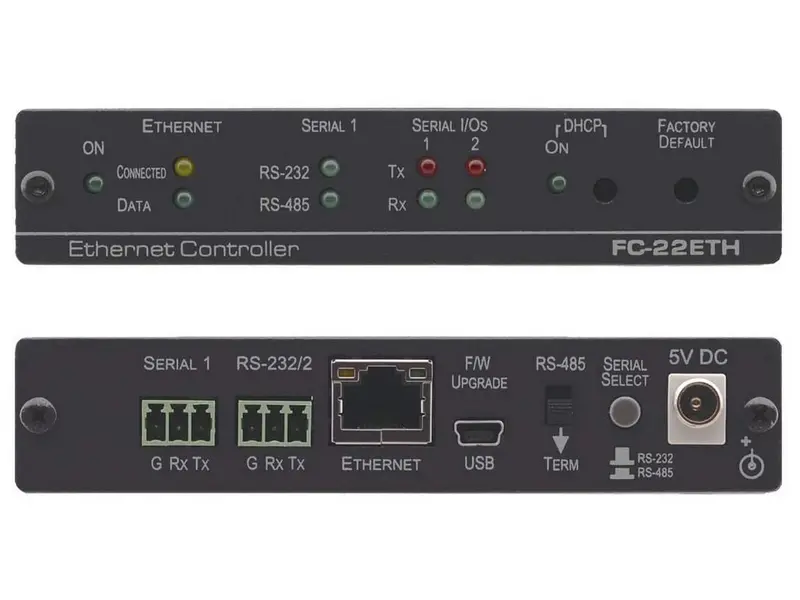

• Kramer 2–port Serial Control Gateway | FC-22ETH

  The FC−22ETH is an Ethernet control gateway, capable of plug and play deployment over customer Ethernet LAN for remote control of customer controlled devices via bidirectional RS−232 or RS−485 serial control connections. Multiple control clients can be IP−connected to the FC−22ETH control gateway for concurrent control of two RS−232 or RS−485 controllable devices, such as AV scalers, video displays, and audio amplifiers.



  Features
  1 RS–485 or RS–232 Selectable Bidirectional Control Port — Controls a device via bi–directional serial control protocols.
  1 RS–232 Bidirectional Control Port — Controls a device via bidirectional RS–232 serial control protocols.
  1 Ethernet Control Port — Remote protocol–based control port.
  Built–in Web Pages — Remote browser–based control and support.
  Simultaneous IP Control Communication — With up to 40 IP control clients.
  Mini USB Port — For firmware upgrades and local technical services.
  Easy Installation — Plug & play IP auto–setup deployment for simple and cost–reducing installation.

  Applications
  Remote IP control of serial controlled devices
  K–Touch multi–clients IP room control
  LAN–based expansion of K–Config control system

• Category	Attribute	Value
  Ports	Serial Ports	1 RS-232/RS-485, 1 RS-232 (3-pin terminal)
  	Ethernet	1 x RJ-45
  	USB	1 x Mini USB (local services)
  Baud Rates	Supported Rates	1200 to 115200 bps
  	Max Data Handling	Up to 150 kbps total
  Controls	Buttons	Serial Select, RS-485 Terminator, DHCP, Reset
  Indicators	LEDs	Power, Ethernet, Serial 1, Serial I/O, DHCP
  Power	Consumption	5V DC, 200mA
  Environmental	Operating Temp.	0° to +40°C (32° to 104°F)
  	Storage Temp.	–40° to +70°C (–40° to 158°F)
  	Humidity	10% to 90% RH (non-condensing)
  	Cooling	Convection
  Physical	Enclosure	Aluminum
  	Dimensions	12 x 7.15 x 2.44 cm (4.72 x 2.81 x 0.96 in)
  	Weight	0.2 kg (0.4 lbs) approx.
  Shipping	Dimensions	49 x 18.6 x 58.8 cm (19.29 x 7.32 x 23.15 in)
  	Weight	0.4 kg (0.9 lbs) approx.
  Compliance	Safety	CE
  	Environmental	RoHS, WEEE
  Accessories	Included	Power adapter
  Durability	Vibration	ISTA 1A (in carton)

• Description	Downloads
  Kramer 2–port Serial Control Gateway | FC-22ETH DataSheet	Downloads
