Startech 4-Port 8K Hdmi 2.1 Switch With Remote And Power Adapter

Description

• Description
• Specifications
• Downloads

• Startech 8K HDMI 2.1 Switch 4-In 1-Out with Remote & Power Adapter | 4PORT-8K-HDMI-SWITCH

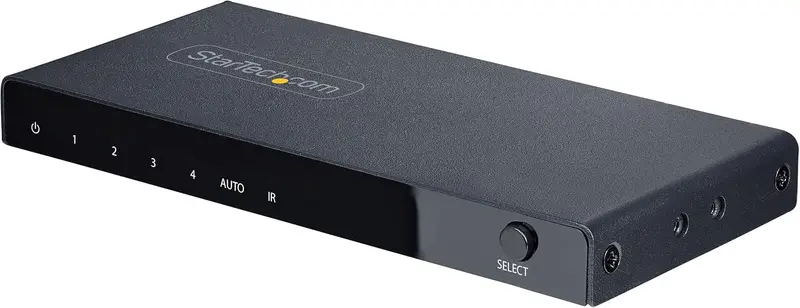

  This 4-Port HDMI Video Switch enables four HDMI sources to connect to a single HDMI input on a display.



  8K 60Hz Resolution
  The HDMI Switcher supports resolutions of up to 8K 60Hz. In addition, it supports lower resolutions at higher refresh rates, such as 4K 144Hz, 4K 120Hz, and 1080p 240Hz.

  This Video Switch is HDMI 2.1 complaint and supports features such as Variable Refresh Rate (VRR), Auto Low-Latency Mode (ALLM), and Consumer Electronics Control (CEC). It is backwards compatible with HDMI 2.0 (and lower) devices.

  Automatic or Manual Operation
  The 8K Video Switch features three options for selecting the source device. Automatic mode detects and selects the most recently activated source device or it will revert to the last active source device. Manual mode selects the desired port, using the push buttons, or with the included remote control (batteries not included). The remote control can enable or disable the automatic switching mode and it can disable the IR functionality.

  Flexible Installation Options
  Use the included USB wall charger and 2.5ft (78cm) USB Micro-B cable to power the unit. If a wall outlet is unavailable, the 8K Switch can be powered through a 5V 1A USB port as well.

  The included mounting kit and rubber feet enable versatile installation options. The metal housing enhances durability, making it suitable for installation and use in a variety of environments.

  This product is backed for 2-years by StarTech.com, including free 24/5 multi-lingual technical assistance.

  Applications
  Use in digital signage applications to display multiple 8K 60Hz source devices at different times
  Ideal for a presentation room setting, enabling users to plug in and automatically switch to the new device
  Connect more source devices to an HDMI display

• Category	Attribute	Value
  Warranty Info	Warranty	2 Years
  Connectors	Input	4x HDMI, 1x USB Micro-B
  	Output	1x HDMI
  Environmental	Operating Temp	0°C to 70°C (32°F to 158°F)
  	Storage Temp	-10°C to 80°C (14°F to 176°F)
  	Humidity	5–90% RH (non-condensing)
  Hardware	AV Input	HDMI
  	AV Output	HDMI
  	Ports	4
  	Audio	Yes
  Indicators	Power LED	1
  	Port LEDs	4
  	Auto Switch LED	1
  	IR Mode LED	1
  Packaging	Length	17.9 cm (7.0 in)
  	Width	12.3 cm (4.8 in)
  	Height	5.1 cm (2.0 in)
  	Shipping Weight	424 g (15.0 oz)
  	Quantity	1
  Performance	Max Cable Distance	5 m (16.4 ft)
  	Resolutions	8K 60Hz, 4K 144Hz/120Hz/60Hz, others
  	Wide Screen	Supported
  Audio	HDMI Audio	7.1 Channel
  Physical	Color	Black
  	Length	13.6 cm (5.4 in)
  	Width	6.1 cm (2.4 in)
  	Height	1.4 cm (0.6 in)
  	Weight	150 g (5.3 oz)
  	Material	Metal
  Power	Source	AC Adapter Included
  	Input Voltage	100 – 240V AC
  	Output Voltage	5V DC
  	Output Current	1A
  	Consumption	5W
  Software	OS Compatibility	No drivers or software required
  Special Notes	HDMI Cables	HDMI 2.1a required for full functionality
  	CEC Feature	Only on Input Port 1
  In the Box	Included	Switch, Remote, Mount Kit, Charger, etc.

• Description	Downloads
  Startech 8K HDMI 2.1 Switch 4-In 1-Out with Remote & Power Adapter | 4PORT-8K-HDMI-SWITCH DataSheet	Downloads
  Startech 8K HDMI 2.1 Switch 4-In 1-Out with Remote & Power Adapter | 4PORT-8K-HDMI-SWITCH Quick Start Guide	Downloads
