Manhattan 207874 3-Port Hdmi Switch – Supports 4K@60Hz Video And Audio Pass-Through

Description

• Description
• Specifications
• Downloads

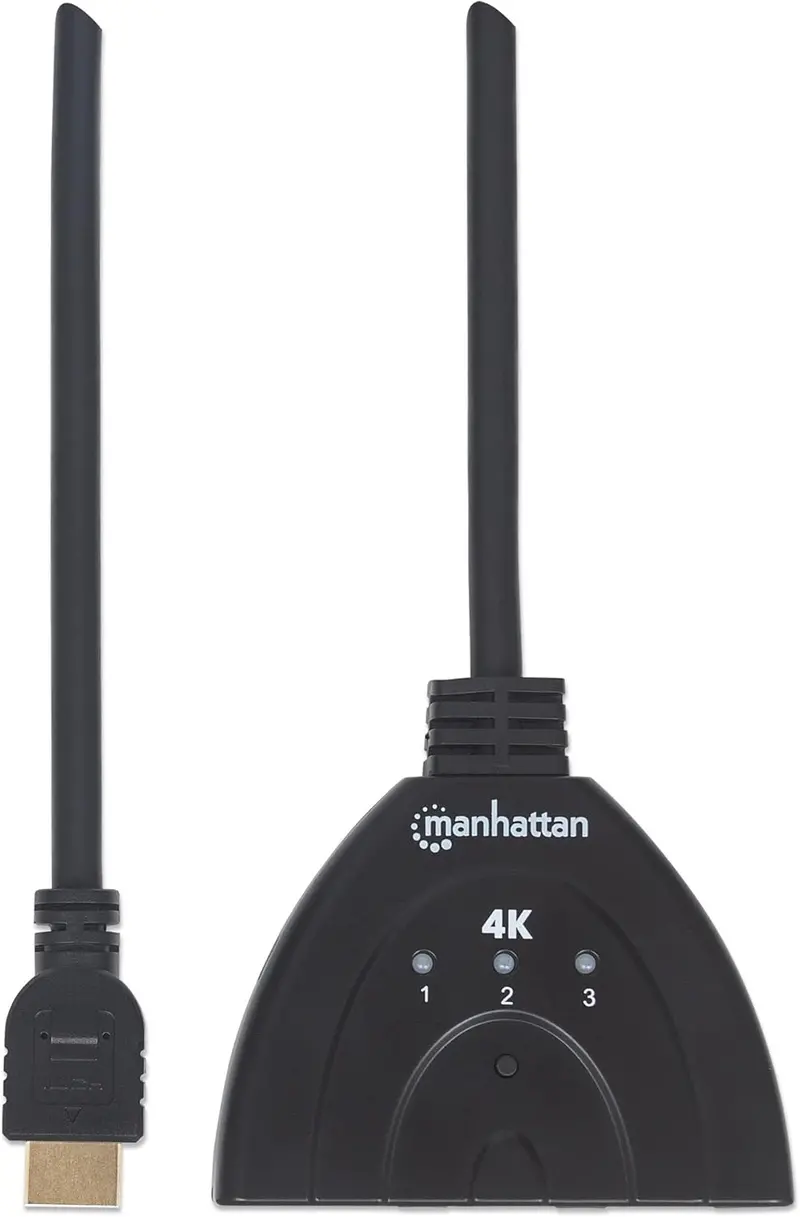

• Manhattan 4K@60Hz 3-Port HDMI Switch | 207874







  Easily connect multiple HDMI sources to a single display.
  The Manhattan 4K 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single Ultra-High-Definition (UHD) display.

  Flexible Solution for Many HD Applications
  With the increased number of high-definition media devices, the Manhattan 4K 3-Port HDMI Switch expands the connectivity options for your UHDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switching button so you can manually select sources when more than one UHD video source is on at the same time.

  Best Possible Image Quality
  Full compliance with HDMI and HDCP 2.2/1.4 ensures the Manhattan 4K 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 4K resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.

  Features
  Connects up to three Ultra-High-Definition (UHD) video sources to a single HDMI display
  Supports automatic switching (when an UHD signal is detected) and manual switching (between sources with the push of a button)
  Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
  Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
  Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8 channel audio
  Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
  HDCP compliant
  Plug and play: no special setup, power or remote required
  Integrated HDMI cable
  Gold-plated contacts for corrosion-free connections
  Three-year warranty

• Category	Attribute	Value
  Standards	Certifications	HDCP 2.2 / 1.4, CE, FCC, RoHS2
  General	Display Range	Up to 10 m (33 ft.)
  	USB Power Cable	0.7 m (2.3 ft.)
  	Power Consumption	2 W
  	Source to Switch Distance	5m: 4K@60Hz (4:4:4, HDR), 10m: 1080p
  Connections	HDMI Output	1 x HDMI male, 19-pin
  	HDMI Inputs	3 x HDMI female, 19-pin
  	Power Input	1 x USB Mini-B, 5-pin
  Signal	Input Video Signal	400 – 600 mV
  	Input DDC Signal	5 V p-p (TTL)
  	Max Range & Resolution	18 Gbps, 4096×2160 @ 60 Hz
  	Output Video	HDMI 2.0, HDCP 2.2
  Supported Resolutions	Video Formats	480i/p, 576i/p, 720p, 1080i/p
  Physical	LED Indicators	Power & port status
  	Dimensions	82 x 61 x 15 mm (3.2 x 2.4 x 0.6 in.)
  	Cable Length	58 cm (20 in.)
  	Weight	0.09 kg (0.2 lb.)
  	Housing	Plastic
  Environment	Operating Temp	0 – 40°C (32 – 104°F)
  	Storage Temp	-20 – 60°C (-4 – 140°F)
  	Humidity	0 – 96% (non-condensing)
  Package	Included	HDMI switch, USB cable, Quick Guide

• Description	Downloads
  Manhattan 4K@60Hz 3-Port HDMI Switch | 207874 Quick Instruction Guide	Downloads
