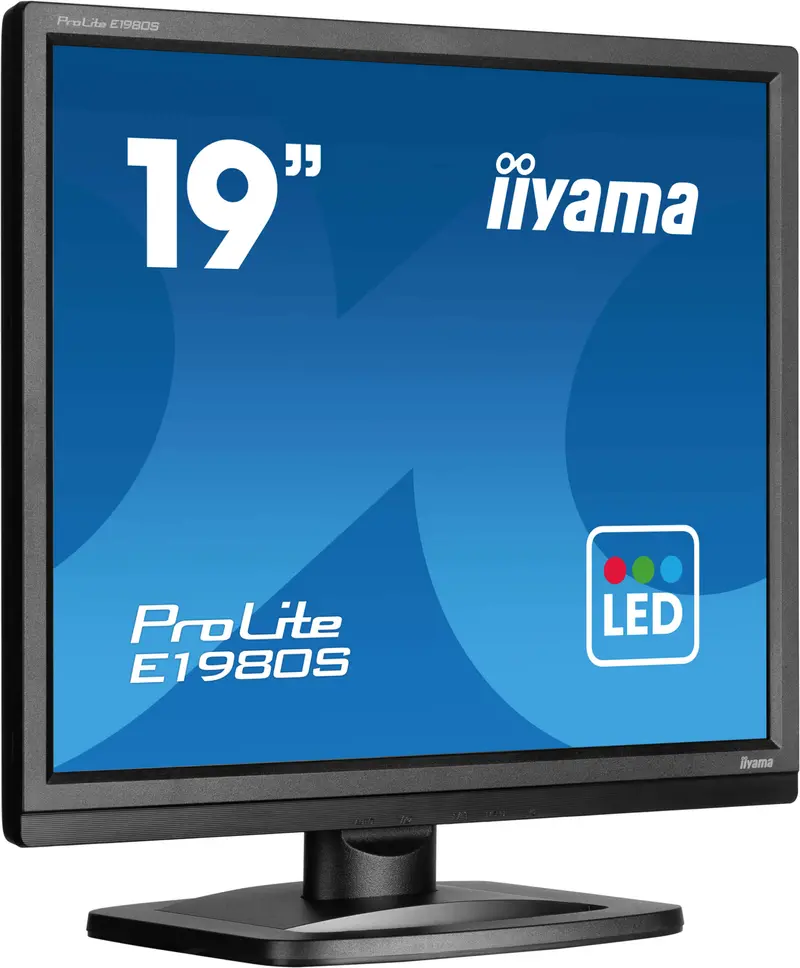

• iiyama ProLite E1980S-B1 19″ 75Hz 3ms SXGA LED-Backlit Monitor

  The 19’’ ProLite E1980S is an LED-backlit monitor featuring a good response time, high contrast, as well as sRGB and gamma correction functions that allow even the finest colour nuances to be adjusted with precision. Additionally, this monitor comes equipped with integrated speakers.



• Category	Details
  Diagonal	19″, 48cm
  Panel	TN
  Native Resolution	1280 x 1024 @75Hz (1.3 megapixel)
  Aspect Ratio	5:4
  Panel Brightness	250 cd/m²
  Static Contrast	1000:1
  Advanced Contrast	12M:1
  Response Time (GTG)	3ms
  Viewing Zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
  Colour Support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	30 – 80kHz
  Viewable Area W x H	376.32 x 301.05mm, 14.8 x 11.9″
  Pixel Pitch	0.294mm
  Colour	matte, black
  Interfaces / Connectors / Controls	HDMI x1, DisplayPort x1, HDCP supported
  Features	OSD languages (EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL), Speakers 2 x 2W, Control buttons
  Mechanical	Display position adjustments: tilt, Tilt angle: 21° up, 4° down, VESA mounting 100 x 100mm
  Accessories Included	Power cable, HDMI cable, quick start guide, safety guide
  Power Management	Internal power supply, AC 100 – 240V, 50/60Hz, Power usage: 12W typical, 0.5W stand by, 0.3W off mode
  Sustainability	CE, TÜV-GS, RoHS support, ErP, WEEE, REACH, UKCA, Energy efficiency class D, EPEAT, REACH SVHC above 0.1%: Lead
  Dimensions / Weight	Product dimensions: 411 x 402 x 204.5mm, Box dimensions: 474 x 427 x 122mm, Weight (without box): 3.1kg, Weight (with box): 4.1kg
  EAN Code	4948570125418

• Document	Download Link
  User Manual	Downloads
  Technical Specification	Downloads
  Drawing	Downloads
  UK Energy Label	Downloads
