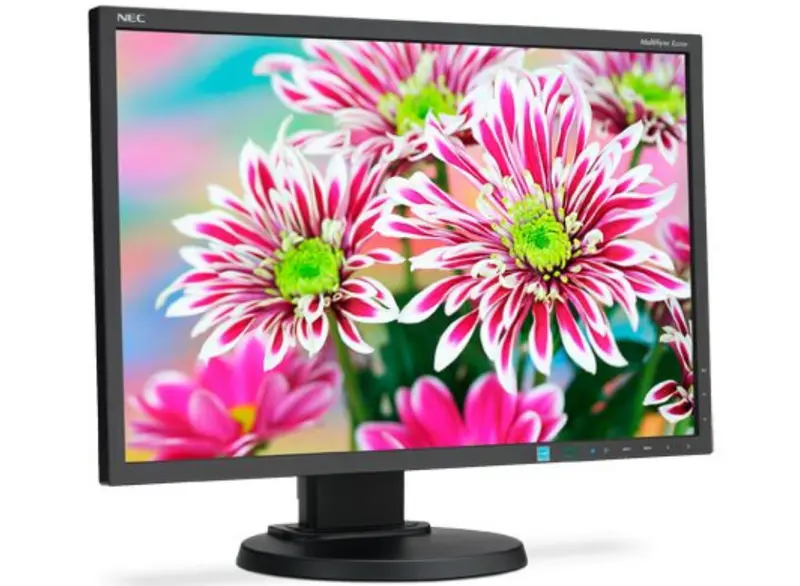

• NEC 22″ 5ms TN Panel Led Backlit Widescreen Desktop Monitor

  The 22″ NEC MultiSync E223W delivers the latest in display technologies, while providing many eco-friendly benefits for corporate users. The LED backlighting of the E223W allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. It offers touch-sensitive controls that are integrated into the bezel, making display adjustments easier and more intuitive than ever. A comprehensive input panel, including DisplayPort, DVI-D and VGA, connects users to the latest peripherals and future-proofs the investment.



  ECO Mode™ function helps save power, reduce heat and extend the life of the display by allowing you to dim the backlight

  Intelligent Power Manager (IPM) system and off timer provide innovative power-saving methods and reduce CO2 emissions by shifting to a lower power consumption level or automatically powering down when the monitor is on but not in use

  Carbon footprint meter helps track and calculate the reduction of green gas emissions

  Compact packaging helps reduce paper usage, shipping costs and waste

  4-way ergonomic design (height-adjust, pivot, tilt & swivel) enhances your viewing comfort



  Dynamic Visual Mode enhances video and images with real-time optimization of brightness, color
  and contrast

  Touch sensitive OSD controls allows for intuitive screen adjustments

  NaViSet Administrator 2: Free software solution that greatly eases administration and management of larger display device installations

• Category	Specification
  Panel Technology	TN
  Viewable Image Size	22″
  Aspect Ratio	16:10
  Screen Resolution	1680×1050
  Pixel Pitch	0.28 mm
  Pixels Per Inch	90 @ native resolution
  Backlight Type	W-LED
  Brightness (typical)	250 cd/m²
  Contrast Ratio (typical)	1000:1
  Viewing Angle (typical)	178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR > 5
  Response Time (typical)	5 ms
  Displayable Colors	More than 16.7 million
  Synchronization Range
  – Horizontal (Analog/Digital)	31.5-82.3 kHz
  – Vertical	56-75 Hz
  Input Terminals	DVI-D, VGA 15-pin D-sub, DisplayPort
  Power Consumption (typical)
  – On	24W
  – Power Savings Mode	0.35 W
  Dimensions (WxHxD)
  – With stand	19.8 x 15.1-19.4 x 8.4 in. / 503.5 x 383.3-493.3 x 213.9 mm
  – Without stand	19.8 x 13 x 2.4 in. / 503.5 x 329.7 x 60.5 mm
  Weight
  – Net (with stand)	10.8 lbs. / 4.9 kg
  – Net (without stand)	7.1 lbs. / 3.2 kg
  VESA Hole Configuration	100 x 100 mm
  Environmental Conditions
  – Operating Temperature	41-95°F / 5-35°C
  – Operating Humidity	20-80%
  – Operating Altitude	6562 ft. / 2000m
  – Storage Temperature	14-140°F / -10-60°C
  – Storage Humidity	10-85%
  – Storage Altitude	40,000 ft. / 12,192m
  Environmental Compliance
  – ENERGY STAR	7.0
  – RoHS	Yes
  – TCO	7.0
  Limited Warranty	3 years (parts & labor)
  Additional Features	ECO Mode, Carbon footprint meter, Thin frame, Tilt, Swivel, Pivot, Height-adjustable stand
  	Carrying handle, Rapid Response, Ambix, XtraView, OSD user controls, NaViKey
  	NaViSet software, Cable management, VESA mount, HDMI-capable via DVI adapter
  	HDCP, DDC/CI, No Touch Auto Adjust, Plug and Play (VESA DDC 1/2B), VESA DPMS power mgmt.
  	AccuColor color control, Digital smoothing, Digital controls, ISO 13406-2 Class II

• Description	Downloads
  Mechanical Drawing	Downloads
  User Manual	Downloads
