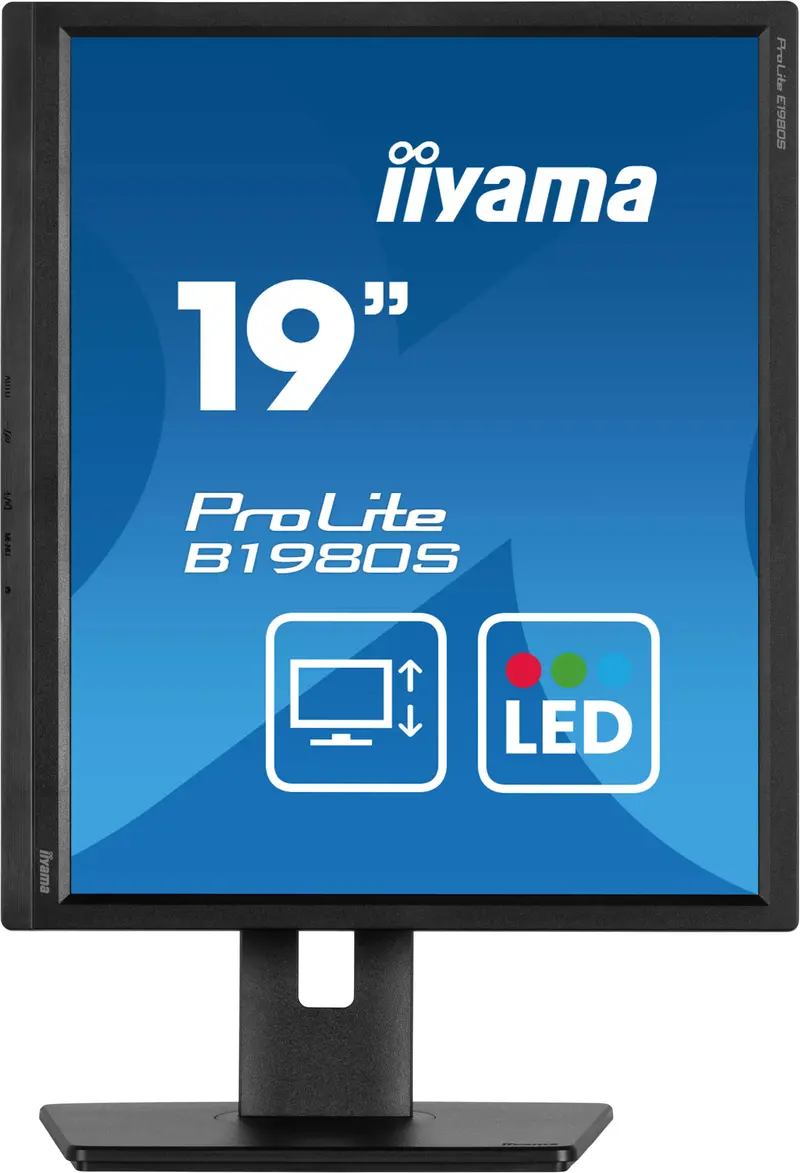

• iiyama ProLite B1980S-B1 19″ 75Hz 3ms LED-Backlit Monitor

  The 19’’ Prolite B1980S, designed for business, is an impressive LED-backlit monitor with a height adjustable stand

  Designed for business, this LED-backlit monitor features 150mm height adjustability and screen rotation, allowing you to position the screen perfectly for ergonomic posture and optimal viewing comfort. With a 3ms response time and high contrast, the B1980S is ideal for a wide range of business applications. sRGB and gamma correction functions ensure precise adjustment of even the finest color nuances. Additionally, the monitor is equipped with integrated speakers for added convenience.



• :

  Category	Details
  DISPLAY CHARACTERISTICS
  Diagonal	19″, 48cm
  Panel	TN
  Native resolution	1280 x 1024 @75Hz (1.3 megapixel)
  Aspect ratio	5:4
  Panel brightness	250 cd/m²
  Static contrast	1000:1
  Advanced contrast	12M:1
  Response time (GTG)	3ms
  Viewing zone	horizontal/vertical: 170°/160°, right/left: 85°/85°, up/down: 80°/80°
  Colour support	16.7mln (sRGB: 99%; NTSC: 72%)
  Horizontal Sync	30 – 80kHz
  Viewable area W x H	376.32 x 301.05mm, 14.8 x 11.9″
  Pixel pitch	0.294mm
  Colour	matte, black
  INTERFACES / CONNECTORS / CONTROLS
  Signal input	HDMI x1, DisplayPort x1
  HDCP	yes
  FEATURES
  OSD languages	EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
  Control buttons	Power, Menu, + / Volume, -/ Eco, Signal Select (Auto)
  User controls	Various adjustments including picture, image setup, colour settings, audio settings, OSD settings, extra
  Speakers	2 x 2W
  Convenience	Kensington-lock™ prepared, DDC2B, Mac OSX
  MECHANICAL
  Display position adjustments	height, swivel, tilt, pivot (rotation both sides)
  Height adjustment	150mm
  Rotation (PIVOT function)	90°
  Swivel stand	120°; 60° left; 60° right
  Tilt angle	23° up; 5° down
  VESA mounting	100 x 100mm
  Cable management system	yes
  ACCESSORIES INCLUDED
  Cables	power, HDMI
  Other	quick start guide, safety guide
  POWER MANAGEMENT
  Power supply unit	internal
  Power supply	AC 100 – 240V, 50/60Hz
  Power usage	12W typical, 0.5W stand by, 0.3W off mode
  SUSTAINABILITY
  Regulations	CE, TÜV-GS, RoHS support, ErP, WEEE, REACH, UKCA
  Energy efficiency class	D
  REACH SVHC	above 0.1%: Lead
  DIMENSIONS / WEIGHT
  Product dimensions W x H x D	411 x 453 (603) x 245.5mm
  Box dimensions W x H x D	490 x 416 x 162mm
  Weight (without box)	4.5kg
  Weight (with box)	5.6kg
  EAN code	4948570125425

• Description	Downloads
  User Manual	Downloads
  Technical specification	Downloads
  Drawing	Downloads
  UK Energy Label	Downloads
