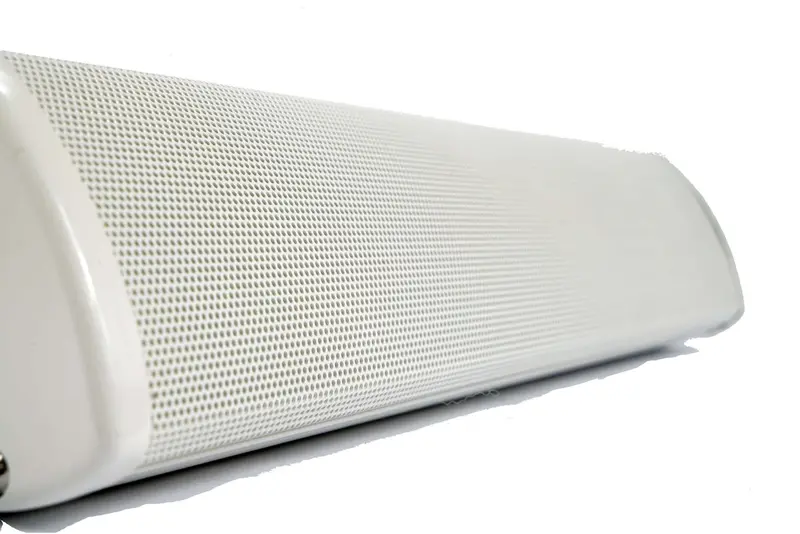

TOA TZ-30-EB | 30W Slim Metal Column Speaker, IP55 Weatherproof
Slim Metal Column Speakers
The Metal column speaker TZ-30-EB is highly efficient compact speaker that deliver excellent sound
performance in medium sized venues such as houses of worship, gymnasiums, auditoriums and more.
The weatherproof range of TZ-30-EB metal column speaker has attained a rating of IP-55.
They are capable of withstanding weather conditions in outdoor installations.
Narrow sound dispersion along a vertical axis, wide sound dispersion along a horizontal axis
Weatherproof metal body meets IP55 requirements
Speakers coming complete with wall mounting brackets -
Frequency Response 150 Hz – 20 kHz Sensitivity (1 W, 1 m) 90 dB Tappings (100 V) 100V line: 333Ω (30W), 667Ω (15W), 1.3kΩ (7.5W)
8Ω line: 8Ω (30W)Speaker Component 5.3 cm (2”) × 4 pcs cone-type, 5.1 cm (2”) × 1 pcs cone-type Operating Temperature -20°C to +55°C (-4°F to 131°F) Finish Aluminium, traffic white (RAL 9016 or equivalent) Dimensions (W x H x D) 74.5 x 403 x 69 mm Weight 1.74 kg Dust / Water Protection IP-55 -
Description Downloads TOA Slim Metal Column Speakers | TZ-30-EB DataSheet Download
