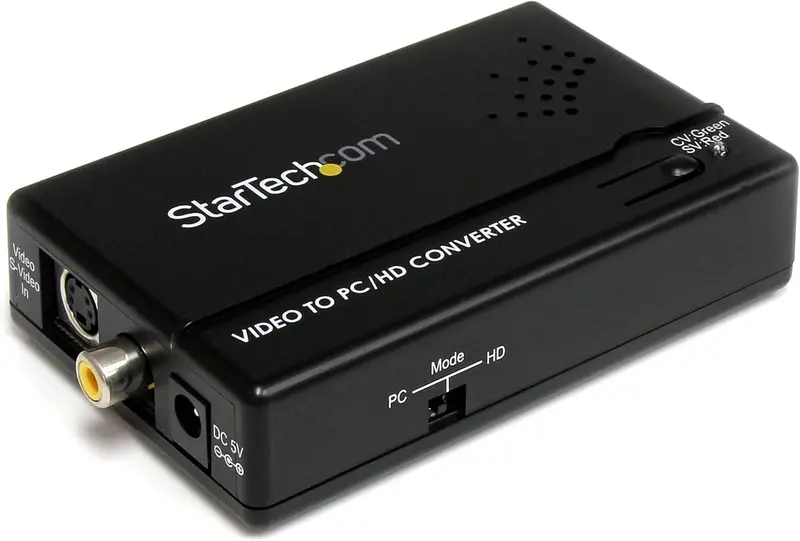

StarTech Composite and S-Video to VGA Video Scan Converter
The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets.
Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector.
Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Perfect for displaying video from DVD players, VCRs or legacy Game Consoles on VGA projectors and HDTV sets
Display camcorder output on televisions or monitors equipped with VGA input
Monitor security cameras with S-Video or composite signaling using VGA monitors or televisions
Adapt VHS video in the classroom to newer televisions
Convert legacy Medical Imaging equipment for display on computer monitors
Use in boardrooms for adapting legacy video equipment to work with new projectors
The StarTech.com Advantage
Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution -
Specifications Warranty Information Warranty 2 Years Connector(s) Connector A 1 – Composite Video (1 x RCA), 1 – S-Video (4 pin, Mini-DIN) Connector B 1 – VGA (15 pin, High Density D-Sub) Environmental Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature 0°C to 60°C (32°F to 140°F) Humidity 0~60% RH Hardware Active or Passive Adapter Active AV Input Composite, S-Video AV Output VGA, Component Audio No Indicators LED Indicators 1 – Composite (Yellow) / S-Video (Red) input indicator Packaging Information Package Height 2.4 in [6.0 cm] Package Length 8.2 in [20.8 cm] Shipping (Package) Weight 15.8 oz [448.0 g] Package Width 4.6 in [11.8 cm] Package Quantity 1 Performance Supported Resolutions PC: 1600×1200, 1280×1024, 1024×768; HDTV: 480p (50/60Hz), 576p (50Hz), 720p (50/60Hz), 1080p (50/60Hz) Signal Levels Input: Video @ 1V p-p, 75 ohm; Y @ 1 V p-p, 75 ohm; Color @ 0.7V p-p, 75 ohm Physical Characteristics Weight of Product 3.0 oz [86 g] Color Black Material Plastic Product Length 4.4 in [11.2 cm] Product Width 2.5 in [6.4 cm] Product Height 1.0 in [2.6 cm] Power Power Source AC Adapter Included Output Voltage 5 DC Output Current 1A Power Consumption (In Watts) 2.5 What’s in the Box Included in Package 1 – Video Converter/Scaler, 1 – VGA to Component (RCA) breakout cable, 1 – Universal Power Adapter, 1 – Instruction Manual -
Description Downloads StarTech Composite and S-Video to VGA Video Scan Converter | VID2VGATV2 DataSheet Downloads StarTech Composite and S-Video to VGA Video Scan Converter | VID2VGATV2 Instruction Manual Downloads
