Datavideo Sdi To Vga Converter For Broadcast Applications

Description

• Description
• Specifications
• Downloads

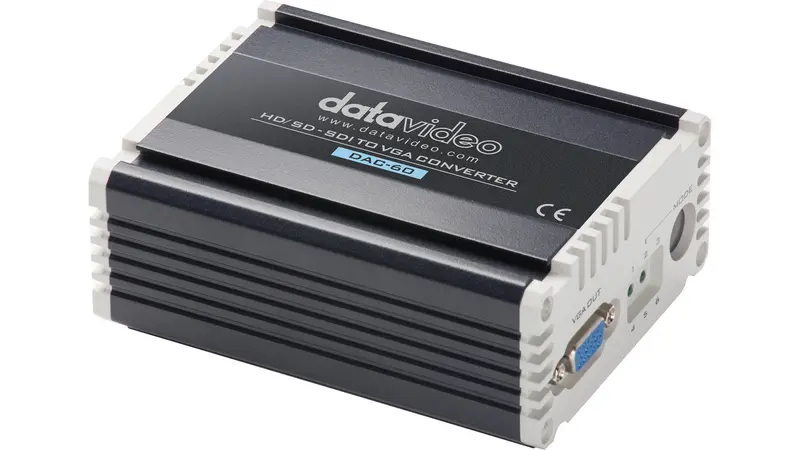

• DataVideo SDI to VGA Converter



  Wide Range Conversion for Great Compatibility
  The DAC-60 supports 3G/HD/SD-SDI to VGA conversion, suits projector and LCD screen display really well.
  Independent SDI loop through
  SDI loop through is unaffected by the adjustments of resolution setting to the VGA signal, users can connect the original video signal to other terminal device.




  Aluminum Alloy and Heavy Duty Design
  Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

• Feature	Description
  Model Number	DAC-60
  Conversion	3G/HD/SD-SDI to VGA
  Video Inputs	1x 3G/HD/SD-SDI
  Loop Through	Yes
  Video Outputs	1x VGA
  Audio Inputs	—-
  Audio Outputs	—-
  Audio Format Selection	—-
  Audio Gain	—-
  Supported Video Input Formats	1080p, 1080i, 720p, 576i, 480i
  Output Resolutions	1920×1200, 1920×1080, 1600×1200, 1400×1050, 1366×768, 1280×1024, 1280×800, 1024×768, 800×600
  Equalizer	Yes
  Reclock	Yes
  SDI Cable Drive	Yes
  Updates and Configuration	Mini USB x 1
  Dimension (LxWxH)	112 x 85 x 45 mm
  Weight	0.4 kg
  Operating Temp. Range	0~40 °C
  Power	DC 12V, 3.6W
  What’s in the Box	1 x DAC-60 product, 1 x AD Switch DC 12V

• Description	Downloads
  DataVideo SDI to VGA Converter | DAC-60 Instruction Manual	Downloads
