Startech Composite and S-Video to HDMI Converter with Audio – TAA

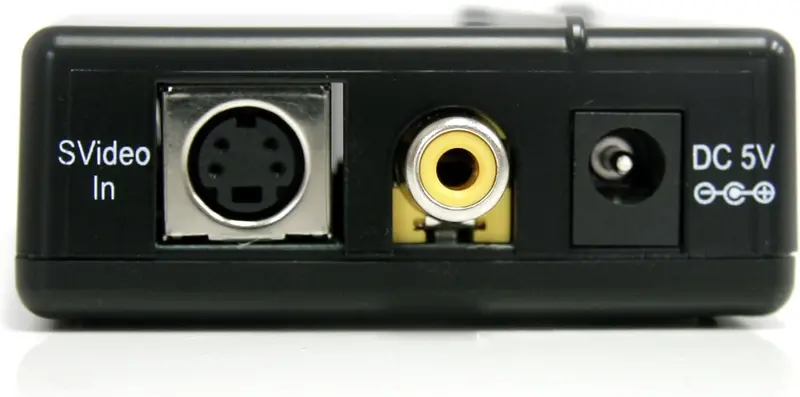

The VID2HDCON Composite and S-Video to HDMI® Video Converter (with Audio) lets you connect an S-Video or Composite device, along with supporting 3.5mm audio, to your HDMI monitor or television.
Equipped with convenient selector switches for easy configuration, the S-Video/Composite to HDMI converter is able to function with both NTSC and PAL systems, and offers support for output resolutions up to 1600×1200 (PC) or 1080p (TV) to seamlessly integrate with almost any display.
The converter features an integrated 3.5mm audio connection that enables sending the output through a single HDMI cable to your destination display, avoiding the hassle of running a separate audio cable.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
Applications
Convert VCRs, DVD players, camcorders, video game consoles and other home theater devices to work on HDMI displays
The StarTech.com Advantage
Support for output resolutions from 480i to 1080p allow for simple conversion to suit almost any output display
Pure hardware design requiring no software or drivers for use which makes for a quick plug-and-play installation -
Specification Details Warranty 2 Years Connector Type(s) 1 – 3.5 mm Mini-Jack, 1 – Composite Video, 1 – HDMI, 1 – S-Video Operating Temperature 0°C to 40°C (32°F to 104°F) Storage Temperature -20°C to 60°C (-4°F to 140°F) Humidity 20~90% RH Active or Passive Adapter Active AV Input Composite, S-Video, 3.5 mm Stereo Audio AV Output HDMI Audio Yes Industry Standards NTSC 3.58 and PAL LED Indicators Red – S-Video, Yellow – Composite Video Package Height 2.3 in [5.8 cm] Package Length 6.0 in [15.2 cm] Shipping Weight 11.3 oz [320.0 g] Package Width 4.8 in [12.2 cm] Package Quantity 1 Supported Resolutions PC: 1600×1200, 1280×1024, 1024×768; TV: 1080p, 720p, 576p, 480p Weight of Product 3.0 oz [84.0 g] Color Black Material Plastic Product Length 3.9 in [10.0 cm] Product Width 2.5 in [6.4 cm] Product Height 1.0 in [2.5 cm] Power Source AC Adapter Included Input Voltage 100 – 240 AC Input Current 0.3A Output Voltage 5 DC Output Current 1.2A Center Tip Polarity Positive Plug Type M Power Consumption 2.5 W Included in Package 1 – Composite/S-Video to HDMI Converter, 1 – Universal Power Adapter, 1 – Instruction Manual -
Description Downloads Startech Composite and S-Video to HDMI Converter with Audio – TAA | VID2HDCON Datasheet Downloads Startech Composite and S-Video to HDMI Converter with Audio – TAA | VID2HDCON Instruction Manual Downloads Startech Composite and S-Video to HDMI Converter with Audio – TAA | VID2HDCON Diagram Downloads
