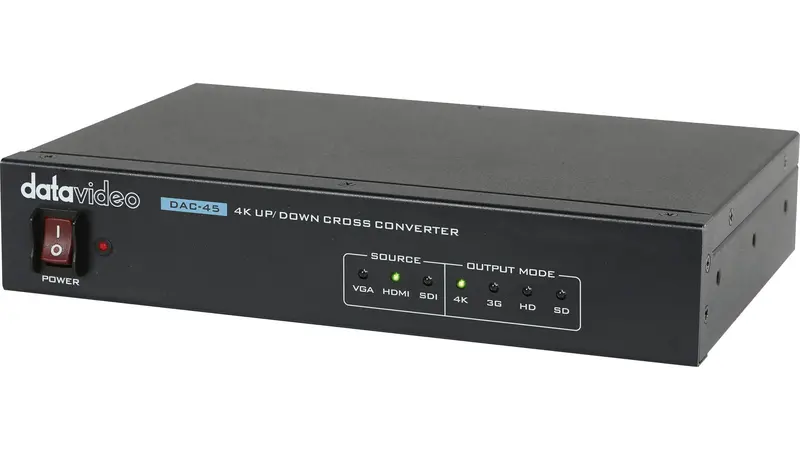

• DataVideo 4K Up/Down Cross Converter




  4K Up Conversion
  With built-in super resolution engine, users can now up-convert from SD 480 resolution all the way to 4K resolution with excellent image quality and sharpness.
  External audio embedding.
  RCA inputs allow audio to be embedded to the output of the video signal.



  Supports 3G-SDI Level A/B
  With the 3G-SDI system, it supports both 3G-SDI Level A/B input.
  Wide range conversion for great compatibility
  Supports VGA/HDMI/SDI to 4K HDMI/3G-SDI multi-format up/down/cross conversion.
  Built-in De-interlacer and Interlacer (I/P conversion)
  Supports I/P conversion to avoid the dense misaligned horizontal lines on the video.
  Reference input (Black Burst and Tri-Level Sync.)
  Supports Black Burst and Tri-Level Sync for all inputs.
  Adjustment of HDMI color space
  The DAC CENTER software allows adjustment of HDMI color space. Support of various resolutions and HDMI color space allow consumer laptops to be used in a professional workflow
  Easy installation on the rack
  Available RMK-1 rack allows two DAC-45 to be racketed in a 19” rack.

• Model Number	DAC-45
  Conversion	VGA/HDMI/SDI to 4K HDMI/3G-SDI
  Multi-format Up/Down/Cross	Yes
  Video Inputs	1x VGA, 1x HDMI, 1x HD/SD-SDI, 1x Reference Input
  Loop Through	—-
  Video Outputs	1x SDI, 1x HDMI
  Audio Inputs	2x RCA (Unbalanced Audio L/R), 2x SDI/HDMI Audio embedded
  Audio Outputs	SDI embedded audio up to 8CH, 48KHz, PCM audio; HDMI embedded audio up to 8CH, 48KHz, PCM audio
  Audio Format Selection	—-
  Audio Gain	—-
  Supported Video Input Formats	2160p, 1080p, 1080psf, 1080i, 720p, 625i, 576p, 576i, 525i, 480p, 480i, 1920×1080, 1280×720, 1600×1200, 1400×1050, 1366×768, 1280×1024, 1024×768, 800×600
  Output Resolutions	2160p, 1080p, 1080psf, 1080i, 720p, 625i, 576p, 576i, 525i, 480p, 480i
  Equalizer	Yes
  Reclock	Yes
  SDI Cable Drive	Yes
  Updates and Configuration	Mini USB x 1
  Dimension (LxWxH)	220 x 143 x 42 mm
  Weight	1 kg
  Operating Temp. Range	0~40 °C
  Power	DC 12V, 9.4W
  What’s in the Box	1 x DAC-45, 1 x AD Switch DC 12V

• Description	Downloads
  DataVideo 4K Up/Down Cross Converter | DAC-45 Instruction Manual	Downloads
