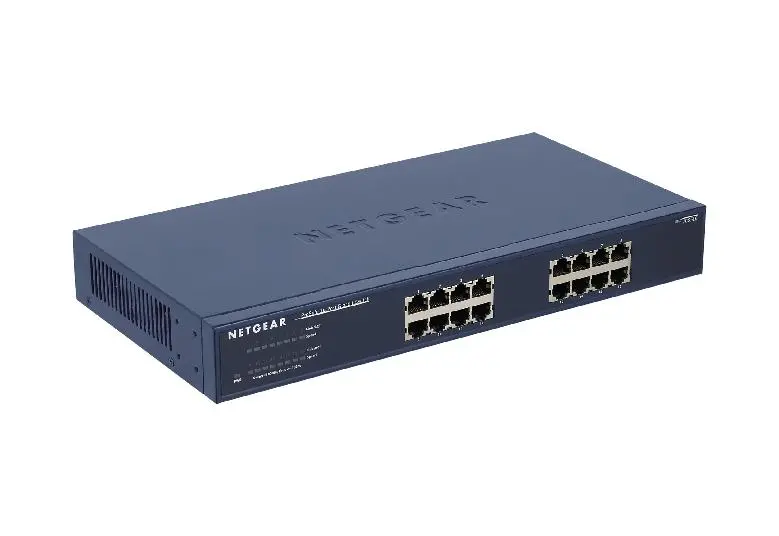

Netgear Jgs516-200Eus 16-Port Unmanaged Gigabit Ethernet Switch

Description

• Description
• Specifications
• Downloads

• Netgear JGS516-200EUS | 16-Port Gigabit Ethernet Unmanaged Switch with QoS & Jumbo Frame Support


  Each port delivers up to 2000Mbps of network speed (full duplex)
  Fast, auto-switching and auto-sensing 10/100/1000Mbps Ethernet connection
  16 switched ports provide bandwidth for PCs, servers or switches
  Auto Uplink™ automatically adjusts for straight-through or crossover cables
  Plug and play—begins working as soon as it is powered on
  Integrates 10-,100- and 1000Mbps devices into your network
  Compact size for desktop or for mounting in a standard 19-inch rack
  16 ports deliver up to 2000Mbps of dedicated, non-blocking bandwidth per port
  Instant Plug-N-Play connectivity with Auto-negotiation and Auto MDI/MDI-X
  Easily combine new or existing 10-, 100- and 1000Mbps devices within your network
  802.1p QoS support for prioritizing voice and video in the network
  Jumbo Frame Support up to 9KB



• Specification	Value
  Speed	10/100/1000Mbps Gigabit Ethernet
  Number of Ports	16
  PoE ports	n/a
  Total PoE Budget	n/a
  Loop Detection	n/a
  Short Cable Power Saving	n/a
  Energy Efficient Ethernet Support	Yes (IEEE 802.3az)
  Jumbo Frame Support	9KB
  Queue WRR Ratio	1:2:4:8
  MAC Table Size	8K
  Packet Buffer Size	256KB
  IEEE 802.1p QoS	Yes
  Max Power Consumption	11.8W
  Operating Temperature	0 to 50°C
  MTBF (hours)	441,123
  FCC Class	A

• Description	Downloads
  Netgear JGS516-200EUS 16-Port Gigabit Ethernet Unmanaged Switch Datasheet	Downloads
