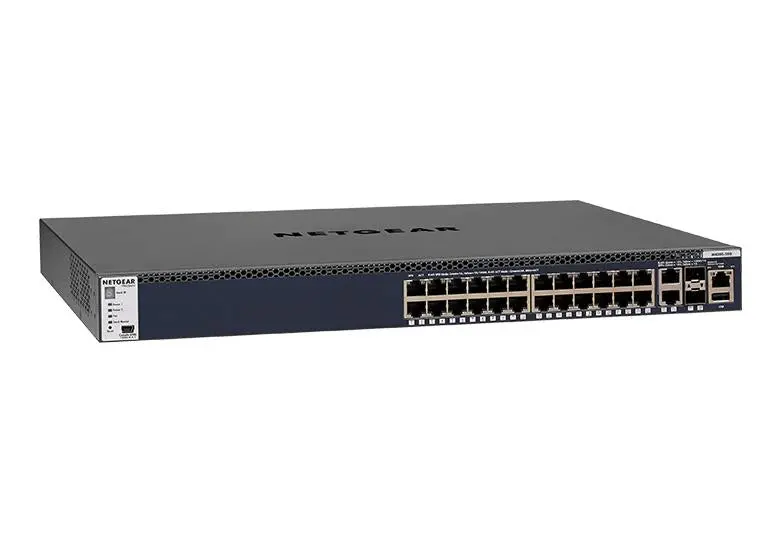

Netgear Gsm4328S-100Nes 24-Port Managed Gigabit Switch With 10G Uplinks

Description

• Description
• Specifications
• Downloads

• Netgear GSM4328S-100NES | 24-Port Gigabit Managed Switch with 2x10G and 2xSFP+


  Business Continuity Management
  Full-width switches offer dual redundant, modular power supplies (select m4300 models)
  High Availability (HA)
  Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
  Multi-Resiliency
  Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
  PVST+ Interoperability
  Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
  Link Dependency
  Enables or disables ports based on link state of different ports
  Advanced IPv4/IPv6 security
  Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
  Simple GUI
  Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
  Flexible & Efficient
  Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
  Mix & Match Stacking
  Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
  Room to Grow
  With PoE+ (30 watts per port), plug and play ports, and hot swap, you’re ready to grow whenever you need to.
  Industry Standard
  SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation
  Zero Touch AV-over-IP
  Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
  No Delay
  Non-Blocking Fabric for Near-Zero Switch Latency
  NETGEAR IGMP Plus™
  Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
  Dedicated Design
  ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

  No more Downtime
  Or bottlenecks – Spine and Leaf topologies in the same stack with unrivaled ease of use

  Industry-Standard
  Management
  Stay on top of operations with: CLI, local GUI, SNMP, sFlow, RSPAN, single pane of glass NMS300

  Secure Your Data
  Defend with Access Control, DiffServ QoS policies, LACP Link Aggregation, Private VLANs, Denial of service protection

  Dependable Operations
  Enjoy high availability across virtual servers through load balancing and nonstop forwarding failover.

• Feature	Description
  Model Number	GSM4328S
  Ports (Copper)	24 Ports Copper 10M / 100M / 1G 2 Ports Copper 100M / 1G / 10G
  Ports (SFP+)	2 Ports SFP+ 1G / 10G
  Modular Bay	1 Modular Bay with One (1) 150W Modular PSU included APS150W
  Switching Fabric	128 Gbps
  Fan	Fixed Fan Front-to-Back 30.3dB
  Ethernet	Out-of-band 1G port (Front)
  Console (RJ45 RS232)	RJ45 RS232 (Back)
  Console (Mini-USB)	Mini-USB (Front)
  Storage (USB)	USB (Front)
  Management Platform	Single-pane-of-glass NMS300 management platform with mass-configuration support
  Firmware and Configuration Updates	Dual firmware image and configuration file for updates with minimum service interruption

• Description	Downloads
  Netgear GSM4328S-100NES 24x1G, 2x10G, and 2xSFP+ Managed Switch Datasheet	Downloads
