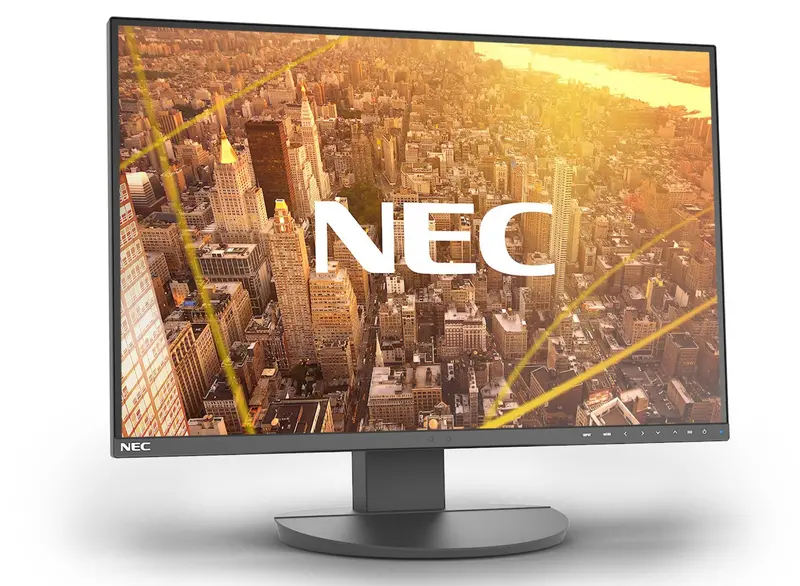

Nec Multisync Ea242Wu 24-Inch Wuxga Business Display – 60Hz, 6Ms, Professional Lcd Monitor (60004855)

Description

• Description
• Specifications
• Downloads

• WUXGA Clarity and Professional Precision

  Primed for Office Productivity

  Optimised for multi-display set ups, the ultra-narrow bezel NEC MultiSync® EA242WU is designed to support maximum productivity in today’s hybrid workspaces. Daisy-chaining neighbouring displays, embedded LAN and USB-C connectivity all contribute to minimal cabling and maximum flexibility – the display becomes the hub of workspace communications!

  Create individually tailored workspaces with best ergonomic adjustability and user-centred features including built-in low blue light and flicker-free technologies to protect the health of the viewers’ eyes and guard against fatigue, without compromising the high-performance IPS screen technology.

  Fulfilling the demand for future-ready performance and delivering all the trusted quality and reliability of the Sharp/NEC brand, the EA242WU is purpose-designed to maximise office productivity.



  Benefits
  Improve your Productivity – with embedded LAN and USB-C, this display serves as a docking hub in your Personal Workspace.

  Future-proof flexibility – wide connectivity provides high-level flexibility with LAN, DP, HDMI, USB Type C, USB A and audio output.

  Clutter-free workspace – Powerful 65W USB Type-C connectivity manages video, audio, power and USB via a single cable

  Easy multi-screen set-up – Daisy-chain multiple display configurations through DisplayPort-out, no additional cables needed

  Maximum attention to health and well-being – the outstanding ergonomic height adjustment from 0 to 150 mm; eye pleasing built-in Low Blue Light and Flicker-Free technology; plus integrated ambient light sensor all combines to tailor the perfect individual setup to boost productivity.

• Panel Technology	IPS TFT with W-LED backlight	Screen Size [inch/cm]	24 / 61
  Screen Aspect Ratio	16:10	Pixel Pitch [mm]	0.270
  Brightness (typ.) [cd/m²]	300	Contrast Ratio (typ.)	1000:1 (5000:1 dynamic contrast ratio)
  Viewing Angle [°]	178 horizontal / 178 vertical	Response Time [ms]	6
  Colours [Mio.]	16.77	Horizontal Frequency [kHz]	31.5 – 77
  Vertical Frequency [Hz]	50 – 60	Optimum Resolution	1920 x 1200 at 60 Hz
  Supported Resolutions	1024×768; 1280×1024; 1280×720; 1280×768; 1280×960; 1360×768; 1366×768; 1400×1050; 1440×900; 1600×1200; 1680×1050; 1920×1080; 1920×1200; 640×480; 800×600	Digital Connectivity	1x DisplayPort; 1x DisplayPort out; 1x HDMI; 1x USB Type C (65 W); USB 3.1 (2 down / 1 up)
  Output Control	1x LAN/RJ45	Power Consumption [W]	12 (Eco Mode 2); 21 (typ.)
  Power Savings Mode [W]	0.3	Power Supply	Internal power supply
  Operating Temperature [°C]	+5 to +35	Operating Humidity [%]	20 to 80
  Height Adjustable Stand [mm]	150	Screen Tilt / Swivel [°]	-5 to +35; -170 to +170
  Screen Rotate [°]	-90 to 90 (landscape to portrait mode)	Bezel Width [mm]	0.8 (left/right/top)
  Dimensions (W x H x D) [mm]	531.5 x 365.3 – 515.3 x 250 (Landscape mode)	Weight [kg]	6.7
  VESA Mounting [mm]	100 x 100	Special Characteristics	Ambient light sensor; Carbon Footprint & Savings Meter; DICOM preset/simulation; EcoModes; Human Sensor; LED Backlight; NaViSet Admin 2; Quick release stand; sRGB Support; Touch Sensor Keys
  Colour Versions	Black Front Bezel, Black Back Cabinet; White Front Bezel, White Back Cabinet	Cable Management	Yes
  Kensington Security Slot	Yes	Plug and Play	VESA DDC2B; VESA DDCi
  Audio	Headphone Jack; Integrated Speakers (1 W + 1 W)	Adjust Functions	Audio Volume; Auto Adjust; Brightness; Colour Temp Control; Contrast; Control Sync; EcoMode; Human Sensing; Intelligent Power Management; Power-Off Timer; sRGB
  Shipping Content	Monitor; Power Cable; Setup Guide; USB-C Cable	Safety and Ergonomics	CE; EnergyStar 8.0; Flicker-free; ISO 9241-307; Low Blue Light; TCO 9.0
  Warranty	3 years incl. backlight; optional 24/7 1–3 yrs; 4–5 yr extension	Energy Efficiency	Ambient light sensor; 13 kWh/1000 h; Class D; Human sensor; Intelligent power management
  Ecological Materials	Downloadable manuals	Ecological Standards	Energy Star 8.0; TCO 9.0

• Description	Downloads
  NEC MultiSync® EA242WU 24″ 60Hz 6ms WUXGA LCD Enterprise Display | 60004855 Datasheet	Download
