Manhattan 4-Port Hdmi Multiviewer Switch With Full Hd 1080P Support | 207881

Description

• Description
• Specifications
• Downloads

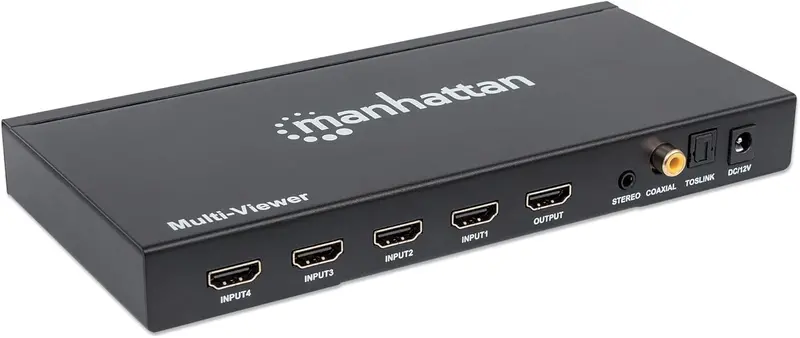

• Manhattan 1080p 4-Port HDMI Multiviewer Switch | 207881

  Easily connect and display four HDMI sources to a single display.
  The Manhattan 1080p 4-Port HDMI Multiviewer Switch provides the option of simultaneously connecting as many as four HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to one High-Definition (1080p, HD) or high-definition 3D displays as well as Deep Color HD projectors. This Multiviewer Switch makes missing important shows, games or security displays a thing of the past with all four inputs able to be displayed on one screen with the Multiviewer Combo Mode function.



  Flexible Solution for Many HD Applications
  Perfect for a variety of home or commercial applications, the Manhattan 1080p 4-Port HDMI Multiviewer Switch has both manual selection switches and a convenient IR remote control so you can quickly select or seamlessly switch between HDMI sources or configure the display arrangement.

  Best Possible Image Quality
  The Manhattan 1080p 4-Port HDMI Multiviewer Switch is HDMI and HDCP 1.4a compliant and delivers a stunningly clean, crisp and vivid picture up to 1080p resolution on one displays thanks to an integrated video bandwidth amplifier. Additionally, it supports HD-quality 3D video, as well as LPCM, DTS and Dolby TrueHD audio.

  Features
  Share up to four HDMI Audio/Video sources on one display at the same time or one at a time
  Multiviewer function supports four customizable modes: Full Screen and three variations of Combo Mode with seamless switching between sources
  Supports 1080p resolution as well as HD 3D video and Deep Color (36-bits/pixel)
  Integrated video bandwidth amplifier
  Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
  Supports Stereo, Coaxial and Toslink Audio output for connection to amplifier or receiver for the best sound quality
  Supports source switching via IR remote control or manual switching with the push of a button
  A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (reducing space and cost needed for multiple displays), security and other applications
  Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
  Fully HDCP compliant
  AC powered with Plug and Play installation; no special setup or remote required
  Plug-and-play installation
  Gold-plated contacts for corrosion-free connections
  Three-year warranty

• Category	Details
  Standards	HDMI 1.3, HDCP 1.4a, CE, FCC, RoHS2
  Source-to-Switch	Up to 15 m (49 ft)
  Switch-to-Display	Up to 15 m (49 ft)
  Seamless Switching	Yes (if source resolutions match)
  Power Supply	12 VDC @ 2 A (adapter included)
  Remote Battery	CR2025 3V lithium cell
  Inputs	4 x HDMI (19-pin), 1 x USB Mini-B (factory use)
  Outputs	1 x HDMI, 1 x 3.5mm Stereo, 1 x Toslink, 1 x Coaxial
  Signal Input	Video: 400–600 mV; DDC: 5V TTL
  Video Output	HDMI 1.3, HDCP 1.4a
  Max Bandwidth	2.25 Gbps / 225 MHz
  Supported Resolutions	480i to 1080p (HDTV/DTV)
  LED Indicators	Power and port connection
  Power Switch	Yes
  Dimensions (L×W×H)	213 × 100 × 25 mm (8.4 × 3.9 × 1 in)
  Weight	0.46 kg (1 lb)
  Housing	Metal
  Operating Temp	0 – 40°C (32 – 104°F)
  Storage Temp	-20 – 60°C (-4 – 140°F)
  Humidity	0 – 96% (non-condensing)
  In the Box	Switch, IR Remote, Power Adapter, Quick Guide

• Description	Downloads
  Manhattan 1080p 4-Port HDMI Multiviewer Switch | 207881 DataSheet	Downloads
  Manhattan 1080p 4-Port HDMI Multiviewer Switch | 207881 Instruction Manual	Downloads
