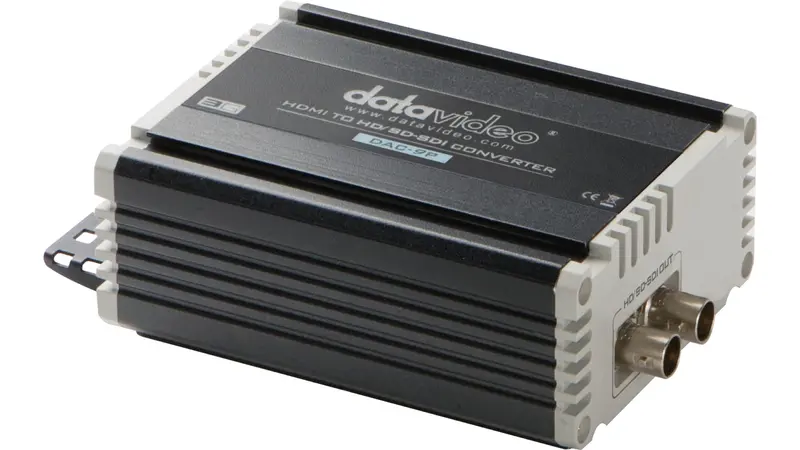

• DataVideo 4K HDMI To SDI Converter




  HDMI to SDI Conversion
  The DAC-9P supports HDMI to 3G/HD/SD-SDI conversion, allows users to connect HDMI devices to professional SDI equipment, like video switchers or recorders.
  Better transmission through SDI
  By using the DAC-9P, user can convert HDMI to High Definition & Standard Definition SDI and take advantage of the long-distance transmission, high quality and affordable connectivity that SDI cables offer.



  Audio embedded within SDI output signal
  The DAC-9P embeds the audio from HDMI into the SDI signal so only one single cable is needed.
  Aluminum Alloy and Heavy Duty Design
  Super sturdy and durable. DAC series has a rugged metal housing for use in even the roughest conditions. Low heat dissipation, ideal for long hour operation in normal ventilated environment.

• Feature	Description
  Model Number	DAC-9P
  Conversion	HDMI to 3G/HD/SD-SDI
  Video Inputs	1x HDMI
  Loop Through	—-
  Video Outputs	2x 3G/HD/SD-SDI with embedded Audio
  Audio Inputs	2x HDMI Audio embedded
  Audio Outputs	2x SDI Audio embedded
  Audio Format Selection	—-
  Audio Gain	—-
  Supported Video Input Formats	1080p (23.98/24/25/29.97/30/50/59.94/60Hz), 1080i (50/59.94/60Hz), 720p (50/59.94/60Hz), 576i (PAL), 480i (NTSC)
  Output Resolutions	Automatically matches SD, HD, and 3G HDMI video input
  Equalizer	—-
  Reclock	—-
  SDI Cable Drive	Yes
  Updates and Configuration	—-
  Dimension (LxWxH)	112 x 85 x 45 mm
  Weight	0.3 kg
  Operating Temp. Range	0~40 °C
  Power	DC 12V, 5W
  What’s in the Box	1 x DAC-9P, 1 x AD Switch DC 12V

• Description	Downloads
  DataVideo 4K HDMI To SDI Converter | DAC-9P Instruction Manual	Downloads
