• Blackmagic Design URSA Broadcast G2 | CINEURSAMWC6KG2

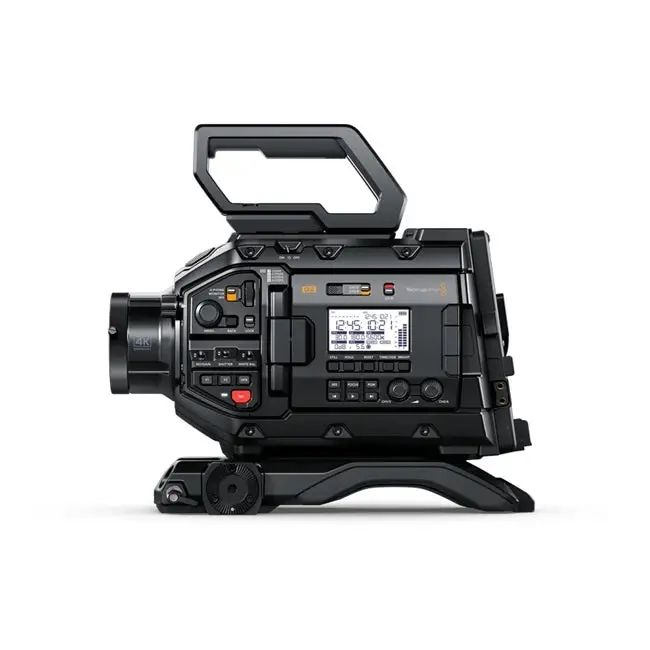

  The new Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera! You can record to common SD cards, UHS-II cards, CFast 2.0 cards or external USB disks, using common file formats such as H.265, ProRes and Blackmagic RAW. You can even change the lens mount! No other broadcast camera is so flexible!

•


  Category	Feature
  Camera Features
  Sensor Size (using 4K B4 mount)	2/3 inch
  Lens Mount	B4 2/3 inch installed, Active EF mount included
  Lens Control	Electronic via 12-pin broadcast connector, EF mount pins (with compatible EF lenses)
  Lens Correction	In-camera correction for color fringing (compatible broadcast lenses)
  Dynamic Range	13 Stops
  Dual Native ISO	0 dB and 18 dB gain
  Built-in ND Filters	4-position ND filter wheel (clear, 2 stop, 4 stop and 6 stop)
  Focus	Autofocus with compatible lenses (focus button trigger), Touch & hold LCD sets focus region and triggers autofocus
  Iris Control	Iris wheel, touchscreen slider (manual), Iris button (auto iris on compatible lenses)
  Screen	4 inch LCD touchscreen
  Controls	Touchscreen menus, push buttons, assignable shortcut keys
  Shooting Resolutions & Frame Rates
  ProRes
  – Ultra HD (3840 x 2160)	Up to 60 fps (from Ultra HD window or scaled from 5.3K windowed sensor)
  – Ultra HD (3840 x 2160)	Up to 50 fps (scaled from full sensor)
  – HD (1920 x 1080)	Up to 120 fps (scaled from 2.7K windowed sensor)
  – HD (1920 x 1080)	Up to 60 fps (scaled from Ultra HD or 5.3K windowed sensor)
  – HD (1920 x 1080)	Up to 50 fps (scaled from full sensor)
  H.265
  – Ultra HD (3840 x 2160)	Up to 60 fps (from Ultra HD window or scaled from 5.3K windowed sensor)
  – Ultra HD (3840 x 2160)	Up to 50 fps (scaled from full sensor)
  H.264
  – HD (1920 x 1080)	Up to 60 fps (scaled from Ultra HD or 5.3K windowed sensor)
  – HD (1920 x 1080)	Up to 50 fps (scaled from full sensor)
  Blackmagic RAW
  – 6K (6144 x 3456)	Up to 50 fps
  – 6K 2.4:1 (6144 x 2560)	Up to 60 fps
  – 5.3K 16:9 (5376 x 3024)	Up to 60 fps
  – 3.7K 6:5 anamorphic (3728 x 3104)	Up to 60 fps
  – Ultra HD (3840 x 2160)	Up to 60 fps
  – HD (1920 x 1080)	Up to 150 fps
  Project Frame Rates	23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
  Metadata Support	Lens data (from electronic B4 lenses), camera settings, slate data
  Timecode Clock	Highly accurate (less than 1 frame drift every 8 hours)
  Connections
  SDI Video Inputs	1x
  SDI Video Outputs	1x
  SDI Monitor Outputs	1x
  SDI Rates	1.5G, 3G, 6G, 12G
  Analog Audio Inputs	2x XLR (switchable between mic, line and AES digital audio)
  Analog Audio Outputs	1x 3.5mm headphone jack (supports iPhone style headset for talkback)
  Reference Inputs	Tri-Sync/Black Burst/Timecode
  Lens Control	1x 12-pin Hirose Broadcast Lens
