Biamp Parlé TCM-1EX Ceiling Microphone Expansion | 360° Beamtracking | AVB Pendant Mic for Tesira Systems
The Parlé TCM-1EX is an expansion AVB ceiling microphone intended to be used as a second and third microphone in conjunction with a TCM-1 or TCM-1A; it cannot operate as a standalone device.
Each microphone includes Beamtracking technology with three 120-degree zones, providing full 360-degree coverage of the meeting space. The plenum box is equipped with an additional RJ-45 connector for daisy chain connections; a maximum of three microphones are permitted per daisy chain (one TCM-1 or TCM-1A required, plus up to two TCM-1EX).
The Parlé TCM-1A Black & Parlé TCM-1A White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Expansion AVB Beamtracking pendant microphone, white.
Key Features
Must be used with a Parlé TCM-1 or TCM-1A microphone
Beamtracking technology actively tracks and intelligently mixes conversations
Three 120-degree zones for 360-degree coverage
Evaluated to the requirements of UL 2043 and is suitable for use in air handling spaces
Pendant microphone available in either white or black
Optional tile bridge mounting accessory available
Additional RJ-45 for daisy-chain connection to a TCM-1EX microphone (maximum of three microphones per daisy chain)
CE marked, UL listed, and RoHS compliant
5-year warranty
Compliant with the US Trade Agreement Act (TAA) -
Height Microphone: 2 in (51 mm)
Plenum Box: 2 in (51 mm)Width Microphone: 2.5 in (63 mm)
Plenum Box: 4 in (102 mm)Depth Microphone: 2.5 in (63 mm)
Plenum Box: 5.25 in (133 mm)Weight Microphone: 0.4 lbs (0.2 kg)

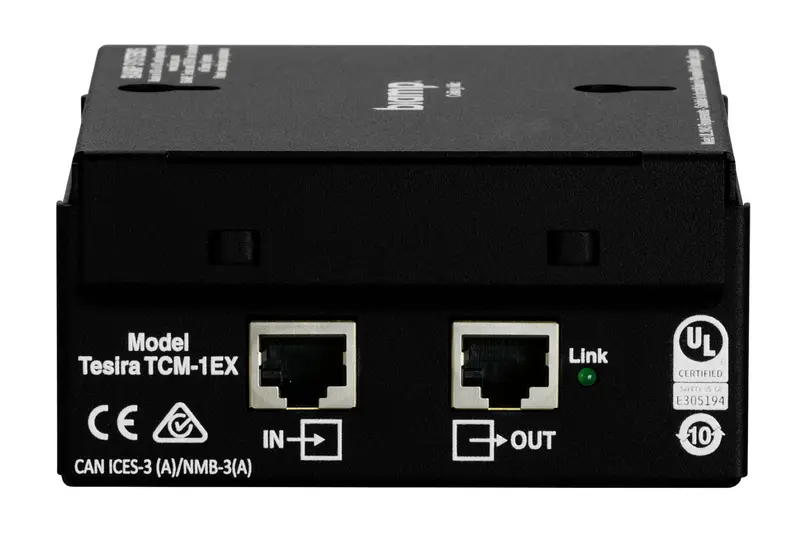

Plenum Box: 0.8 lbs (0.4 kg)Included Accessories Plenum Box (included): Two RJ-45 connectors — one between TCM-1EX and TCM-1/TCM-1A, and another between TCM-1EX and additional TCM-1EX unit.
2-pin 3.5 mm Phoenix connector to TCM-1EX microphone.
Digital Interface: Custom/Proprietary.
Max Distance: 33 ft (10 m) between TCM plenum boxes.Power Plenum Box: Custom/Proprietary Power Indicators Plenum Box: Link Indicator (Green LED)
Microphone: Mute Indicator (Green/Red LED)Microphone Type Pendant, 8-Element Digital Array Polar Pattern Beamformed Sensitivity > 70 dB (94 dB SPL, 1 kHz) Dynamic Range 92 dB (THD+N < 10%), A-Weighted Frequency Response 150 Hz – 16 kHz (±3 dB) Maximum SPL 106 dB (at 0.5% THD) Connector Custom 2-pin (10 ft / 3 m cable) Digital Interface Custom / Proprietary TAA Compliant Yes Certifications FCC Part 15B (USA), CE (Europe), UL & C-UL Listed (USA/Canada), RoHS (Europe), UL 2043 (Air Handling Spaces) -
Description Downloads BIAMP Parlé TCM-1EX White Pendant Microphone | 911.0487.900 DataSheet Download
