• Shure MX410 Surface Mount Gooseneck Microphone – 25.4cm with LED | Cardioid, CommShield™ RF Protection, 50–17kHz Frequency Range

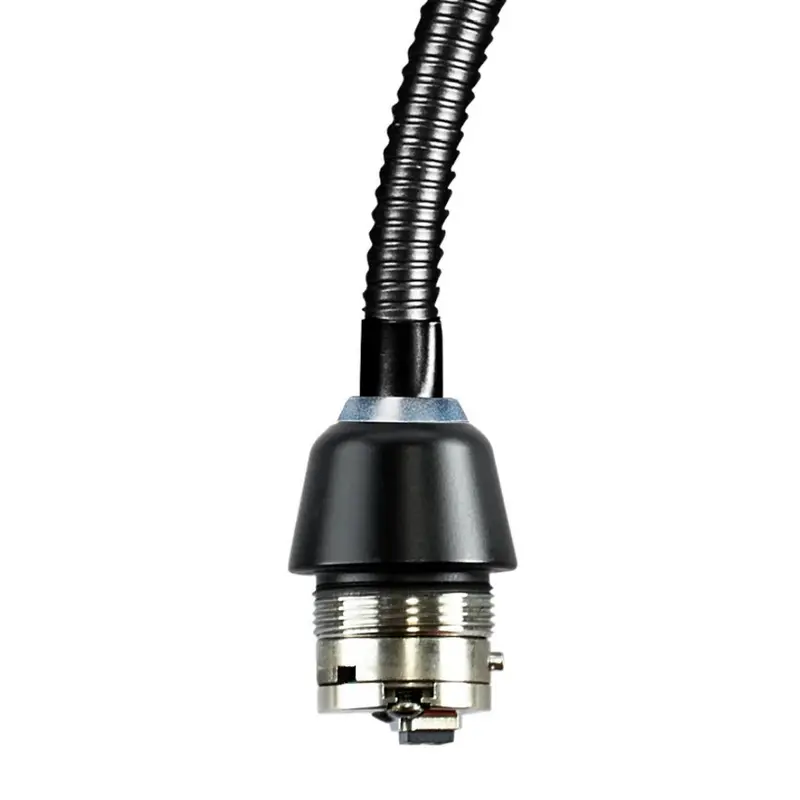

  The MX410 surface mount version is a gooseneck microphone with a Bi-Colour LED as status display. It has a 25,4 cm gooseneck and is suitable for boardrooms and other sites where aesthetics are important.
  Features
  Gooseneck length: 10 inch / 25.4 cm
  Low profile, aesthetic design
  Wide dynamic range and smooth frequency response
  RF filtering with CommShield™ technology
  Bi-Colour LED at gooseneck bottom
  Does not include preamp
  Duelflex Gooseneck with Cardioid Capsule

• Type	Condenser (electret bias)	Frequency Response	50–17000 Hz
  Polar Pattern (at 1 kHz)	Cardioid	Output Impedance	EIA Rated 150 Ω (170 Ω actual)
  Output Configuration	Active Balanced	Sensitivity (at 1 kHz)	–35 dBV/Pa (18 mV)
  Maximum SPL	121 dB (1 kHz at 1% THD, 1 kΩ load)	Equivalent Output Noise	28 dB SPL (A-weighted)
  Signal-to-Noise Ratio	66 dB (at 94 dB SPL, 1 kHz)	Dynamic Range	93 dB (1 kΩ load at 1 kHz)
  Common Mode Rejection	45 dB minimum (10 Hz to 100 kHz)	Preamplifier Output Clipping Level	-8 dBV (0.4 V, 1% THD)
  Polarity	Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 (3-pin XLR)	Weight	MX405: 0.054 kg (0.119 lbs)
  Logic Connections	LED IN: Active low (≤1.0V), TTL compatible. Max voltage: -0.7V to 50V. LOGIC OUT: Active low (≤1.0V), sinks up to 20mA, TTL compatible. Max voltage: -0.7V to 50V (through 3kΩ). Mute Switch Attenuation: -50 dB minimum.
  Operating Temperature	-18–57 °C (0–135 °F)	Storage Temperature	-29–74 °C (-20–165 °F)
  Relative Humidity	0–95%	Power Requirements	48–52 VDC phantom power, 8.0 mA

• Description	Downloads
  Shure MX410 Microflex 10″ Duelflex Cardioid Gooseneck Mic | MX410LPDF/C DataSheet	Download
