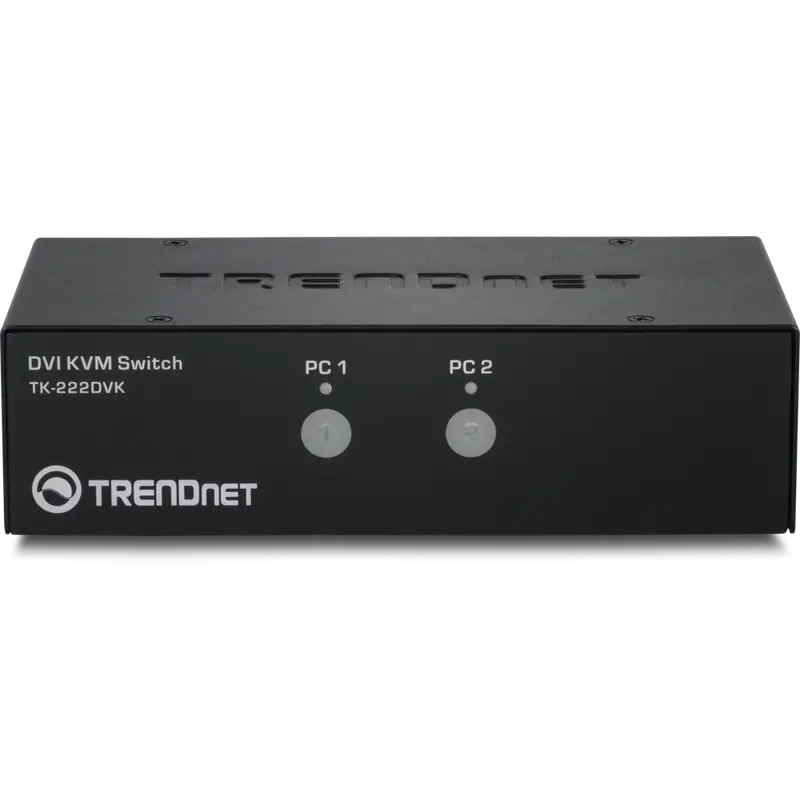

• Trendnet 2-Port DVI KVM Switch Kit | TK-222DVK

  The 2-Port DVI KVM Switch Kit, model TK-222DVK, allows you to control two computers with one set of console controls. No driver installation required, simply plug in the included cables to experience beyond HD resolution of 2560 x 1600 pixels. The TK-222DVK supports advanced keyboard and mouse designs and offers two bonus USB share ports to connect storage devices or printers.

  Features


  Computers
  Control up to 2 computers

  HD+
  Supports resolutions higher that 1080p HD (up to 2560 x 1600 pixels)

  2-Way Audio
  Full audio support maximizes work station productivity

  Console Connectors
  Emulation Technology supports most advanced keyboard and mouse designs

  DVI-D Monitor
  Designed to connect to a monitor’s DVI port and supports a 60 Hz refresh rate

  Resolution Optimization
  Adopts screen resolution from the connected device settings

  Computer Ports
  Requires free USB and DVI ports from connected computer

  Housing
  Rugged metal enclosure

  USB Share Ports
  Two additional USB ports to connect storage drives and printers

  Cables Included
  All required cables included

  Hot Keys
  Hot Key command shortcuts

• Attribute	Details
  Console Port on KVM	Keyboard: USB
  	Mouse: USB
  	Monitor: DVI-I
  	2-port USB 2.0 hub
  	Speaker jack: 3.5 mm
  	Microphone jack: 3.5 mm
  Computer Port on KVM (up to 2)	Keyboard/Mouse: USB 2.0 type B
  	Monitor: DVI-I
  	Speaker jack: 3.5 mm
  	Microphone jack: 3.5 mm
  Computer Connections (up to 2)	Keyboard/Mouse: USB 2.0 type A
  	Monitor: Single Link/Dual Link DVI-I/DVI-D
  	Speaker jack: 3.5 mm
  	Microphone jack: 3.5 mm
  Monitor Resolution	Digital: 2560 x 1600 @ 60 Hz
  	Analog: 2048 x 1536 @ 60 Hz
  Switching Control	Face panel touch buttons
  	Keyboard hot key commands
  Switching Notification	Audio
  Scanning Interval	10 – 60 seconds (Hot key controls)
  Special Features	Supports Dual Link DVI-D monitor
  	Advanced mouse and keyboard support
  	All time DDC emulation
  	Two bonus USB ports
  	Metal housing
  Operating Temperature	0 – 40 °C (32 – 104 °F)
  Operating Humidity	Max 90 % non-condensing
  Power	Input: 100 – 240 V AC, 50/60 Hz, 0.4 A
  	Output: 9 V DC, 1 A external power adapter
  	Consumption: 0.7 Watts
  Dimensions	164 x 90 x 45 mm (6.5 x 3.5 x 1.8 in.)
  Weight	586 g (1.29 lbs.)
  Warranty	2 year limited
  Certifications	CE, FCC
  Package Contents	TK-222DVK
  	Quick Installation Guide
  	Power adapter (9 V DC, 1 A)
  	2 sets of DVI-D KVM cables (1.8 m/6 ft.)
  	2 sets of USB 2.0 type A to B cables (1.8 m/6 ft.)
  	2 sets of audio cables (1.8 m/6 ft.)
