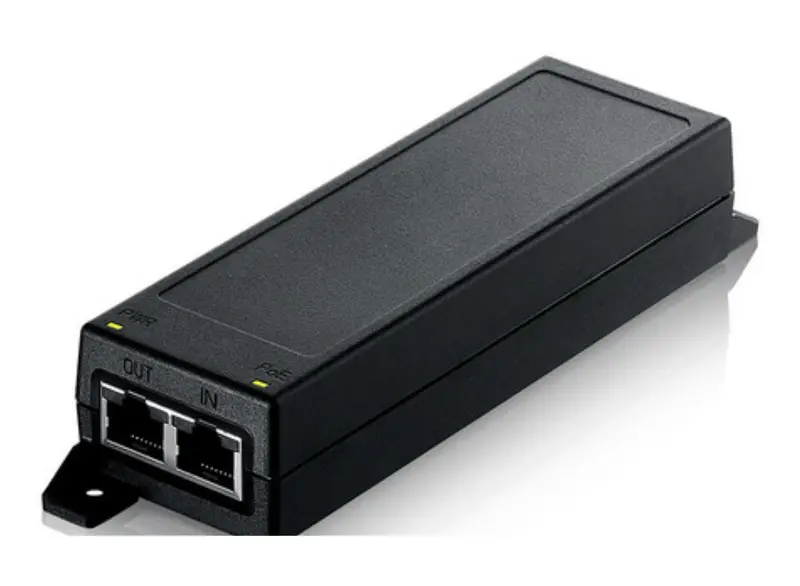

• Zyxel 2.5 Gigabit Ethernet | POE12-30W-GB0101F

  Support 2.5 Gigabit High Network Speed
  PoE12-30W is a Multi-Gigabit PoE injector supporting network speeds of up to 2.5Gbps. It is allowed to connect powered devices through existing Cat 5e or above cable.



  High PoE Power
  PoE12-30W complies with PoE+ providing PoE power budget up to 30 watts. It also offers interoperability and compatibility with other standard-based PoE devices.
  Plug and Play—Ease of Use
  PoE12-30W is easy to connect network devices without any configuration. The wall-mount and desktop design accommodate most installations scenarios.

• Category	Specification
  Ethernet Interface	2.5 Gigabit Ethernet
  Ethernet LAN Data Rates	100, 1000, 2500 Mbit/s
  Power over Ethernet (PoE)	Yes
  Networking Standards	IEEE 802.3ab, IEEE 802.3at, IEEE 802.3bz, IEEE 802.3u
  Features	– Product colour: Black
  	– Wall mountable: Yes
  	– Easy to install: Yes
  	– Plug and Play: Yes
  	– MTBF: 1,869,569 hours
  Ports & Interfaces	– Ethernet LAN (RJ-45) ports: 2
  	– RJ-45 input ports: 1
  	– RJ-45 output ports: 1
  Power	– Input voltage: 100 – 240 V
  	– Input frequency: 50/60 Hz
  	– Input current: 1 A
  	– PoE budget: 30 W
  Operational Conditions	– Operating temperature: -10 – 45 °C (14 – 113 °F)
  	– Operating humidity: 5 – 90%
  	– Storage temperature: -25 – 70 °C
  	– Storage humidity: 5 – 90%
  Weight & Dimensions	– Width: 140 mm
  	– Depth: 45.5 mm
  	– Height: 30 mm
  	– Weight: 144 g
  Packaging Data	– Package width: 171 mm
  	– Package depth: 121 mm
  	– Package height: 42 mm
  	– Package weight: 918 g
