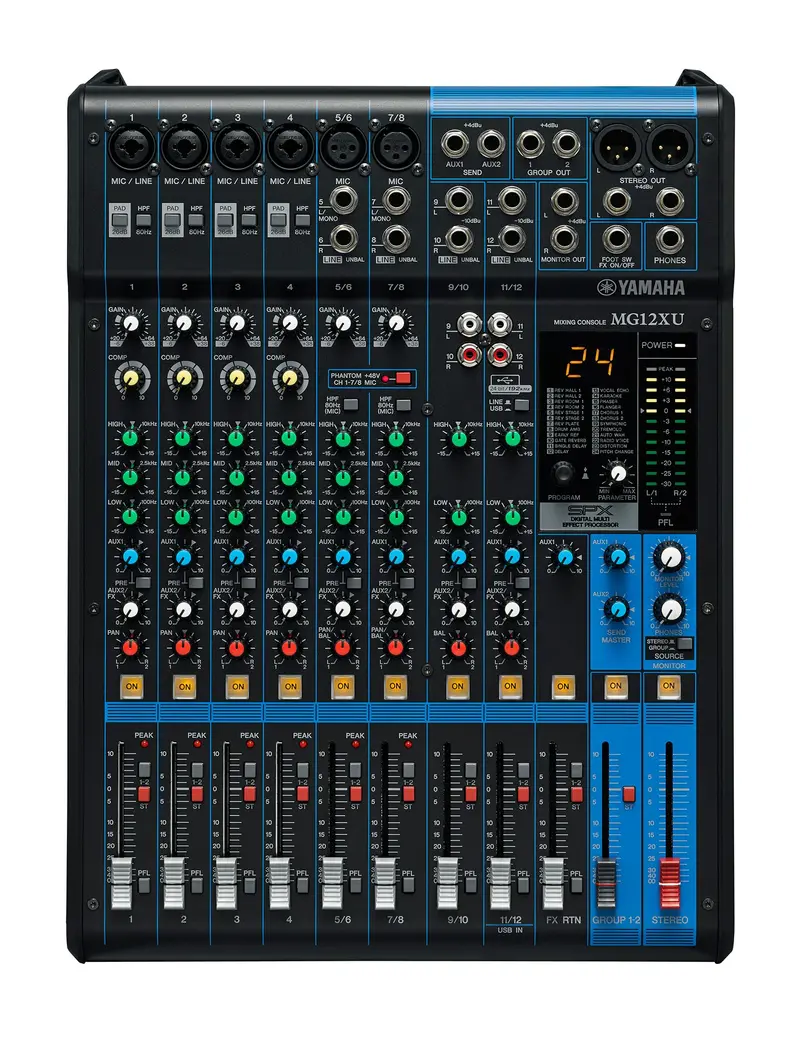

Yamaha Mg12Xu – 12-Channel Usb Audio Mixer With Built-In Effects And Recording Capability

Description

• Description
• Specifications

• Yamaha MG12XU 12-Channel Analog Mixer | USB Interface, SPX Effects & Cubase AI – Compact live & studio mixing console

  12-Channel Mixing Console
  Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
  2 GROUP Buses + 1 Stereo Bus
  2 AUX (incl. FX)
  “D-PRE” mic preamps with an inverted Darlington circuit
  1-Knob compressors
  High-grade effects: SPX with 24 programs
  24-bit / 192kHz 2in / 2out USB Audio functions
  Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  Includes Cubase Al DAW software download version
  PAD switch on mono inputs
  +48V phantom power
  XLR balanced outputs
  Internal universal power supply for world-wide use
  Optional Rack Mount Kit RK-MG12 Available
  Metal chassis
  Dimensions(W×H×D): 308 mm x 118 mm x 422 mm (12.1″ x 4.6″ x 16.6″)
  Net Weight: 4.2 kg (9.3 lbs.)

• Feature	Description
  Type	Analog mixer with SPX
  Bus Type	USB
  Max Sample Rate	192 kHz
  Max Bit Depth	24-bit
  Rack Mount	Rack-mountable
  Channels Qty (total)	12-channel
  Frequency Response	20 Hz – 48 kHz
  Mic Phantom Power	48 V
  Control Types	Knobs, faders
  Headphones Output	Yes
  Meter Indicator	2 x LED level meters (12 segments)
  Features	Headphone output volume control, monitors volume control, built-in channel compressors
  Mic Channels	6 mono
  Mic Channels Connector	XLR, XLR / phone 6.3 mm
  Line Channels	4 mono / 4 stereo
  Line Channels Connector	RCA x 2, phone stereo 6.3 mm
  EQ Band Qty	3
  Input Level Switch	Mic/line
  AUX Channels	2x AUX Send, Monitor Out, 2x Group outputs
  Effects Qty	24
  Connections	4 x audio line-in / microphone (XLR / phone stereo 6.3 mm) – top 2 x microphone (XLR) – top 8 x audio line-in (phone 6.3 mm) – top 2 x audio line-in (RCA x 2) – top 2 x AUX send (phone 6.3 mm) – top 1 x monitor output (phone stereo 6.3 mm x 2) – top 1 x headphones (phone stereo 6.3 mm) – top 1 x balanced audio output (XLR x 2) – top 1 x balanced audio output (phone stereo 6.3 mm x 2) – top 1 x USB 2.0 (4 pin USB Type B) – rear
  Voltage Required	AC 120/230 V
  Frequency	50/60 Hz
  Power Consumption	22 Watt
  Width	30.8 cm
  Depth	42.2 cm
  Height	11.8 cm
  Weight	4.2 kg
