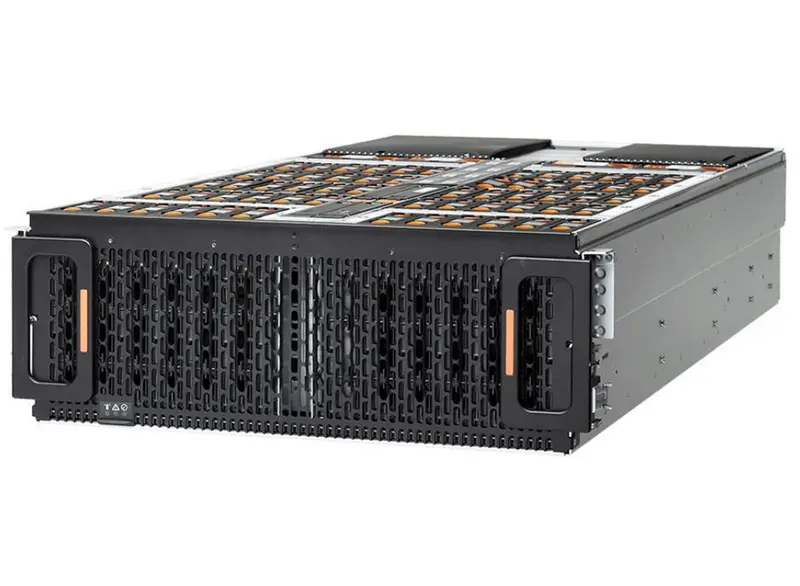

• Western Digital Ultrastar Serv60+8 Hybrid Storage Server, Ethernet, 4U | 1ES1393

  The Ultrastar Serv60+8 Hybrid Storage Server has dual high-performance Intel® Xeon® scalable processor-based CPUs to manage the demanding workloads in Software-Defined Storage (SDS) environments. With a choice of CPUs, memory, and drives, it balances performance with cost.
  The Ultrastar Serv60+8 hybrid storage server addresses the demanding needs of large enterprise customers, OEMs, cloud service providers, as well as systems integrators that require dense, shared HDD or hybrid storage with compute included.



• Category	Specification	Details
  Battery	Battery Type	UN3091 – Lithium METAL inside equipment
  	Lithium Weight (g)	0.064 g
  Design	Chassis type	Rack (4U)
  	Cooling type	Active
  	Number of fans	6 fan(s)
  	Product colour	Black/Grey
  Legal Information	UNSPSC Code (Icecat)	43201835
  Logistics data	Harmonized System (HS) code	84714100
  Memory	Internal memory type	DDR4
  	Maximum RAM supported	2 TB
  	Memory form factor	LRDIMM
  	Memory slots	16
  Network	Ethernet LAN	Yes
  	Ethernet LAN data rate supported (max)	10000 Mbit/s
  	Ethernet LAN data rates	10000 Mbit/s
  Operational conditions	Operating relative humidity (H-H)	8 – 90 %
  	Operating temperature (T-T)	5 – 35 °C
  	Storage relative humidity (H-H)	8 – 90 %
  	Storage temperature (T-T)	-40 – 70 °C
  Package dimensions	Gross Weight (Package, kg)	3.9 kg
  Performance	Device class	Large Enterprise Business
  	Type	Storage server
  Ports & interfaces	Ethernet LAN (RJ-45) ports	2
  	USB 2.0 ports quantity	2
  	USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
  	USB port	Yes
  	VGA (D-Sub) ports quantity	1
  Power	AC input frequency	50-60 Hz
  	AC input voltage	200-240 V
  	Power supply location	Built-in
  	Power supply unit (PSU) capacity	2000 Watt
  Processor	Number of processors supported	2
  	Processor manufacturer	Intel
  Product dimensions	Net Weight (Product, kg)	3 kg
  	Product Depth	109.9 cm
  	Product Height	17.5 cm
  	Product Width	44.7 cm
  Storage	Maximum supported storage capacity	12 TB
  	Number of storage drives supported	68
  	Storage drive interface	Serial ATA
  	Storage drive sizes supported	2.5/3.5 “
  	Storage drives installed	Yes
  	Supported storage drive interfaces	Serial ATA
  	Supported storage drive types	HDD & SSD
  	Total installed storage capacity	144 TB
  Vendor information	Brand Name	Western Digital
  Warranty	Warranty	1 Year(s)
