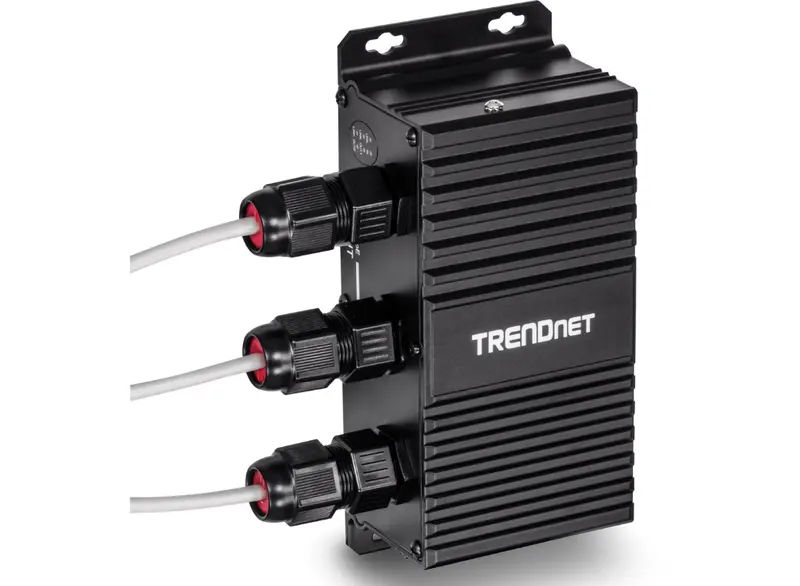

• Trendnet 2-Port Industrial Outdoor Gigabit UPoE Extender | TI-EU120

  TRENDnet’s 2-Port Industrial Outdoor Gigabit UPoE extender, model TI-EU120, takes a single UPoE connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. It auto-detects a PoE (15.4W), PoE+ (30W), or UPoE (60W) signal and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to 4 units for a total PoE network extension of up to 500 meters (1640 ft.). This outdoor UPoE extender features a single UPoE input port and two PoE+ output ports encased in an IP67 weather rated housing. Built-in voltage booster guarantees stable voltage output for your high powered PoE devices.


  UPoE Power
  Extends a UPoE connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and UPoE (60W) devices**


  Gigabit Ports
  Features one gigabit UPoE input port and two gigabit PoE+ output ports that extends a single UPoE connection an additional 100 meters (328 ft.) to two PoE+ devices.


  Outdoor Rated
  Built for outdoor environments with an IP67 weather rating and an operating temperature range of -40°– 75° C (-40° – 167° F).


  Extension Distance
  Extends a PoE/PoE+/UPoE network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

  PoE/PoE+/UPoE
  Auto detects a PoE (15.4W), PoE+ (30W), and UPoE (60W) network connections

  Gigabit Ports
  1 x gigabit UPoE input port, 2 x gigabit UPoE output ports, and 64W PoE budget with 95W UPoE input
  1 x gigabit UPoE input port, 2 x gigabit PoE+ output ports, and 46W PoE budget with 60W UPoE input

  Daisy Chain
  Connect up to 4 units for a PoE network extension of up to 500m (1640 ft.).*

  PoE Powered
  No external power required—saves installation time and cost

  Outdoor Ready
  Rugged IP67 outdoor weather rated housing

• Category	Specification
  Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt draft
  Device Interface	– 1 x IP67 weather-rated gigabit UPoE input port
  	– 2 x IP67 weather-rated gigabit UPoE output ports
  	– LED indicators
  Data Transfer Rate	– Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
  	– Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
  	– Gigabit: 2000Mbps (full duplex)
  Performance	– RAM Buffer: 1MB
  	– MAC Address Table: 8K
  	– Jumbo Frame: 10KB
  Special Features	– IP67 rated housing
  	– Wall mountable
  	– UPoE support
  Power	– PD power input: 30W/60W/95W
  	– PoE: 15W/30W/60W per PSE
  	– PoE Budget: 64W Max.
  	– Consumption: 3W Max. (without PoE)
  PoE Power Output	– PoE Input: Max PoE Output
  	– 95W Input: 64W
  	– 60W Input: 46W
  	– 30W Input: 22W
  Single Port Daisy Chain	– Number of Daisy Chains From PSE: Max. PoE Output
  	– 1 (up to 100m): 95W Input: 64W
  	– 2 (up to 200m): 95W Input: 45W
  	– 3 (up to 300m): 95W Input: 35W
  	– 4 (up to 400m): 95W Input: 29W
  Operating Temperature	-40° – 75° C (-40° – 167° F)
  Operating Humidity	Max. 95% non-condensing
  Dimensions	165 x 62 x 112mm (6.5 x 2.4 x 4.4 in.)
  Weight	834g (29.4 oz.)
  Certifications	CE, FCC, EN60950-1, IEC 60068-2-27 (Shock), IEC 60068-2-32 (Freefall), IEC 60068-2-6 (Vibration)
  Warranty	3 years
  Package Contents	– TI-EU120
  	– 3 x IP67 weather-rated cable glands
  	– Wall mount screws
  	– Quick installation guide
