• TOA Wired 6 W Loudspeaker Black, White

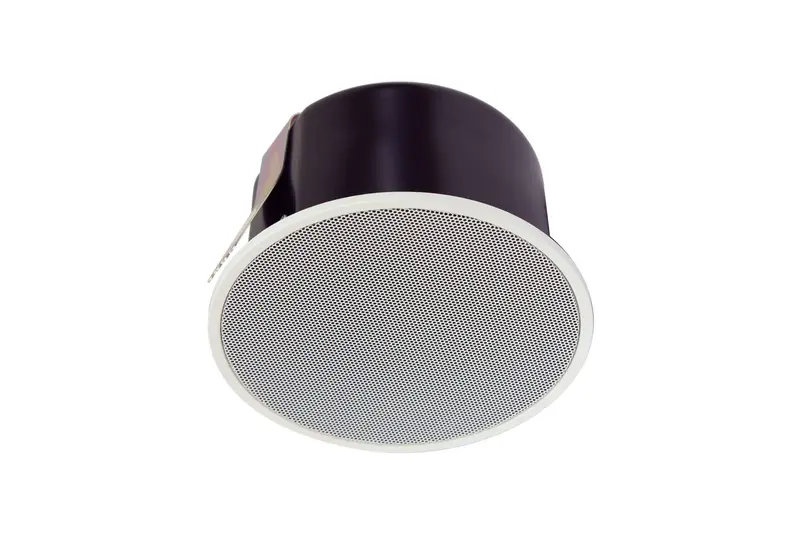

  Ceiling Speaker
  The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker’s design harmonizes with modern architecture and decor.
  The PC-1860BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2013 and EN54-24.
  Features
  Flat front panel
  Quick and easy installation
  Fire dome made of steel
  Ceramic screw terminal block and thermal fuse
  6 W rated input
  12 cm speaker chassis



  Discover our products in 3-D view – and project them via AR into any room and get 3-D all-round view in real time
  How can I turn, enlarge, move the object?
  Rotate /Turn: Hold left click and drag at the same time or on a touch screen please drag with one finger.
  Zoom
  To zoom in or out, please scroll with the mouse wheel or on a touch screen please work with pinch-to-zoom i.e. pull the object apart with 2 fingers to zoom in.
  Move the entire object
  Hold right-click and drag or on a touchscreen please drag with 2 fingers.
  Project into my own space
  Click AR (Augmented Reality) at the bottom right of the window. Now you can scan the QR code or simply open the link on your mobile device.

• Feature	Description
  Frequency Response	170 Hz – 20 kHz
  Sensitivity (1 W, 1 m)	95 dB
  Max. SPL (1 m)	100 dB
  Rated Input (100 V)	6 W
  Tappings	100 V: 1.7 kΩ (6 W) / 3.3 kΩ (3 W) / 6.7 kΩ (1.5 W) / 13 kΩ (0.8 W) 70 V: 1.7 kΩ (3 W) / 3.3 kΩ (1.5 W) / 6.7 kΩ (0.8 W) / 13 kΩ (0.4 W)
  Speaker Component	12 cm cone-type
  Operating Temperature	-10 °C to +50 °C
  Finish	Steel plate, traffic white (RAL 9016 or equivalent)
  Dimensions	180 x 105 mm (Ø x D)
  Weight	1.1 kg
  Dust / Water Protection	IP 21C
