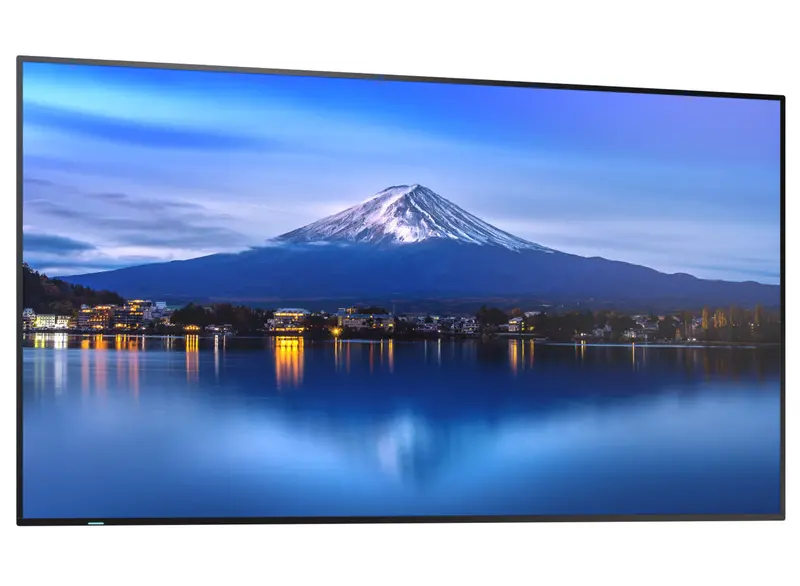

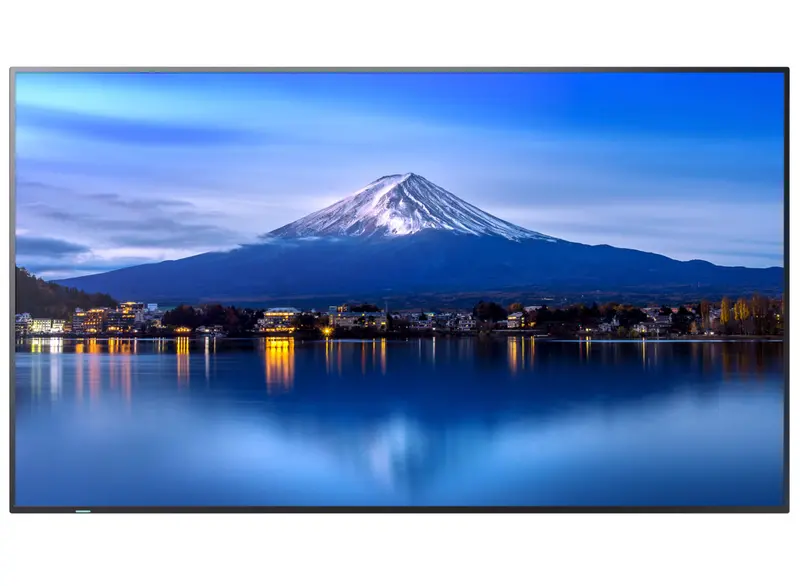

65″ 4K UHD IPS Display with 700 cd/m² Brightness and 24/7 Operation
Precision performance for critical applications
When reliability, security, and exceptional visual performance are mandatory, the Sharp MultiSync® P6 Series delivers with precision and resilience. Engineered for mission-critical applications and high-end signage, the P6 Series combines robust durability with advanced visual technologies to meet the most demanding commercial needs. With 700 cd/m² brightness, a high-haze panel, and SpectraViewTM Engine, it delivers outstanding image clarity and colour accuracy even in challenging lighting conditions. Despite its slim profile, the P6 Series is endorsed for use in heavy traffic spaces with a durable all-metal chassis that complies to the strictest fire safety standards.
Building on NEC’s trusted heritage, the next generation Sharp P6 Series is designed for longevity and integration flexibility. Its modular architecture supports custom computing options by Intel® SDM or Raspberry Pi, and flexible connectivity including AVoverIP for versatile deployments. Native video daisy chaining via HDMI and DisplayPort enables content to be easily cloned or expanded across multiple displays. Compatibility with leading platforms such as Crestron, Cisco Webex, and Q-Sys enhances its future-proof appeal, while 802.1x LAN support safeguards robust security against cyber threats. Purpose-designed for control rooms, passenger information, and prestige retail or corporate signage, the P6 Series delivers uncompromising performance, day after day.
Benefits
Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
Security assured – 802.2x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
Mission-critical performance – with 700 cd/m² brightness, long-life components and robust flame-resistant metal chassis, the P6 series is engineered to deliver lasting clarity and durability in challenging environments without the need for bulky housings.
Trusted integration – full compatibility with major AV ecosystems, including Crestron XiO Cloud and NVX, Q-Sys, Cisco Webex, Matrox IPMX, and CMS solutions, ensures seamless setup and scalability.
-
DISPLAY Panel Technology ÎPS with Direct LED backlights Active Screen Area (W x H) [mm] 1,428.5 x 803.5 Screen Size [inch/cm] 64.5 / 163.9 Aspect Ratio 16:9 Pixel Pitch [mm] 0.372 Brightness [cd/m²] 700 Contrast Ratio ≥ 8000:1 1 Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Depth [bn] 1.073 (10bit) Colour Gamut 92% of DCI Response Time (typ.) [ms] 8 Panel Refresh Rate [Hz] 60 Haze Level [%] Pro (25) Supported Orientation Face Down; Face Up 2; Landscape; Portrait RESOLUTION Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768; 1270 x 720; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600 SYNCHRONISATION RATE Horizontal Frequency [kHz] 15 – 135 Vertical Frequency [Hz] 23 – 76 CONNECTIVITY HDMI IN 1 Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC HDMI IN 2 Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC HDMI OUT Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module DP IN 1 Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input DP OUT Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2 USB-A 1 USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage USB-A (Service) 2.5 W; Service USB-C 1 Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W USB-C 2 USB 2.0 / 3.2; 7.5 W; Peripherals; Storage Audio Output (3.5 mm) Audio Output; Line Out LAN 1 100 MBit/s LAN 2 Loop Through: LAN 1, RS-232C, IR; 100 MBit/s RS-232C 9600 bps Remote In (3.5 mm) Eco Sensor (IR-Extender, Ambient and Presence) Input Detect Custom; Last; First PiP / PbP 2-Split; Scalable picture size CALIBRATION Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point Calibration Software Display Wall Calibrator OPEN MODULAR INTELLIGENCE Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W Compute Module Slot MPi4 and MPi5 Kit (powered by Raspberry Pi) SENSORS Ambient Light Sensor Integrated, triggered actions programmable Human Sensor optional via Eco Sensor (KTES1) Temperature Sensor Integrated, 3 sensors, triggered actions programmable ELECTRICAL Power Consumption [W] 160 shipping Power Savings Mode [W] < 0.5; < 2 (Networked Standby) Power Management VESA DPMS Power Supply 100-240 V AC; 50/60 Hz; internal ENVIRONMENTAL CONDITIONS Operating Temperature [°C] +0 to +40 Operating Humidity [%] 20 to 80 Storage Humidity [%] 10 to 80 Storage Temperature [°C] -20 to 60 MECHANICAL Dimensions (W x H x D) [mm] 1,454.5 x 832.4 x 59.5 Weight [kg] 26 Bezel Width [mm] 11 (left, right and top); 13.9 (bottom) VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6 Ingress Protection IP5x (front); IP2x (back) Packaging Dimensions (W x H x D) [mm] 1,620 x 950 x 185 Packaging Weight [kg] 35 Material Metal AVAILABLE OPTIONS Accessories Eco Sensor (KTES1); Feet (ST-65M); Remote control kit (KTRC3); Soundbar (PN-ZCMS1); Speaker (SP-RM3a); Trolley (PD04 Tipster, L20PNSR780MEU); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (PDW S 32-65 L, PDW S 32-65 P, L20PNWALL90EU, PDW T XL-2) REGULATORY Safety and Ergonomics CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA Pixel Failure Class ISO 9241-307, Class 1 Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB GREEN FEATURES Energy Efficiency Energy consumption: 139 kWh/1000 h; Energy efficiency class: G; LED backlight Ecological Standards EnergyStar 8.0 3RD PARTY CERTIFICATIONS Crestron Certified for Crestron CCV2 and XiO Cloud ADDITIONAL FEATURES Special Characteristics CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler Audio Integrated Speakers (10 W + 10 W) Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3 Operating Hours 24/7 External Control AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP Remote Management NaViSet Administrator 2 Security Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN) -
