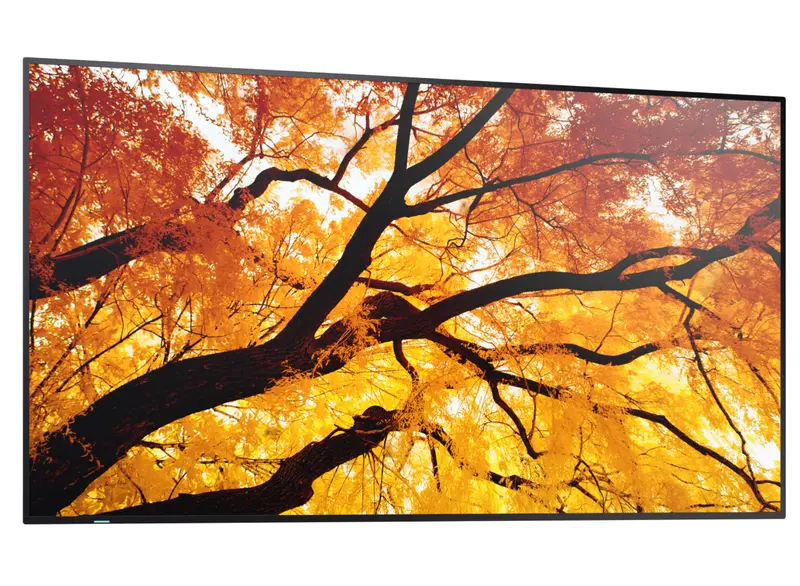

Ultra-Large 98” 4K UHD IPS Display for High-Impact Signage & Collaboration
Built to perform, designed to last
The versatile solution for professional display applications, the Sharp MultiSync® M2 Series (32″ up to 98″) is purpose-built for demanding signage and meeting room environments. With native USB-C connectivity and broad compatibility with platforms such as Crestron, Cisco Webex, and Microsoft Teams, it enables seamless BYOD collaboration and future-ready integration, while 802.1x LAN support ensures enterprise-grade network security. Featuring class-leading 550 cd/m² brightness, a high-haze panel to minimise glare, and NEC’s trusted SpectraView Engine, the M2 Series delivers outstanding visual performance with unmatched colour precision.
As part of the new Sharp-branded display family, the MultiSync® M2 Series builds on NEC’s legacy of quality and reliability to drive greater efficiency and long-term value. Its proven modular design supports custom computing options (Raspberry Pi or Intel® SDM) and flexible connectivity (e.g. AV-over-IP), ensuring lasting versatility, performance, and sustainability.
Benefits
Seamless meeting workflows – a single USB-C cable transmits video, data, and power for instant, clutter-free meeting setups. As the established standard for modern collaboration spaces, USB-C supports frictionless BYOD experiences.Unhindered readability – a high-haze panel reduces glare from windows and ambient light, keeping signage content and presentations clear for uninterrupted viewing in any environment
Security assured – 802.1x support over LAN enables high-level security for corporate networks, giving peace of mind for IT teams and enterprise environments.
Enhanced imaging precision – when brand consistency and corporate identity are important, NEC’s SpectraView Engine provides full control over colour, gamma, and uniformity for accurate and impactful content.
Broad AV compatibility – fully interoperable with leading meeting room platforms including Crestron (XiO Cloud), Cisco Webex, Q-Sys, and Microsoft Teams, ensuring effortless integration and future-proof scalability.
-
Panel Technology IPS with Direct LED backlights Screen Size [inch/cm] 98 / 247.7 Aspect Ratio 16:9 Brightness [cd/m²] 550 Contrast Ratio ≥ 8000:1 1 Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1) Colour Depth [bn] 1.073 (10bit) Colour Gamut 72% of NTSC Response Time (typ.) [ms] 8 Panel Refresh Rate [Hz] 60 Haze Level [%] Pro (25) Supported Orientation Face Up 2; Landscape; Portrait Native Resolution 3840 x 2160 Supported Resolutions 1024 x 768; 1270 x 720; 1280 x 1024; 1280 x 720; 1280 x 800; 1360 x 768; 1366 x 768; 1400 x 1050; 1440 x 900; 1600 x 1200; 1680 x 1050; 1920 x 1080; 1920 x 1200; 1920 x 1200; 1920 x 2160; 3840 x 2160; 4096 x 2160; 640 x 480; 720 x 400; 720 x 480; 720 x 576; 800 x 600 Horizontal Frequency [kHz] 15 – 135 Vertical Frequency [Hz] 23 – 76 HDMI IN 1 Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; ARC; CEC HDMI IN 2 Video Input; UHD (60 Hz) HDCP (2.2); Audio Input; CEC HDMI OUT Video Output; UHD (60 Hz) HDCP (2.2); Audio Output; Loop Through: HDMI IN 2, Option, Compute module DP IN 1 Video Input; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Input DP OUT Video Output; UHD (60 Hz) DP 1.2; HDCP (2.2); Audio Output; Loop Through: DisplayPort IN, USB-C 2 USB-A 1 USB (2.0 / 3.2); 4.5 W; Peripherals; USB Storage USB-A (Service) 2.5 W; Service USB-C 1 Video Input; UHD (60 Hz); DP alt. 1.2; HDCP (2.2); Audio Input; USB 2.0 / 3.2; 65 W USB-C 2 USB 2.0 / 3.2; 7.5 W; Peripherals; Storage Audio Output (3.5 mm) Audio Output; Line Out LAN 1 100 MBit/s LAN 2 Loop Through: LAN 1, RS-232C, IR; 100 MBit/s RS-232C 9600 bps Remote In (3.5 mm) Eco Sensor (IR-Extender, Ambient and Presence) Input Detect Custom; Last; First PiP / PbP 2-Split; Scalable picture size Factory Calibration Gamma; Intensity; RGB; Uniformity; White Point Calibration with Software Corner Uniformity; Gamma; Intensity; RGB; Update Factory Calibration; White Point Calibration Software Display Wall Calibrator Intel® SDM accepts Intel® Smart Display Modules Large and Small up to 66 W Compute Module Slot MPi4 and MPi5 Kit (powered by Raspberry Pi) Ambient Light Sensor Integrated, triggered actions programmable Human Sensor optional via Eco Sensor (KTES1) Temperature Sensor Integrated, 3 sensors, triggered actions programmable Power Consumption [W] 210 shipping Power Savings Mode [W] < 0.5; < 2 (Networked Standby) Power Management VESA DPMS Power Supply 100-240 V AC; 50/60 Hz; internal Operating Temperature [°C] +0 to +40 Operating Humidity [%] 20 to 80 Storage Humidity [%] 10 to 80 Storage Temperature [°C] -20 to 60 Dimensions (W x H x D) [mm] 2,194.7 x 1,250.2 x 84.3 Weight [kg] 68 Bezel Width [mm] 15.9 VESA Mounting [mm] 4 holes; 600 x 400 (FDMI); M8 Ingress Protection IP5x (front); IP2x (back) Packaging Dimensions (W x H x D) [mm] 2,350 x 1,400 x 310 Packaging Weight [kg] 99 Material Metal Accessories Eco Sensor (KTES1); Feet (ST-801); Remote control kit (KTRC3); Speaker (SP-RM3a); Trolley (L20PNSR780MEU); USB-C cable (USB-C 5M, USB-C 7M); Wall mount (L20PNWALL90EU, SF680P) Safety and Ergonomics CE; EMC Class B; Energy Star 8; FCC Class B; REACH; RoHS; UKCA; UL/C-UL or CSA Pixel Failure Class ISO 9241-307, Class 1 Resistance to Fire Metal backcover, plastic material certified acc. to UL94-5VB Energy Efficiency Energy consumption: 202 kWh/1000 h; Energy efficiency class: G; LED backlight Ecological Standards EnergyStar 8.0 Crestron Certified for Crestron CCV2 and XiO Cloud Special Characteristics CEC Support; Clone Settings; DICOM Simulation; HDMI ARC; Scheduler Colour Versions Black Front Bezel, Black Back Cabinet Audio Integrated Speakers (10 W + 10 W) Shipping Content 2x AAA batteries; Display; HDMI Cable; Power Cable; Remote Control; Setup Manual Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension 3 Operating Hours 24/7 External Control AMX NetLinx Support; Crestron V2; HDMI CEC; HTTP Browser; PJLink; Scheduled Timer; SNMP Remote Management NaViSet Administrator 2 Security Disable HW Buttons; Disable IR Functionality; Emergency Notification; IEEE802.1X (LAN) -
Description Downloads Datasheet Download
