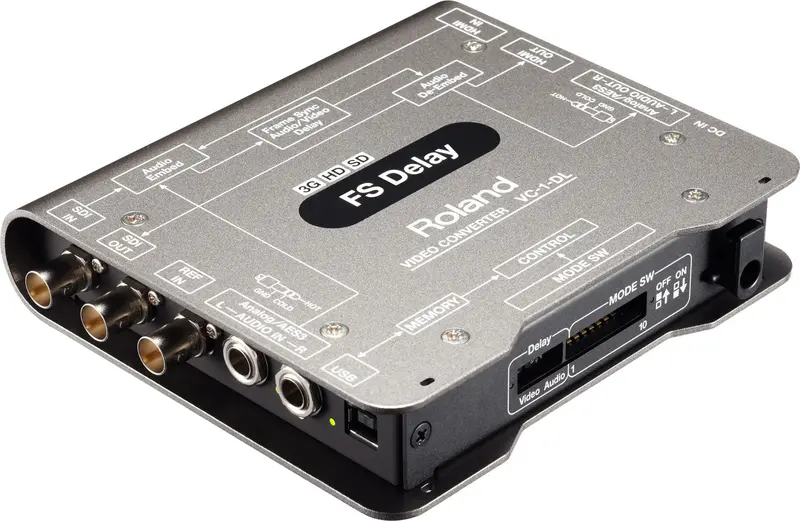

Roland Bi-Directional SDI/HDMI Video Converter with Delay and Frame Sync
Roland’s new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), and VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync).
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.
-
Feature Description Input SDI Connector BNC type x 1 HDMI Connector Type A (19 pins) x 1 Analog Audio Connector 1/4″ TRS phone type (balanced) x 1 pair (L/R) Digital Audio Connector 1/4″ TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector) Reference Connector BNC type x 1 Reference Signal Format Black Burst, Bi-level, Tri-level Reference Impedance 75 ohms Video Delay 0 to 4.5 frames Audio Delay 0 to 4.5 frames Audio Embedding Yes Audio De-embedding Yes Output SDI Connector BNC type x 1 HDMI Output Connector Type A (19 pins) x 1 Analog Audio Output 1/4″ TRS phone type (balanced) x 1 pair (L/R) Digital Audio Output 1/4″ TRS phone type (balanced) x 1 (Combined use with Analog Audio R ch Connector) SDI Input Signal Standards SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C SDI Input Video Format 1920×1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280×720/60p/59.94p/50p/30p/29.97p/25p, 720×487/59.94i, 720×576/50i Audio Format Linear PCM, 24 bits, 48 kHz, 16 ch *1 HDMI Input Video Format 1920×1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280×720/60p/59.94p/50p/30p/29.97p/25p, 720×480/59.94i, 720×576/50i HDMI Input Audio Format Linear PCM, 24 bit, 48 kHz, 8 ch *1 SDI Output Signal Standards SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C SDI Output Video Format 1920×1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280×720/60p/59.94p/50p/30p/29.97p/25p, 720×487/59.94i, 720×576/50i SDI Output Audio Format Linear PCM, 24 bits, 48 kHz, 16 ch *1 HDMI Output Video Format 1920×1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280×720/60p/59.94p/50p/30p/29.97p/25p, 720×480/59.94i, 720×576/50i HDMI Output Audio Format Linear PCM, 24 bit, 48 kHz, 8 ch *1 Analog Audio Input Level +4dBu Analog Audio Max Input Level +24dBu Analog Audio Input Impedance 110 ohms Analog Audio Output Level +4dBu Analog Audio Output Impedance 600 ohms Digital Audio Output Signal Format AES3, 16/24 bits, 32/48 kHz, 2 ch Digital Audio Output Impedance 110 ohms USB Connector USB Type B (Hi-Speed USB) x 1 Power Supply DC 9V Power Consumption 8W Operation Temperature +0 to +40 degrees Celsius Accessories AC adaptor, Power Cord, Rubber Foot x 4, Owner’s Manual Width 150 mm (5-15/16 inches) Depth 130 mm (5-1/8 inches) Height 30 mm (1-3/16 inches) Weight 500 g (1 lbs. 2 oz.) -
Description Downloads Roland Bi-Directional SDI/HDMI Video Converter with Delay and Frame Sync | VC-1-DL Brochure Downloads
