• Panasonic 0.380:1 Ultra Short Throw Projector Lens

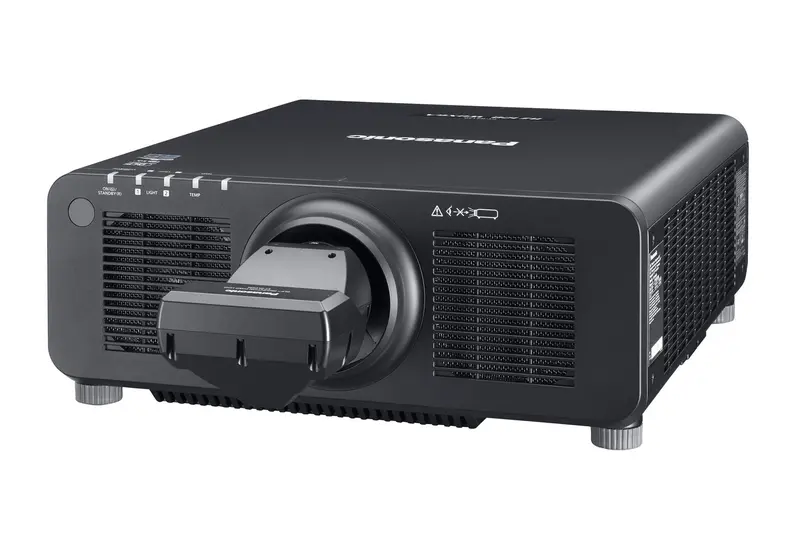

  Panasonic’s ET-DLE035 ultra-short-throw lens enables large-screen projection from a short distance. Applications greatly expand for digital signage in show windows, stores, train stations, and other locations. By mounting the ET-DLE035 ultra-short-throw lens onto a compatible Panasonic 1-Chip DLP™ projector, you can shorten the projection distance by approximately 60 % compared with the ET-DLE085 and ET-DLE080 short-throw lenses. This huge saving in space lets you project images in spots where you previously could not such as places where the ceiling is too high, or where there is not enough front or rear space for projecting.

• Specification	Details
  Lens Type	Ultra Short Throw Fixed Focus
  Throw Ratio	0.394:1 (XGA) 0.399:1 (WXGA) 0.380:1 (WUXGA) 0.378:1 (4K)
  F Value	2.0
  Focal Distance	5.3 mm
  Dimensions (W x H x D)	132 x 102 x 311 mm
  Lens Weight	Approx. 1.3 kg
  Compatible Projectors	PT-RQ7L, PT-RQ6L, PT-RZ7L, PT-RZ6L PT-RCQ10, PT-RCQ80, PT-RZ120, PT-RZ990 PT-RZ890, PT-RZ790, PT-RZ690, PT-RZ970 PT-RW930, PT-RX110, PT-RZ870, PT-RZ770 PT-RW730, PT-RZ660, PT-RW620, PT-RZ670 PT-RW630, PT-DZ870, PT-DW830, PT-DX100 PT-DW750, PT-DX820
