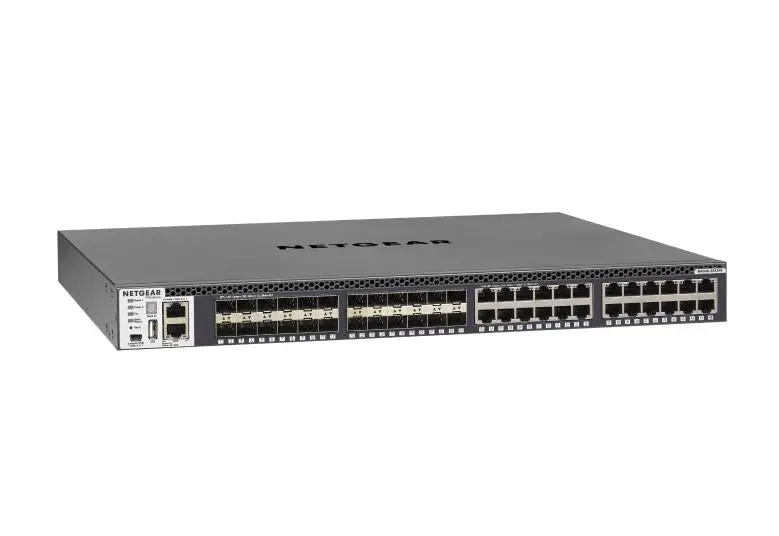

Netgear XSM4348S-100NES | 24-Port 10GBASE-T & 24xSFP+ Managed Stackable Switch
M4300-24X24F (XSM4348S)
24x10G and 24xSFP+ Managed Switch
Stackable Managed Switch with 24 Ports SFP+ and 24 Ports 10GbE Copper – IT Core & AV-over-IP
High Availability (HA)
Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
Multi-Resiliency
Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
PVST+ Interoperability
Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
Link Dependency
Enables or disables ports based on link state of different ports
Advanced IPv4/IPv6 security
Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
Half-Width ToR
Combine 2 half-width models in a single rack space for redundant Top-of-Rack
Simple GUI
Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
Flexible & Efficient
Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
Mix & Match Stacking
Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
Room to Grow
With PoE+ (30 watts per port), plug and play ports, and hot swap, you’re ready to grow whenever you need to.
Industry Standard
SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation
Zero Touch AV-over-IP
Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
No Delay
Non-Blocking Fabric for Near-Zero Switch Latency
NETGEAR IGMP Plus™
Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
Dedicated Design
ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com -
Feature Description Warranty NETGEAR ProSAFE® Limited Lifetime Hardware Warranty Hardware Replacement Lifetime Next Business Day Hardware Replacement Warranty Details Coverage, availability, and terms and conditions Support ProSUPPORT 24×7 Advanced Technical Support via phone for 90 days (Remote diagnostics). ProSUPPORT coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24×7 Advanced Technical Support via chat. Model Number XSM4348S Ports 24 Ports Copper 100M / 1G / 10G SFP+ Ports 24 Ports SFP+ 1G / 10G Modular Bay with PSU One (1) 250W Modular PSU included APS250W Switching Fabric 960 Gbps Fan Fixed Fan Front-to-Back 35.8dB Ethernet Out-of-band 1G port (Front) Console RJ45 RS232 (Front), Mini-USB (Front) Storage USB (Front) Management Platform Single-pane-of-glass NMS300 management platform with mass-configuration support Firmware and Configuration Dual firmware image and configuration file for updates with minimum service interruption -
Description Downloads Netgear XSM4348S-100NES 24x10G and 24xSFP+ Managed Switch Datasheet Downloads
