Netgear Xsm4348Cs-100Nes 48-Port 10G Managed Switch With 4 Shared Sfp+ Ports

Description

• Description
• Specifications
• Downloads

• Netgear 48-Port 10G Managed Switch | 4x SFP+, 960Gbps Fabric, IGMP Plus

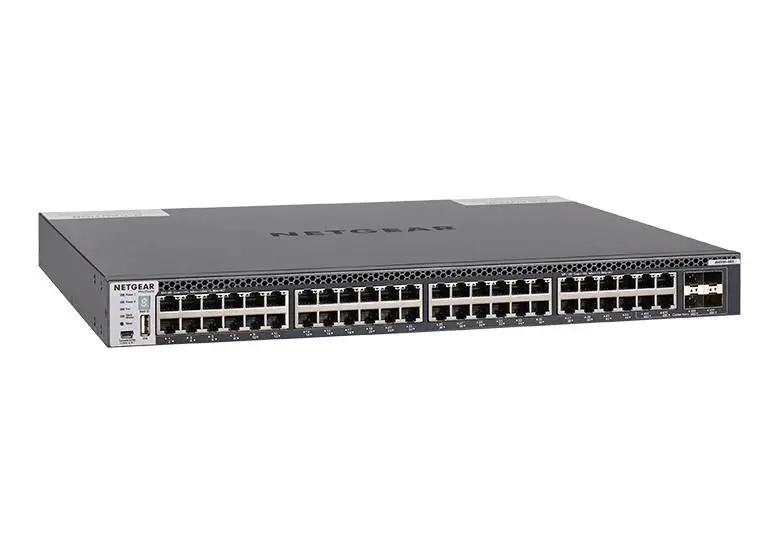

  M4300-48X (XSM4348CS)
  48x10G and 4xSFP+ (shared) Managed Switch
  Stackable Managed Switch with 48X 10G Ports – IT Core & AV-over-IP
  Business Continuity Management
  Full-width switches offer dual redundant, modular power supplies (select m4300 models)
  High Availability (HA)
  Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
  Multi-Resiliency
  Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
  PVST+ Interoperability
  Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
  Link Dependency
  Enables or disables ports based on link state of different ports
  Advanced IPv4/IPv6 security
  Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
  Simple GUI
  Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
  Flexible & Efficient
  Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
  Mix & Match Stacking
  Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
  Room to Grow
  With PoE+, plug and play ports, and hot swap, you’re ready to grow whenever you need to.
  Industry Standard
  SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
  Zero Touch AV-over-IP
  Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
  No Delay
  Non-Blocking Fabric for Near-Zero Switch Latency
  NETGEAR IGMP Plus™
  Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
  Dedicated Design
  ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

  Power Your Business
  48-Ports of 10GbE and non-blocking fabric provide latency free connections

  Business Continuity
  Redundant Modular PSU for reliability

  The M4300 Family
  Mix and match M4300 series switches to maximize your deployment opportunities.

  ProAV out of the Box
  Enjoy instant 1G/10G RX/TX end-point deployments with IGMP Snooping and NETGEAR exclusive IGMP Plus.

• Feature	Description
  Warranty	NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Coverage, availability, and terms and conditions.
  Support	ProSUPPORT 24×7 Advanced Technical Support via phone for 90 days (remote diagnostics). Coverage extendable by purchasing 1, 3, or 5-year contracts. Lifetime 24×7 Advanced Technical Support via chat.
  Model Number	XSM4348CS
  Ports	48 x RJ45 (100M / 1G / 10G)
  Shared SFP+ Ports	4 x SFP+ (1G / 10G)
  Modular Bay	2 Bays with One (1) 250W Modular PSU included (APS250W)
  Switching Fabric	960 Gbps
  Fan	Fixed Fan, Front-to-Back airflow, 40 dB
  Ethernet	Out-of-band 1G port (Back)
  Console (RJ45 RS232)	RJ45 RS232 (Back)
  Console (Mini-USB)	Mini-USB (Front)
  Storage (USB)	USB (Front)
  Management Platform	Single-pane-of-glass NMS300 management platform with mass-configuration support
  Firmware & Configuration Updates	Dual firmware image and configuration file for updates with minimal service interruption

• Description	Downloads
  Netgear XSM4348CS-100NES 48-Port 10G and 4xSFP+ (shared) Managed Switch Datasheet	Downloads
