Netgear Xsm4324Cs-100Nes: 24-Port 10G Managed Switch With 4X Shared Sfp+ Uplink Slots

Description

• Description
• Specifications
• Downloads

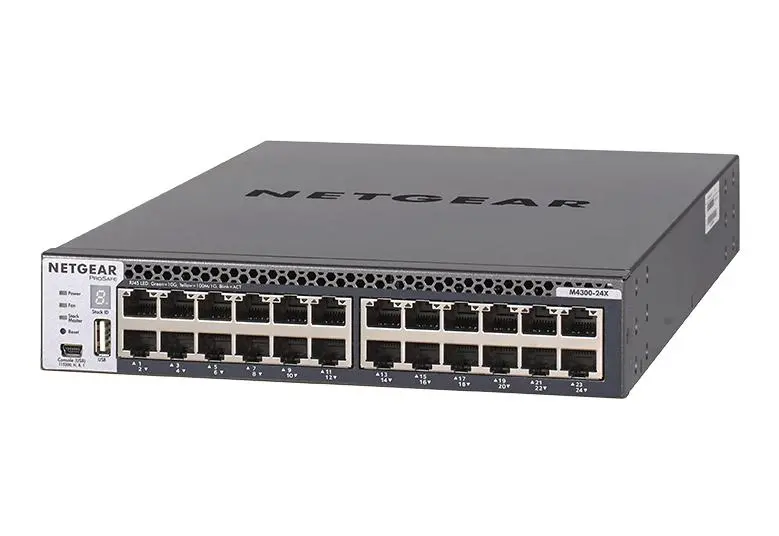

• Netgear XSM4324CS-100NES | 24-Port 10GBASE-T & 4xSFP+ Managed Stackable Switch


  M4300-24X (XSM4324CS)
  24x10G and 4xSFP+ (shared) Managed Switch
  Half-Width 24x10G Stackable Managed Switch with 24x10GBASE-T
  High Availability (HA)
  Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
  Multi-Resiliency
  Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
  PVST+ Interoperability
  Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
  Link Dependency
  Enables or disables ports based on link state of different ports
  Advanced IPv4/IPv6 security
  Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
  Half-Width ToR
  Combine 2 half-width models in a single rack space for redundant Top-of-Rack (select m4300 models)
  Simple GUI
  Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
  Flexible & Efficient
  Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
  Mix & Match Stacking
  Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
  Room to Grow
  With PoE+ (30 watts per port), plug and play ports, and hot swap, you’re ready to grow whenever you need to.
  Zero Touch AV-over-IP
  Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
  No Delay
  Non-Blocking Fabric for Near-Zero Switch Latency
  NETGEAR IGMP Plus™
  Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
  Dedicated Design
  ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

• Feature	Description
  Warranty	NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  Hardware Replacement	Lifetime Next Business Day Hardware Replacement
  Warranty Details	Coverage, availability, and terms and conditions
  Support	ProSUPPORT 24×7 Advanced Technical Support via phone for 90 days (remote diagnostics). Coverage can be extended by purchasing one, three, or five-year contracts. ProSUPPORT Lifetime 24×7 Advanced Technical Support via chat.
  Model Number	XSM4324CS
  Ports	24 Ports Copper 100M / 1G / 10G. 4 Ports SFP+ 1G / 10G (shared)
  Modular Bay with PSU	One (1) 250W Modular PSU included APS250W
  Switching Fabric	480 Gbps
  Fan	Fixed Fan Front-to-Back 37dB
  Ethernet	Out-of-band 1G port (Back)
  Console	RJ45 RS232 (Back), Mini-USB (Front)
  Storage	USB (Front)
  Management Platform	Single-pane-of-glass NMS300 management platform with mass-configuration support
  Firmware and Configuration	Dual firmware image and configuration file for updates with minimum service interruption

• Description	Downloads
  Netgear XSM4324CS-100NES 24x10G and 4xSFP+ (shared) Managed Switch Datasheet	Downloads
