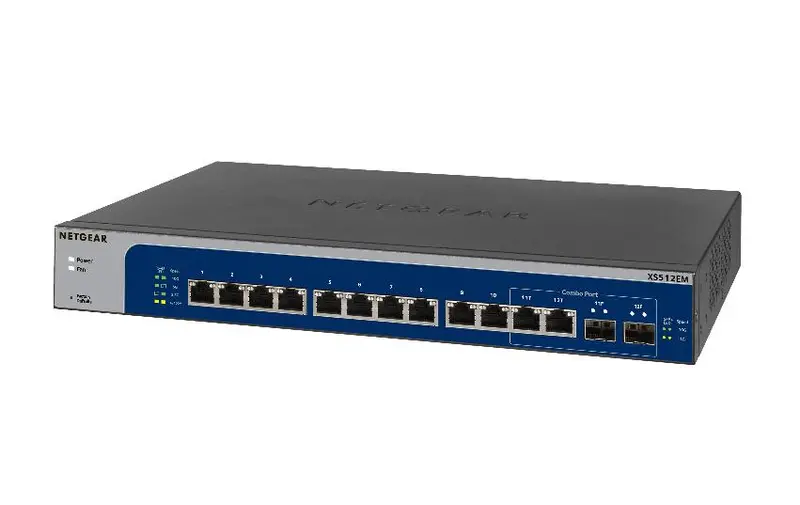

Netgear Xs512Em-100Eus — 12-Port Multi-Gigabit & 10G Ethernet Switch (10G/2.5G/1G)

Description

• Description
• Specifications
• Downloads

• Netgear 12-Port 10G Multi-Gigabit Ethernet Switch, 2 SFP+, QoS, VLAN, IGMP Snooping


  10GBASE-T Connections
  Support low-latency, line-rate 10G Copper “BASE-T” technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Cost-effectively migrate current network to 10G capacity by utilizing the existing Cat 6 RJ45 short connections (up to 45m) and Cat 6a / Cat 7 connections up to 100m.
  10GBASE-X SFP+ ports
  Providing flexibility to uplink to 10G-capable core or aggregation switches that support fiber links. Backward compatible to Gigabit fiber. Support copper or fiber modules.
  Multi-Gigabit Connections
  Support line-rate 2.5G/5G “NBASE-T” technology with backward compatibility to Gigabit Ethernet and Fast Ethernet. Upgrade your current network without upgrading your existing cabling, thanks to Multi-Gigabit you will be able to run 5G and 2.5G over connections up to 100m.
  Comprehensive QoS Features
  Advanced controls for optimized network performance and better delivery of mission-critical traffic such as voice and video. Ingress and egress rate limiting allows for bandwidth shaping for mitigating network resources constraints or for optimizing guest access bandwidth on the network.
  Port-based or 802.1p-based prioritization
  Layer 3-based (DSCP) prioritization
  Port-based ingress and egress rate limiting
  IGMP Snooping
  For improved network efficiency on delivering multicast traffic. Save cost and improve network efficiency by ensuring multicast traffic only reaches designated receivers without the need of an extra multicast router.
  Loop Detection / Auto DoS Prevention
  Detect accidental network loops and protect against DoS (Denial of Service) attacks.
  Port-based & 802.1Q-based VLANs
  Segment network into smaller groups for more secure and efficient use of network resources.
  Port Trunking / Link Aggregation (LAG)
  Build up bigger bandwidth to support aggregated uplink/downlink traffic.
  Energy Effiecient Ethernet (IEEE 802.3az)
  For maximum power savings and reduced energy costs.
  Port Mirroring
  For better and quicker network diagnostics and troubleshooting.
  Cable Test
  Easily identify bad Ethernet cables.



• Feature	Description
  Dimensions (W x D x H)	328 x 204 x 43 mm (12.9 x 8.0 x 1.7 in)
  Weight	2.51 kg (5.54 lb)
  100M/1G/2.5G/5G/10G RJ-45 Copper Ports	12
  SFP+ Ports	2 (shared)
  Form Factor	Rackmount
  Packet Buffer Memory	3 MB
  Bandwidth	240 Gbps
  MAC Address Database Size	32K
  VLAN (# Supported)	64
  Number of LAGs & Members	8 LAGs with max 8 members in each
  Supported Multicast Groups	128
  Max Source Ports for Mirroring	11 (many to one)
  Fan(s)	2 (active fans)
  Energy Efficient Ethernet	Yes (IEEE 802.3az)
  Max Power Consumption	76.56W
  LEDs	Power, Speed, Fan, Link/Activity
  Acoustic Noise Level	29.3 dBA @ 25°C
  Operating Temperature	0° to 50° C
  Electromagnetic Compliance	Class A
  Warranty	NETGEAR ProSAFE® Limited Lifetime Hardware Warranty. Lifetime Next Business Day Hardware Replacement. Coverage, availability, and terms and conditions.
  Support	ProSUPPORT 24×7 Advanced Technical Support via phone for 90 days (remote diagnostics). Extendable 1, 3, or 5 years. Lifetime 24×7 Advanced Technical Support via chat.

• Description	Downloads
  Netgear XS512EM-100EUS 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch Datasheet	Downloads
  Netgear XS512EM-100EUS 12-Port 10G-Gigabit/Multi-Gigabit Ethernet Switch User Manual	Downloads
