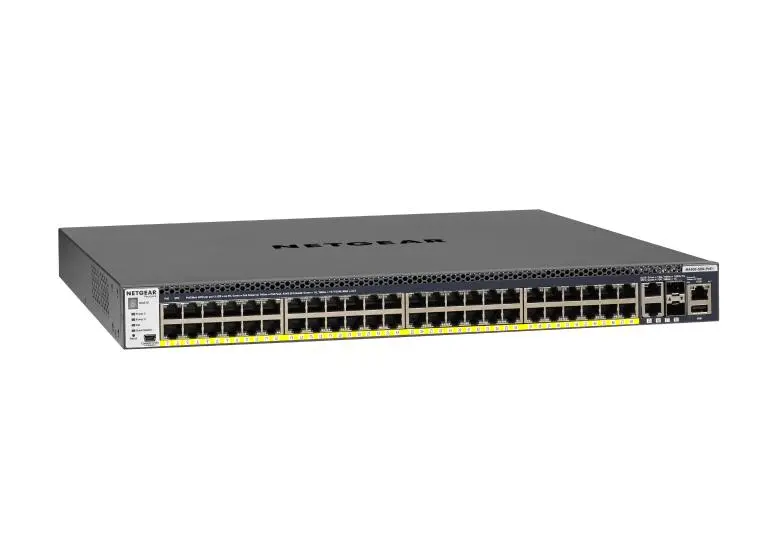

Netgear Gsm4352Pa-100Nes: 48-Port Gigabit Poe+ Managed Switch (480W), Dual 10Gbase-T & Dual Sfp+ Uplinks

Description

• Description
• Specifications
• Downloads

• Netgear GSM4352PA Managed Switch – 48x1G PoE+ (480W, Expandable to 720W) with 2x10GBASE-T & 2xSFP+, Stackable Layer 3 Design


  M4300-52G-PoE+ (GSM4352PA)
  48x1G PoE+ 480W, 2x10G, 2xSFP+ Managed Switch
  Full-Width 48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU) (GSM4352PA)
  Business Continuity Management
  Full-width switches offer dual redundant, modular power supplies (select m4300 models)
  High Availability (HA)
  Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
  Multi-Resiliency
  Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
  PVST+ Interoperability
  Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
  Link Dependency
  Enables or disables ports based on link state of different ports
  Advanced IPv4/IPv6 security
  Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
  Fiber Ports
  48 SFP+ Fiber ports have 1G/10G speeds & 2x 10Gb Copper
  Simple GUI
  Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
  Flexible & Efficient
  Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks
  Mix & Match Stacking
  Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
  Room to Grow
  With PoE+, plug and play ports, and hot swap, you’re ready to grow whenever you need to
  Industry Standard
  SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
  Zero Touch AV-over-IP
  Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
  No Delay
  Non-Blocking Fabric for Near-Zero Switch Latency
  NETGEAR IGMP Plus™
  Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
  Dedicated Design
  ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

• Feature	Description
  Warranty	NETGEAR ProSAFE® Limited Lifetime Hardware Warranty
  Next Business Day Hardware Replacement	Coverage, availability, and terms and conditions
  Support	ProSUPPORT 24×7 Advanced Technical Support via phone for 90 days (remote diagnostics). Extendable with 1, 3, or 5-year contracts. Lifetime 24×7 Advanced Technical Support via chat.
  Hardware Specifications	48x1G PoE+ Stackable Managed Switch with 2x10GBASE-T and 2xSFP+ (550W PSU)
  Ordering Number	GSM4352PA
  Acoustics	39.8 dB @ 25°C (77°F)
  Power Consumption (Max)	865 Watts
  1G RJ45 Ports	48 x 10/100/1000
  10G RJ45 Ports	2 x 10GBASE-T (Fast Ethernet, 1G, 10G)
  10G Fiber SFP+ Ports	2 x SFP+ (1G and 10G speeds)
  Power over Ethernet	48 x PoE+ (30W per port)
  PoE Budget	480W with 1 PSU 480W with 2 PSUs in RPS mode 720W with 2 PSUs in EPS mode
  External Power Redundancy	RPS4000v2 for redundancy (RPS) when 2 internal PSUs are used in EPS mode
  Feature Set	Layer 3 (static, policy-based, RIP, OSPF, VRRP, PIM dynamic routing)
  Management Ports	1G Ethernet OOB service port (RJ45) RS232 serial RJ45 (console) Mini-USB console USB for storage, logs, config, or image files
  Form Factor	Full width with dual, redundant modular PSUs

• Description	Downloads
  Netgear GSM4352PA-100NES 48x1G PoE+ 480W, 2x10G, 2xSFP+ Managed Switch Datasheet	Downloads
