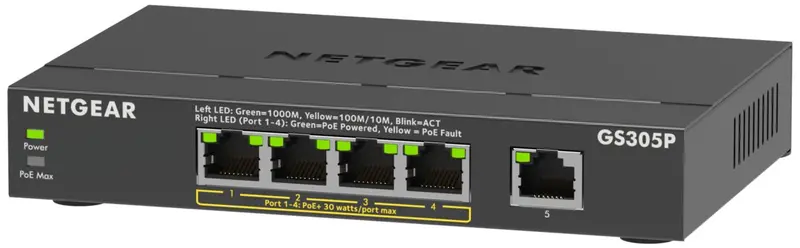

Netgear Gs305Pv3 5-Port Gigabit Poe Switch – 300W Budget Model (Gs305P-300Eus)

Description

• Description
• Specifications
• Downloads

• 4 PoE+ Ports With 63W Budget For IP Devices

  ETHERNET PORT CONFIGURATION
  5 Gigabit ports
  PLUG-AND-PLAY
  Simple set up with no software to install or configuration needed and zero maintenance
  FULL PERFORMANCE
  Non-blocking switching architecture for maximum throughput at wire speed

  POWER-OVER-ETHERNET
  4 PoE+ ports with 63W total power budget to power wireless AP, IP Cameras, IP Phones and much more

  PoE POWER AUTO-BALANCE AND ALLOCATION
  NETGEAR’s unique PoE technology automatically balances the PoE power at the most granular level on each port, depending on the device needs.

  SILENT OPERATION
  The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments

  ENERGY EFFICIENT
  Designed to optimize power usage lowering its cost to operate.

  VERSATILE MOUNTING OPTIONS
  Supports desktop and wall placement. Includes wall mount kit in the box

  STANDARDS-BASED DESIGN
  Ensure interoperability with any standards-based PDs

• Dimensions (W x D x H)	158 x 101 x 27 mm (6.2 x 4.0 x 1.1 in)	Weight	0.40 kg (0.88 lb)
  Speed	100Mbps / 1G	Number of Ports	5
  PoE+	4 Ports @ 30W Each (Until Budget Met)	PoE Budget	Up to 63W Total
  Energy Efficient Ethernet (IEEE 802.3az)	Yes	Jumbo Frame Support	9,216 bytes
  Queue WRR Ratio	1:2:4:8	MAC Table Size	2K
  Packet Buffer Size	128 KB	IEEE 802.1p QoS	Yes
  Power Consumption (Max / Standby)	66.78W / 1.02W	Operating Temperature	0–40°C (32°F – 104°F)
  MTBF	4,113,947 hrs (≈469 years)	FCC Class	Class B
  Fans	0 (Fanless)	Acoustic Noise @25°C	Fanless
  Warranty	3-Year Warranty	Support	ProSUPPORT 24×7 Advanced Technical Support (90 Days), Extendable

• Description	Downloads
  Netgear 300 GS305Pv3 5 Ports Ethernet Switch | GS305P-300EUS DataSheet	Download
