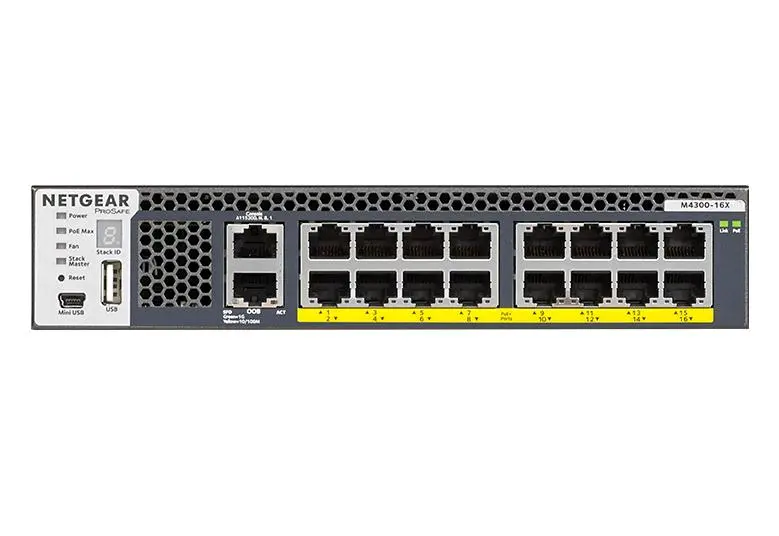

Netgear Av M4300-16X Multi-Gigabit Managed Switch With Poe+ (299W)

Description

• Description
• Specifications
• Downloads

• Netgear AV M4300-16X Managed Switch | 16x Multi-Gig PoE+, 199W, 10G/5G/2.5G


  High Availability (HA)
  Non-stop forwarding (NSF) virtual chassis architectures with hitless failover across the stack
  Multi-Resiliency
  Stacking and distributed link aggregation allow for zero downtime and load balancing capabilities
  PVST+ Interoperability
  Per VLAN Spanning Tree and Per VLAN Rapid Spanning Tree (PVSTP/PVRSTP)
  Link Dependency
  Enables or disables ports based on link state of different ports
  Advanced IPv4/IPv6 security
  Malicious code detection, DHCP Snooping, IP Source Guard protection and DoS attacks mitigation
  299W PSU
  Ships with 299W PSU APS299W installed
  Optional 600W PSU APS600W
  Half-Width ToR
  Combine 2 half-width models in a single rack space for redundant Top-of-Rack
  Simple GUI
  Full- functional Web console (GUI) for IT admins who prefer an intuitive graphical interface
  Flexible & Efficient
  Line-rate Spine and Leaf topologies offer many possibilities for server rooms, branch collapsed cores, or at the edge of growing networks.
  Mix & Match Stacking
  Stack between 10/40 Gigabit and 1 Gigabit models using any 10G/40G port, with any media type (RJ45, SFP+, DAC cables). Vertical, horizontal, manage as one unit
  Room to Grow
  With PoE+, upgradeable PSU plug and play ports, and hot swap, you’re ready to grow whenever you need to.
  Industry Standard
  SNMP, RMON, MIB, LLDP, AAA, sFlow, RSPAN and PTPv2 1-step transparent clock implementation (select M4300 models)
  Full PoE+ Provisioning
  All (16) 10G/Multi-gig ports can provide 30W of PoE+ power (199W budget)
  Zero Touch AV-over-IP
  Pre-configured for Out-of-Box L2 Multicast (SDVoE-ready)
  Pre-configured for Out-of-Box Multicast/IGMP
  No Delay
  Non-Blocking Fabric for Near-Zero Switch Latency
  NETGEAR IGMP Plus™
  Prevent network flooding with effortless multicast implementation of Layer 2 Multicast
  Dedicated Design
  ProAV Engineering Services for AV Network Design and Install Support ProAVDesign@NETGEAR.com

  Power Your Business
  The M4300 series switches provide full PoE+, with 30 watts per port.

  Flex Your Multi-Gig
  Muscle
  This family of switches automatically selects the highest performance per port from 100M, 1Gb, 2.5Gb, 5Gb, and 10Gb.

  The M4300 Family
  Mix and match M4300 series switches to maximize your deployment opportunities.

  ProAV out of the Box
  Enjoy instant 1G/10G RX/TX end-point deployments with IGMP Snooping and NETGEAR exclusive IGMP Plus.

• Feature	Description
  Number of PoE Ports	16x 10GBASE-T PoE+
  PoE Power per Port	Up to 30 Watts
  Total PoE Budget	199 Watts
  Ports	16 Ports RJ45 PoE+ Multi-Gigabit (100M/1G/2.5G/5G/10G)
  Modular Bay	1 Modular Bay with 299W Modular PSU (APS299W) included, optional APS600W for 500W Budget
  Rack Mount	1-unit 1U / 2-unit 1U Rack Mount (Included)
  Switching Fabric	320 Gbps
  Fan	Fixed Fan, Front-to-Back airflow, 35 dB
  Ethernet	Out-of-band 1G port (Back)
  Console (RJ45 RS232)	RJ45 RS232 (Back)
  Console (Mini-USB)	Mini-USB (Front)
  Storage (USB)	USB (Front)
  Management Platform	Single-pane-of-glass NMS300 platform with mass-configuration support
  Firmware & Configuration Updates	Dual firmware image and configuration file for updates with minimal service interruption

• Description	Downloads
  Netgear AV M4300-16X 16x Multi-Gig, PoE+ (299W) Managed Switch Datasheet	Downloads
