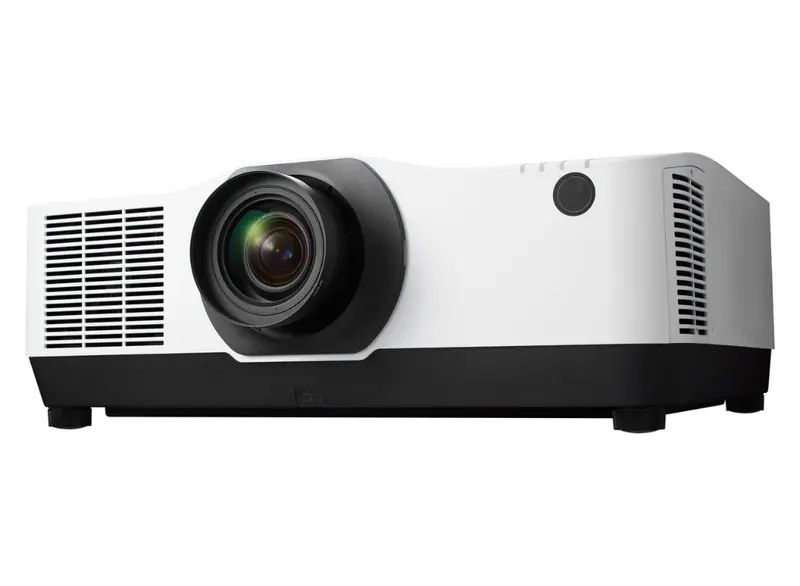

NEC PA1004UL-WH Professional Advanced LCD Laser Installation Projector, White | 10000 Lumens
A new class of silent projection
Now even larger spaces can benefit from NEC’s innovation in super-silent technology with the 10,000 lumens PA1004UL laser projector, ensuring all attention is focused on the stunning image delivery.
Featuring unprecedented White Point performance, factory pre-calibrated for the perfect white, 12-bit colour signal processing and wide colour space, the audience will experience extraordinarily vivid colour saturation and contrast levels.
The enhanced sealed optical engine allows a filter-free design, IP5X rated against dust ingress – no possibility of dust contaminating the LCD panels for long-term picture stability and brilliant colour brightness. What’s more, with our filterless LCD projector design and no lamp replacement, service costs are dramatically reduced for a low cost of ownership and up to 20,000 hours life-time.
Fully compatible with previous generation lamp-based PA Series mechanical lenses, NEC customers can easily make the transition to benefit from the latest laser technology. The PA1004UL is a professional installation projector featuring advanced installation capabilities as demanded by higher education, leisure and museum applications.
Benefits
No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling, 3D support and camera based blending/stacking up to 4K.
-
Category Details Projection Technology 3LCD Technology Native Resolution 1920 x 1200 (WUXGA) Aspect Ratio 16:10 Contrast Ratio 3000000:1 Brightness 9000 Lumen (approx. 80% in Eco Mode), with std. optional lens; 10000 Lumen in Boost Mode; compliant with ISO21118-2012 Lamp Laser Light Source Light Source Life [hrs] 20000 Lens 4 motorized lens options; 5 manual lens options Lens Adjustment Motorized and manual (depending on lens) Lens Shift H:±20, V:+10,-50 Keystone Correction +/- 40° manual horizontal / +/- 40° manual vertical Projection Factor Depending on lens selection (std. option NP41ZL at 1.3-3.02:1) Projection Distance [m] 0.7 – 50.9 Screen Size (diagonal) [cm]/[inch] Maximum: 1,270 / 500″; Minimum: 101.6 / 40″ Zoom Motorized and manual (depending on lens) Focus Adjustment Motorized and manual (depending on lens) Supported Resolutions Various resolutions from VGA to 4k, including 1080i/50/60, 1080p/24/25/30/50/60, 1920×1200 (WUXGA), 2048 x 1080 (2k), 2560 x 1600 (WQXGA), 4096 x 2160 (4k) Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 48-120 Hz Connectivity RGB (analog): 1 x Mini D-sub 15-pin, Digital: 1 x DisplayPort, 1 x HDBaseT, 2 x HDMI™; Audio: DisplayPort Audio, HDBaseT audio, HDMI audio, 3.5 mm Stereo Mini Jack Remote Control Functions Audio Control, Digital Zoom, Geometric Correction, etc. Power Supply 100-240 V AC; 50 – 60 Hz Power Consumption [W] 725 (Normal) / 395 (Eco) / 0.8 (Network Stand-by) / 0.28 (Stand-by) Dimensions (W x H x D) [mm] 599 x 208 x 490 (without lens and feet) Weight [kg] 24.4 Fan Noise [dB (A)] 32 / 35 (Eco / Normal) Colour Versions Black; White Operating Conditions Temperature: 0 to 40°C; Humidity: 20 to 80% non-condensing Storage Conditions Temperature: -10 to 50°C; Humidity: 20 to 80% non-condensing Safety and Ergonomics CE; EAC; ErP; RoHS; TUEV Type Approved Special Characteristics 3D ready, 4K/60Hz interfaces, Active 3D, AMX Beacon, Cinema Quality Picture processing, Crestron RoomView, etc. Energy Efficiency ECO scheduler, Intelligent power management, Less than 0.3W stand-by power Ecological Standards ErP compliant Warranty Projectors: 3 years pan-European service; Light Source: 3 years or 10000h (whichever comes first) Shipping Contents IR Remote Control (RD-480E); Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM Optional Accessories 10 optional bayonet lenses; Cable Cover (NP13CV-W, NP13CV-B); Universal Ceiling Mounts (PJ02UCMPF) Lenses – Motorized NP40ZL (0.79-1.11:1); NP41ZL (1.3-3.02:1); NP43ZL (2.99-5.93:1); NP44ML-PA4 (0.32:1); NP50ZL (0.6-0.75:1) Lenses – Manual NP11FL (0.79:1); NP12ZL (1.16-1.52:1); NP13ZL (1.46-2.95:1); NP14ZL (2.9-4.68:1); NP15ZL (4.59-7.02:1) -
Description Downloads Datasheet Downloads
