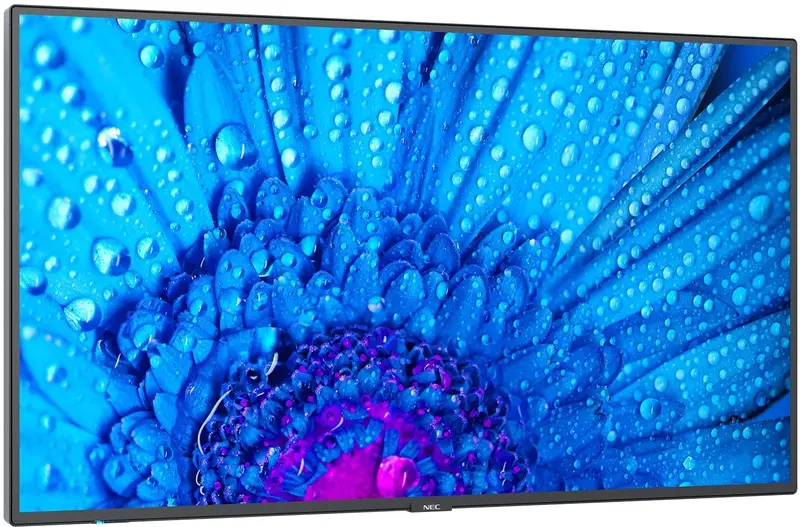

• NEC MultiSync® M651 LCD 65″ 4K Message Large Format Display

  Intuitive professional content delivery
  Great first impressions can make all the difference; presenting your business in the best possible way will boost your brand. With slim, modern styling, 24/7 operation and high haze panel to reduce reflections when ambient light is high, the M series is the professional way to deliver your message, yet at an attractive price point.
  With the optional NEC MediaPlayer or the more powerful Intel® Smart Display Module (Intel® SDM) computing device, you are primed and ready for intuitive signage creation delivering real-time media playback for exceptional visual experiences. For advertising, infotainment and meeting room applications, the M Series provides powerful, upgradable functionality and all the aesthetic appeal to effortlessly reflect your brand credentials.
  Modern and slim design – robust yet elegant allowing for an unobtrusive integration into any application and environment.
  Secure remote management – control your devices remotely and securely using NEC NaviSet Administrator 2; proactively manage maintenance requirements saving time and resources
  Unhindered readability – no reflections from windows or other light sources means no disruption to the visibility of signage content or meeting room presentation
  Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.
  Future Ready Connectivity – featuring multiple industry standard digital and analogue signal inputs for flexible integration into AV infrastructures.

• Category	Specification
  DISPLAY
  Panel Technology	IPS with Direct LED backlights
  Screen Size	65″ / 163.9 cm
  Aspect Ratio	16:9
  Brightness	500 cd/m²
  Contrast Ratio	≥ 8000:1
  Viewing Angle	178° horizontal / 178° vertical (typ. at contrast ratio 10:1)
  Colour Depth	1.076 bn (10bit)
  Response Time	8 ms
  Panel Refresh Rate	60 Hz
  Haze Level	Pro (28%)
  Supported Orientation	Face Up 2; Landscape; Portrait
  RESOLUTION
  Native Resolution	3840 x 2160
  Supported Resolutions	See list above
  SYNCHRONISATION RATE
  Horizontal Frequency	26 – 91.1 kHz
  Vertical Frequency	23 – 86 Hz
  CONNECTIVITY
  Input Video Digital	1 x DisplayPort (with HDCP); 2 x HDMI (with HDCP)
  Input Audio Digital	1 x DisplayPort; 2 x HDMI
  Input Control	LAN 100Mbit; RS232; remote control wire (3.5mm jack)
  Input Data	1 x USB 2.0 (MediaPlayer)
  Output Audio Analogue	1 x 3.5 mm jack
  Input Detect	Custom; First; Last
  OPEN MODULAR INTELLIGENCE
  Intel® SDM	Accepts Intel® Smart Display Modules Large and Small up to 66 W
  Compute Module Slot	RPi Compute Module 4
  SENSORS
  Ambient Light Sensor	Integrated, triggered actions programmable
  Temperature Sensor	Integrated, 3 sensors, triggered actions programmable
  ELECTRICAL
  Power Consumption	120 W (shipping)
  Power Savings Mode	< 0.5 W; < 2 W (Networked Standby)
  Power Management	VESA DPMS
  Power Supply	100-240 V AC; 50/60 Hz; internal
  ENVIRONMENTAL CONDITIONS
  Operating Temperature	+0 to +40 °C
  Operating Humidity	20 to 80% RH (No condensation)
  Storage Humidity	10 to 90% RH (No condensation)
  Storage Temperature	-20 to 60 °C
  MECHANICAL
  Dimensions	1,458.4 x 836.2 x 62.6 mm
  Weight	37.1 kg
  Bezel Width	12 mm (top); 12.5 mm (left and right); 15.6 mm (bottom)
  VESA Mounting	400 x 400 mm (FDMI); M8
  Ingress Protection	IP5x (front); IP2x (back)
  MEDIAPLAYER
  Supported File Storage	USB 2.0 / FAT16, FAT32
  Supported Image Formats	JPG (baseline, progressive, RGB, CMYK)
  Supported Video Formats	See list above
  Supported Audio Formats	MP3 (MP3); max. bit-rate 320 kBit/s
  AVAILABLE OPTIONS
  Accessories	See list above
  GREEN FEATURES
  Energy Efficiency	Energy consumption: 116 kWh/1000 h; Energy efficiency class: G
  Ecological Standards	EnergyStar 8.0
  ADDITIONAL FEATURES
  Special Characteristics	DICOM Simulation; HDMI ARC; Powered USB Port; Removable Logo
  Safety and Ergonomics	See list above
  Pixel Failure Class	ISO 9241-307, Class 1
  Audio	Integrated Speakers (10 W + 10 W)
  Shipping Content	See list above
  Warranty	3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
  Operating Hours	24/7
  External Control	See list above
  Remote Management	Automated Email Alerts; NEC NaViSet Administrator 2
  Security	Disable HW Buttons; Disable IR Functionality; Emergency Notification
  Resistance to Fire	Metal backcover, plastic material certified acc. to UL94-5VB
