• NEC MultiSync® BT421 LCD 42″ Stretched Large Format Display




  Where space is limited but not your message

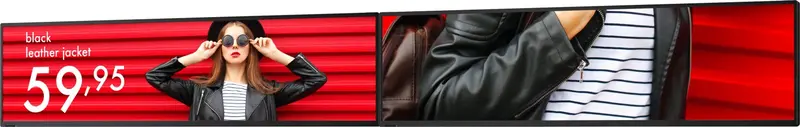

  Delivering space efficient visualisation for constricted environments such as corridors and retail shelves, this 42” bartype display offers a distinctive ultra-wide 16:4 screen ratio. High adaptability extends to both landscape and portrait orientation ideal for space-limited areas, yet content creation remains easy and effortless. Content is crisp and clear with compelling readability even in bright ambient light conditions with high brightness levels of 700 cd/m² combined with an anti-glare surface. Its modern, slim design forms an elegant digital surface which perfectly complements the surrounding architecture and integrates seamlessly into any environment.
  The 42” MultiSync® BT421 is the super wide choice for space efficient digital signage in retail environments, transportation hubs, quick service restaurants and all other public areas where space is limited.



  Benefits
  Space efficient display solution – the ultra-wide screen ratio of 16:4 with a display height of just 28.9 cm allows installation within constricted spaces, providing crisp and eye-friendly visualisation.
  Easy content adaption – the integrated trim function enables 16:9 content to be used whilst actively displaying the upper or lower area for display of native 1920 x 480 content.
  Cost efficient media playback flexibility – divide a single Full HD content into two separate contents via daisy chaining for back to back installations, needing only one source to feed two screens for cost saving benefits.
  Superb readability in bright light environments – crisp playback of content thanks to high brightness output of 700 cd/m² and anti-reflective screen surface delivers clearly visible messages even under varying and demanding ambient conditions.
  Mission-critical 24/7 ready operation – the meticulous selection of industrial-grade components and careful design focused on demanding usage scenarios accompany an impressive and continuous viewer experience.

• Category	Specification
  Panel Technology	VA with Direct LED backlights
  Active Area (mm)	1,039.7 x 259.9
  Screen Size	42 inch / 107.2 cm
  Aspect Ratio	16:4 (Ultra-Wide)
  Pixel Pitch	0.542 mm
  Brightness	700 cd/m²
  Contrast Ratio	4000:1 (typ.)
  Viewing Angle	178° H / 178° V
  Colour Depth	1.073 billion (10bit)
  Response Time	8 ms (grey-to-grey)
  Haze Level	Pro (44%)
  TNi	110°C
  Orientation	Landscape, Portrait
  Native Resolution	1920 x 480
  Supported Resolutions	640×480 to 1920×1200 incl. 1920×480, 1920×960
  Digital Video Inputs	2 x DVI-D (with HDCP)
  Control Inputs	LAN (100Mbit), RS232
  Digital Video Output	1 x DVI-D (loop-through)
  Power Consumption	50 W (shipping), 75 W (max)
  Standby Power	< 0.5 W / < 2 W (Networked Standby)
  Power Management	VESA DPMS
  Operating Temp.	0°C to 50°C
  Operating Humidity	20% to 90%
  Dimensions (mm)	1,059.9 x 288.9 x 64.7
  Weight (kg)	9.3
  Bezel Width (mm)	14.7 (bottom), 7.9 (sides), 9.8 (top)
  VESA Mount	200 x 100 mm & 400 x 100 mm (FDMI), M6, 4 holes
  Accessories	Ceiling Mounts, Wall Mounts (PDW BT L)
  Certifications	CE, RoHS, REACH, SASO
  Energy Efficiency	59 kWh/1000h, Class G, LED backlight
  Green Standards	Energy-efficient LED, NaViSet Admin 2
  Special Features	Trim Function, NaViSet Admin 2 (free)
  Warranty	3 years incl. backlight (optional 4th & 5th year extension)
  Operating Hours	24/7 continuous use

• Description	Downloads
  NEC MultiSync® BT421 LCD 42″ Stretched Large Format Display | 60004365 DataSheet	Downloads
