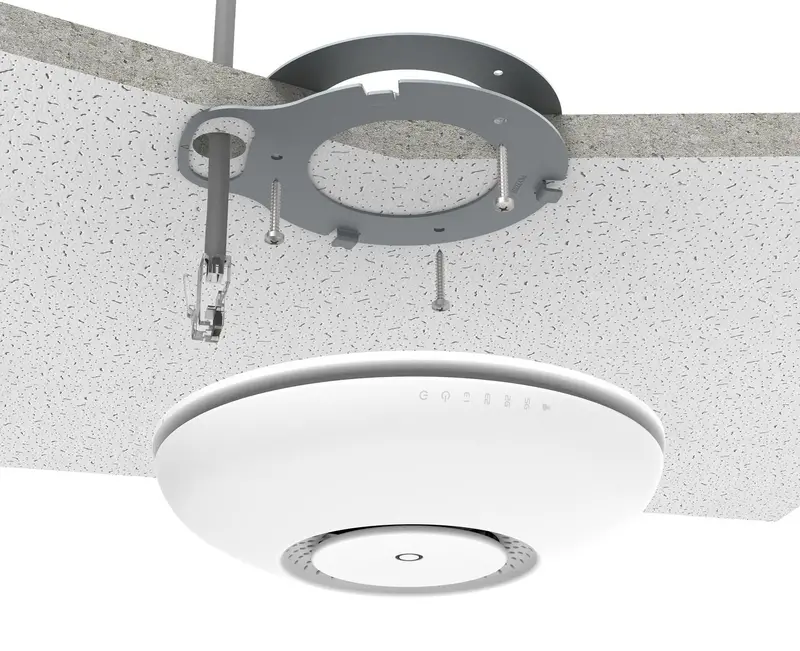

Slim Dual-Band AC Ceiling Access Point with Gigabit Ports, PoE In/Out & 360° Coverage
IPQ-4018, 128MB RAM, 16MB Flash, Dual-band 2412-2484MHz / 5150MHz-5875MHz, 2 x 10/100/1000, PoE, 802.11ac, White
The cAP ac is a very capable and powerful wireless access point that looks beautiful on both walls and ceilings. The concurrent dual band wireless radio supports dual chain 2 GHz 802.11b/g/n and 5 GHz in a/n/ас standards, and will provide coverage in 360 degrees around it.
Even though the radio supports repeater mode, the two Ethernet ports give you the ability to extend your network with cables, even if PoE power is required, since the cAP ac supports 802.3af/at PoE input on the first port, and passive PoE output on the second port. Device supports IPsec hardware acceleration too. -
Antenna features Integrated antenna Antenna gain level (max) 2.5 dBi Antenna type Internal Antennas quantity 4 Certification CE, FCC, IC, EAC, ROHS Internal No LED indicators Yes Placement Ceiling, Wall Product colour White 2.4 GHz Yes 5 GHz Yes Ethernet LAN data rates 10, 100, 1000 Frequency band 2.412 – 2.484, 5.15 – 5.875 GHz Maximum data transfer rate 867 Mbit/s Max data rate (2.4 GHz) 300 Mbit/s Max data rate (5 GHz) 867 Mbit/s Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at Transmitting power 26 dBmW Country of Origin Taiwan EU ECCN Code N/A Tariff No. 8517620000 UNSPSC Code 43222640 US ECCN Code 5A992 Operating temperature (T-T) -40 – 50 °C Depth Verified 18.3 cm Gross Weight Verified 0.714 kg Height Verified 6.4 cm Width Verified 26.5 cm AC adapter included Yes Mounting kit Yes PoE adapter included Yes Built-in processor Yes Flash memory 16 MB Internal memory 128 MB Operating system installed RouterOS Processor frequency 716 MHz Processor model IPQ4018 Ethernet LAN (RJ-45) ports 2 USB 2.0 ports quantity 0 AC input voltage 17 – 57 V Input voltage 17 – 57 V Output voltage 57 V Power consumption (max) 13 W Power over Ethernet (PoE) Yes PoE type supported Active PoE, Passive PoE Net Weight (Product, kg) 0.63 kg Product Depth 3 cm Product Height 13.6 cm Product Width 13.6 cm Brand Name MikroTik Warranty 15 Month(s) Main category Network Subcategory Wireless Network Subcategory Wireless Access Points -
Description Downloads MikroTik cAP ac Dual-Band Ceiling Access Point | RBCAPGI-5ACD2ND DataSheet Download MikroTik cAP ac Dual-Band Ceiling Access Point | RBCAPGI-5ACD2ND User Manual Download
