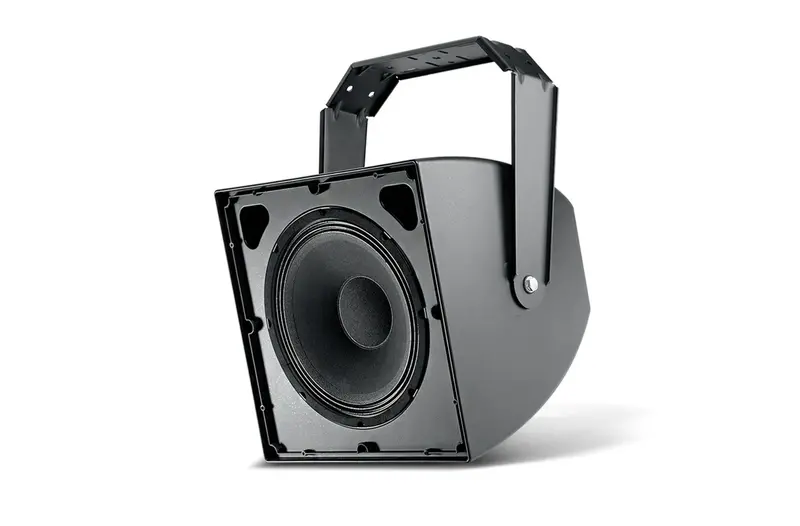

JBL SCS 12 | 12″ Coaxial 2-Way Spatially Cued Cinema Surround Loudspeaker
Spatially Cued Surround Loudspeaker 2-Way Coaxial with 12″ LF
The SCS 12 is a coaxial-driver, 2-way, fullrange cinema surround loudspeaker ideal for multi-channel surround formats and is designed for overhead installation as well as for standard on-wall installations.
Features
400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
Consistent 100° x 100° broadband pattern control
Extraordinary clarity cinema surround with extended frequency response for special effects
Components:
• 300 mm (12 in) woofer with Kevlar reinforced cone and 75 mm (3 in)
voice coil.
• 25 mm (1 in) exit compression driver with unique patented design and
high temperature polymer diaphragm.
High-Power passive crossover network
Overload protection -
Frequency Range (±3 dB) 70 Hz – 20 kHz Frequency Range (-10 dB) 55 Hz – 20 kHz Coverage Pattern 100° x 100° Directivity Factor (Q) 10.1 (1 k – 16 kHz) Directivity Index (DI) 9.5 dB (1 k – 16 kHz) Power Rating 400 W (1600 W peak, 2 hrs) ; 250 W (1000 W peak, 100 hrs) Power Handling (2Hr AES Rating) 400 W Sensitivity 96 dB (Ave. 70 Hz – 20 kHz) Maximum SPL (1m) 122 dB (peaks of 128 dB) Crossover Network 1.8 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF Nominal Impedance 8Ω LF Driver Kevlar-reinforced cone, 75 mm (3 in) voice coil HF Driver 25 mm (1 in) diaphragm, polymer design, fluid-cooled HF Driver Protection SonicGuard™ HF overload protection Enclosure ABS with glass enclosure, heavily braced Attachment Two M10 points for U-bracket, M6 safety attachment point Grille Corrosion-resistant zinc-rich steel Dimensions 402 x 402 x 445 mm (15.8 x 15.8 x 17.5 in); 470 mm (18.5 in) cabinet depth; 502 mm (19.75 in) with bracket Colors Black Net Weight (each) 14.0 kg (31.0 lb), 16.8 kg (37.0 lb) with U-Bracket Shipping Weight 19.5 kg (43.0 lb) Included Accessories U-bracket (steel) Horizontal Coverage Angle (-6dB) 100° Vertical Coverage Angle (-6dB) 100° -
Description Downloads JBL PRO SCS12 2-Way Coaxial with 12″ LF Cinema Speaker DataSheet Download
