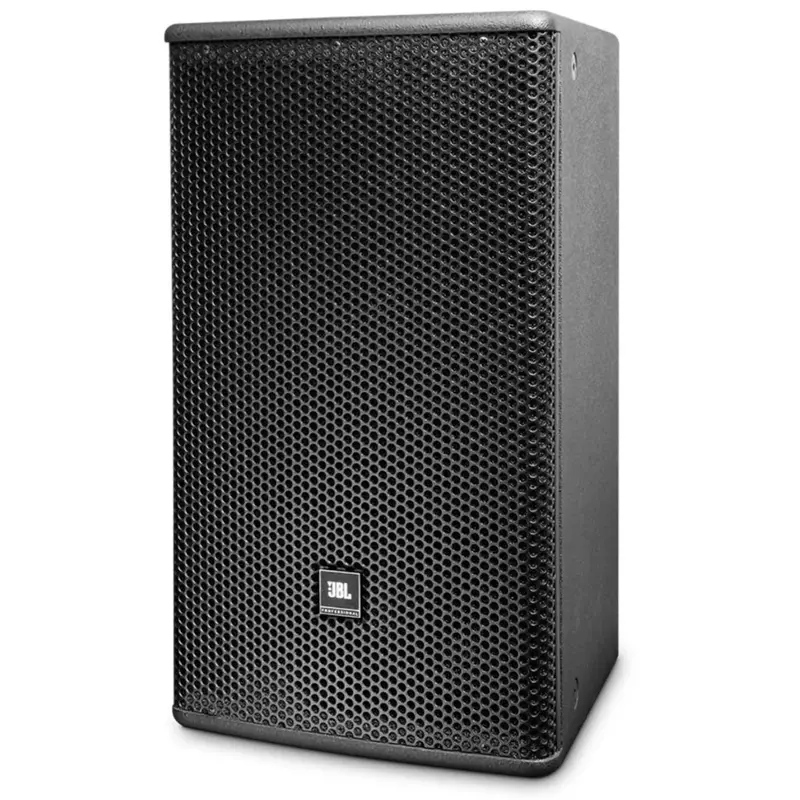

JBL AC195 | 10″ 2-Way Installation Speaker with 90°x50° Horn & 300W Power Handling
10-inch 2-Way Speaker with 90° x 50° Horn
AC195 is a compact 2-way full-range loudspeaker system comprised of one 258 mm (10 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The rotatable PT™ Progressive Transition waveguide provides 90° by 50° coverage in vertical cabinet orientation. Highslope passive crossovers minimize band overlap and well-controlled offaxis response.
The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of a MultiMount® or similar type mounting.
AC195 is part of JBL’s AE Application Engineered Series, a versatil e family of loudspeakers for a wide variety of fixed installation applications
Features
Compact enclosure
258 mm (10 in) LF transducer
90° x 50° Progressive Transition™ Field Rotatable Waveguide with a 25 mm (1 in) exit 35mm (1.5″) voice-coil compression driver
Dual Neutrik NL4 connectors plus screw terminals
Multiple attachment points for ultimate flexibility
Applications
Performing Spaces
Clubs & Bars
Houses of Worship
Multi Media Spaces
Retail & Hospitality Spaces
Presentation Suites
Educational Facilities -
Frequency Range (-10dB) 68 Hz – 20 kHz Frequency Response (±3 dB) 85 Hz – 18 kHz System Sensitivity (1W @ 1m) 95 dB Nominal Impedance 8 ohms Maximum SPL (1m) 118 dB (124 dB peak) System Power Rating 300W (1200W peak), 2 hrs (AES rated) Coverage Pattern (H x V) 90° x 50° Crossover Frequency 1.8 kHz LF Driver 10″ woofer (P/N: 5050692), 258 mm driver with 66 mm (2.5 in) voice coil HF Driver 2408H-2, 25 mm (1 in) exit / 38 mm (1.5 in) voice coil Input Connectors Dual Neutrik NL4MP + covered barrier strip terminals Enclosure Material 15 mm multi-ply hardwood plywood Grille Powder-coated 1.5 mm perforated steel with acoustically transparent foam Finish Textured black paint, White (-WH) optional Suspension Attachment 14 x M10 and 4 x M10 for wall mount; optional U, L or wall-mount brackets Dimensions (H x W x D) 535 x 310 x 329 mm (21.0 x 12.2 x 12.9 in) Net Weight (each) 13.1 kg (28.8 lbs) Nominal Driver Impedance LF: 8 ohms | HF: 8 ohms -
Description Downloads JBL AC195 10″ Two-Way Speaker with 90° x 50° Horn DataSheet Download
