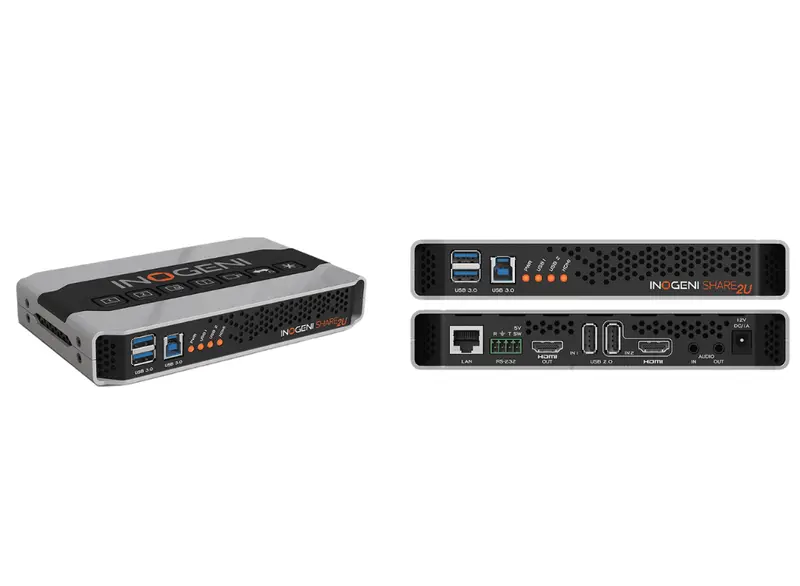

Inogeni SHARE2U Dual USB Video Mixer with PiP & Side-by-Side for HyFlex Classes & Meetings
The device can be controlled by an application on the host side using our USB HID, RS-232 or LAN interfaces. You can also use the keypad on top of the device to control it manually.You can use the Mixer feature of the SHARE 2U to embed your two video sources into one single stream. This feature can be an important asset for you if your application only supports one video interface, like Skype®, Zoom®, Webex®, GoToMeeting® and all video conferencing applications.
OEM and system developers friendly
The device may be controlled by the Control App or via an included API so you can design your own. You can read the sources status, presence, format, modify the EDID, update the firmware, etc. and ask for custom functionalities.You can also get Crestron modules in order to control the device using the LAN or serial interface. You can get a look at the interface of the Crestron module below. Visit the Software Update page under the INOGENI SHARE 2 section for more details.
Control App
The device has its own application in order to control the Mixer configuration using the USB HID or the LAN interfaces. You can also monitor the firmware versions installed on the device and the status of the inputs. You can update your device to the latest firmware using the Update menu. The C++ source code of this application is available on demand. Visit the Software Update page under the INOGENI SHARE2U section for more details.• Mixer feature: Hardware mixer into a single USB 3.0 interface
• Control interface : LAN, RS-232, USB
• Local and remote keypad.
• USB 2.0 cameras and HDMI capture
• HDMI output for preview
• Line level stereo audio support
• Digital Fluid technology: Internal frame buffers maximize frame rate with any host
• Hardware-based color space and sampling conversion
• Compatible with Windows, OSX and Linux
• 5 Year Warranty -
Feature Details Product Name INOGENI SHARE2U Main Feature 2:1 Camera Mixer (USB/HDMI to USB 3.0) Mixing Modes Picture-in-Picture, Side-by-Side Video Inputs 1x USB 2.0 + 1x USB 2.0 or 1x HDMI Input Video Resolutions Up to 1080p60 (MJPEG or H264 for USB) Video Output – HDMI 1x HDMI up to 1080p60 (mixed stream) Video Output – USB 1x USB 3.0 uncompressed up to 1080p60 USB CODEC USB 3.0: YUY2 4:2:2, USB 2.0: MJPEG USB Processing Automatic scaling, color, sampling, and frame rate conversion Audio Input 3.5mm stereo line-in, LPCM 48kHz Audio Output Embedded in HDMI and USB Control Options Keypad, LAN, USB-HID, INOGENI Remote, RS-232 IP Interface 10 Mbps, Static IP (no DHCP) USB Expansion Ports 2x USB 3.0 ports for external devices OS Compatibility Windows 7+, macOS 10.10+, Linux USB Tiers 2 Tiers (acts as tier resetter for host) Software Compatibility Teams, Zoom, Webex, Google Meet, UVC-compatible applications Dimensions 18.5 x 11.0 x 3.0 cm (7.28” x 4.33” x 1.18”) Weight 560 g (1.23 lb) Power Supply 12V (100–240 VAC to 12V/1.2A DC) Operating Temperature 0° to 45°C (32° to 113°F) Storage Temperature -40° to 105°C (-40° to 221°F) Relative Humidity 0% to 90% non-condensing UPC Code 040232633843 Origin Canada Warranty 5 years (after Aug 1, 2024) / 2 years (before) Certifications FCC, CE, RoHS, IEC62368, SoV, RCM, KC, NOM TAA-Compliant Yes Package Contents USB 3.0 cable, RS-232 adapter, power supply, international adapters -
Description Downloads Datasheet Downloads
